Befang - 1000W BBSHD

🔥 1000 W Bafang BBSHD Electric Bike Conversion Kit

Unleash peak power on demand with our high-torque Bafang BBSHD 1000 W mid-drive kit— engineered for punishing hills, heavy-duty loads, and serious e-bike builds.

📦 What’s Included

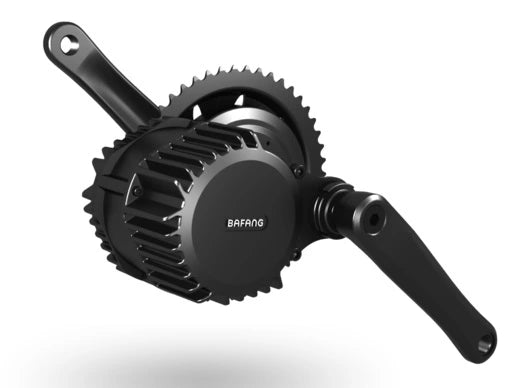

• Bafang BBSHD Mid‑Drive Motor (1000 W nominal, 48/52 V)

  • Delivers 160 N·m torque—over twice the BBS02—conquers hills & heavy terrain

  • Peak output over 1 500 W on 52 V battery and ~1 640 W on 48 V

  • Built-in 30 A, 12‑MOSFET controller with robust heat dissipation

  • Available in 68–73 mm, 100 mm, and 120 mm BB widths to fit standard & fat bikes

  • Weight: approx. 5.6 kg (12.3 lb); very quiet operation

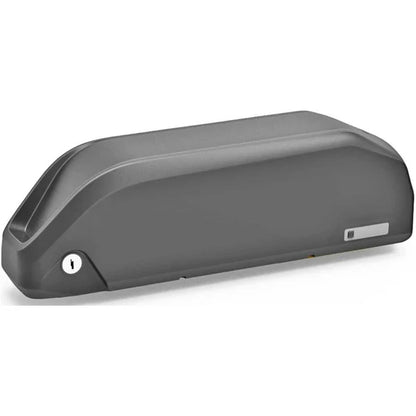

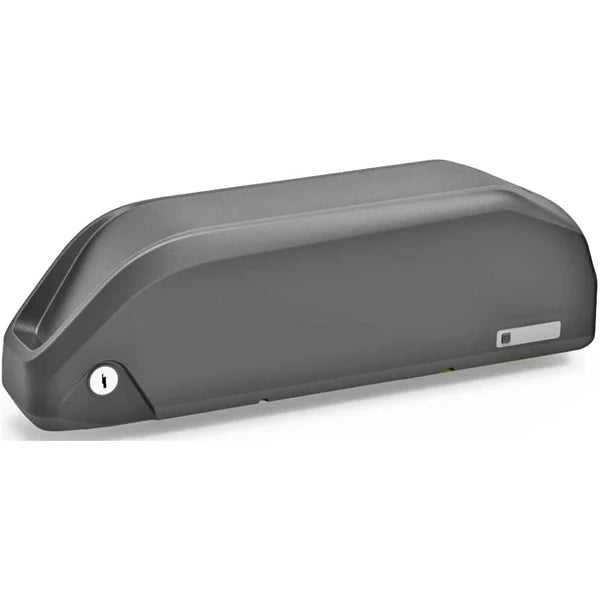

• Battery (select on listing)

  • High-capacity 48 V or 52 V pack, built with reliable Samsung cells (e.g., 35E/50E)

  • Options range from 11–20 Ah+ (19.2 Ah & higher available)

  • Includes lockable downtube mount, BMS, USB output, charger

• Battery Charger & Mounting Kit

• Crank Arms & Chain Ring

  • Stock 46 T ring (other options available), paired with rugged crank arms

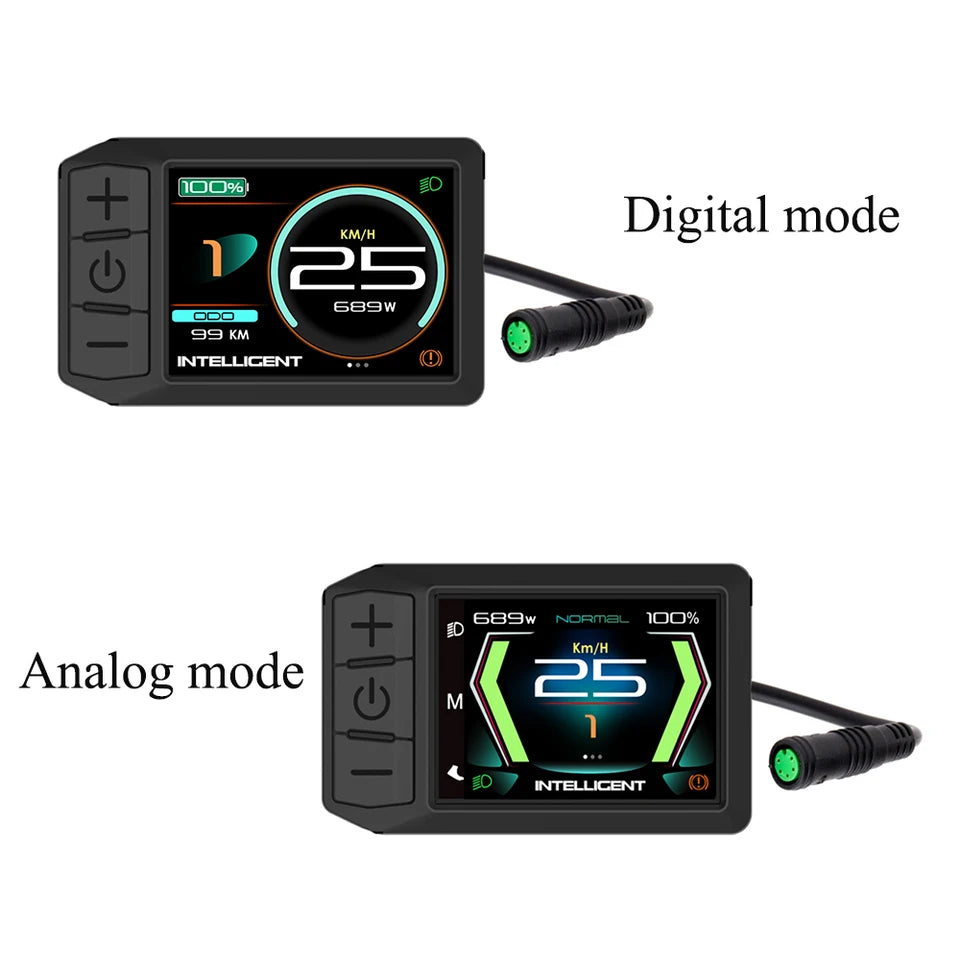

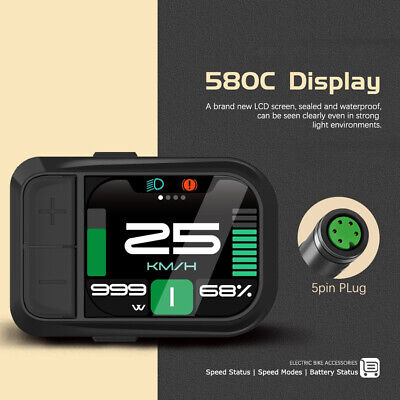

• Display: 580 C / 600 C Color Display

  • Full-featured LCD for speed, trip/odo, battery, wattage, assist levels

  • Waterproof, responsive button controls; mounts on left handlebar

• Brake Levers or Sensors, Thumb Throttle, Speed Sensor, Gear Sensor

• 1‑to‑4 Bus Wire Harness for plug-and-play connectivity

🚀 Key Benefits

1. Beast Mode Performance

   • With 160 N·m torque and up to 1 640 W peak power, this kit dominates off-road terrain, cargo hauls, and steep inclines

2. Versatile Battery Configurations

   • Choose voltages 48 V or 52 V and capacity up to 19.2 Ah+, all using premium Samsung cells for reliability and longevity

3. Display Tailored for You

   • Pick from several color controller displays (e.g. 600 C, DPC-18), offering full customization and high readability

4. Adaptable to Almost Any Bike

   • BB width options (68–120 mm), fat bike compatibility, and spacers/adapters available

5. All-Inclusive

   • Kit includes throttle, sensors, brake connectors, harness—everything’s plug-and-play.

📊 Technical Specs

🔧 Options & Upgrades

• Display Selection: Choose between 580 C, 600 C offering full readouts and customization

• Battery Capacity: From 11 Ah to 20 Ah+—pick what suits your range needs

• BB Width & Chainring Sizes: Tailor for fat bikes or compact builds; 46 T standard, other options available

✅ Why Buy from Us?

• Calgary-based since 2001 with expert installation and North American support

• All equipment shipped with warranty & parts support

• Proven in educational/solar‑car projects—trusted for performance & reliability

🚵 Ready to Dominate?

Choose your battery and display above, click Add to Cart, and upgrade to unparalleled riding power—whether on the trail, snow, or city streets.
