Surface604 - V Rook (HUB)
Surface604 - V Rook (HUB)
Low stock: 1 left
Couldn't load pickup availability
V Rook · Bafang 500W Hub · 48V 20Ah · Shimano Alivio 9-Speed · 27.5" · Step-Through

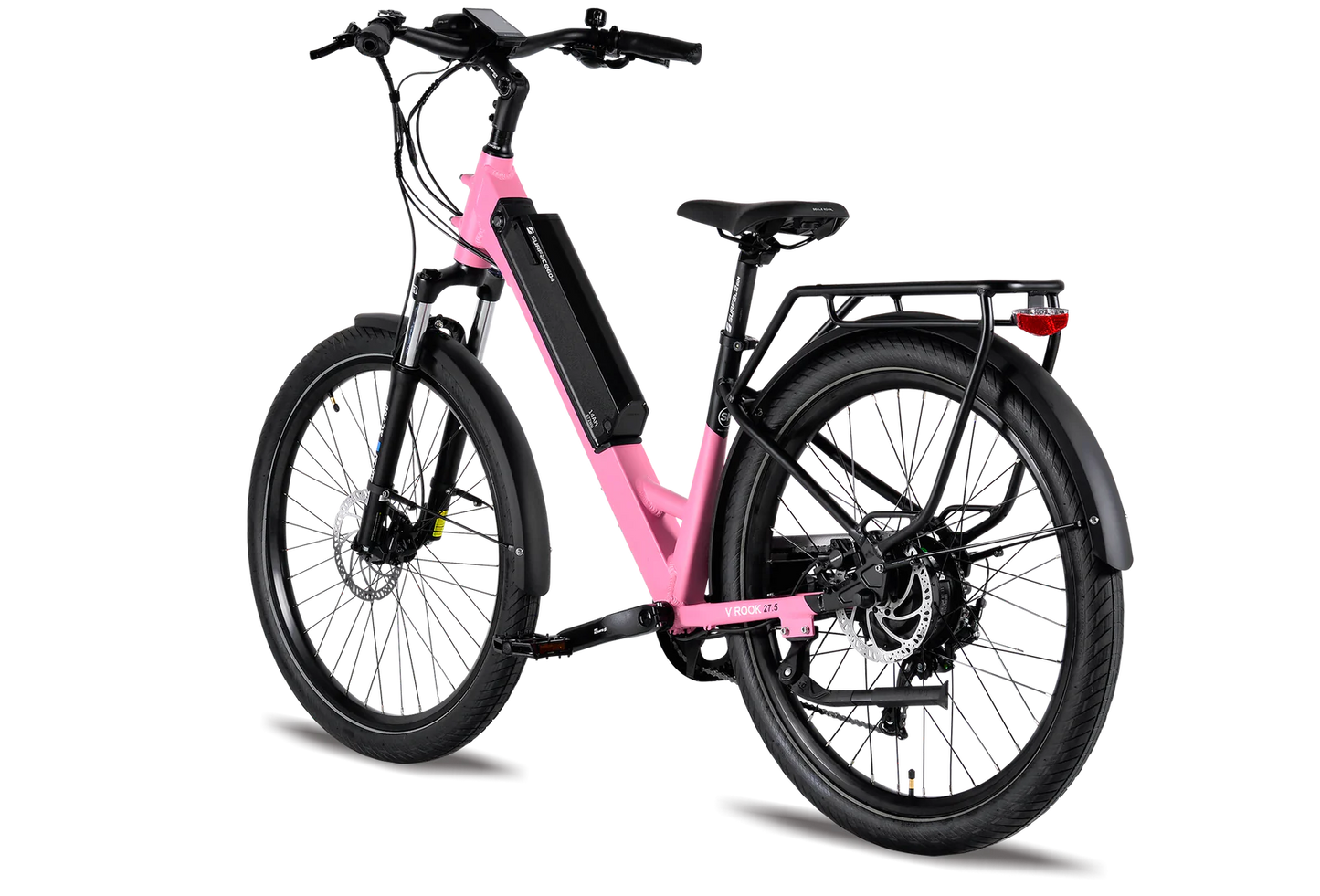

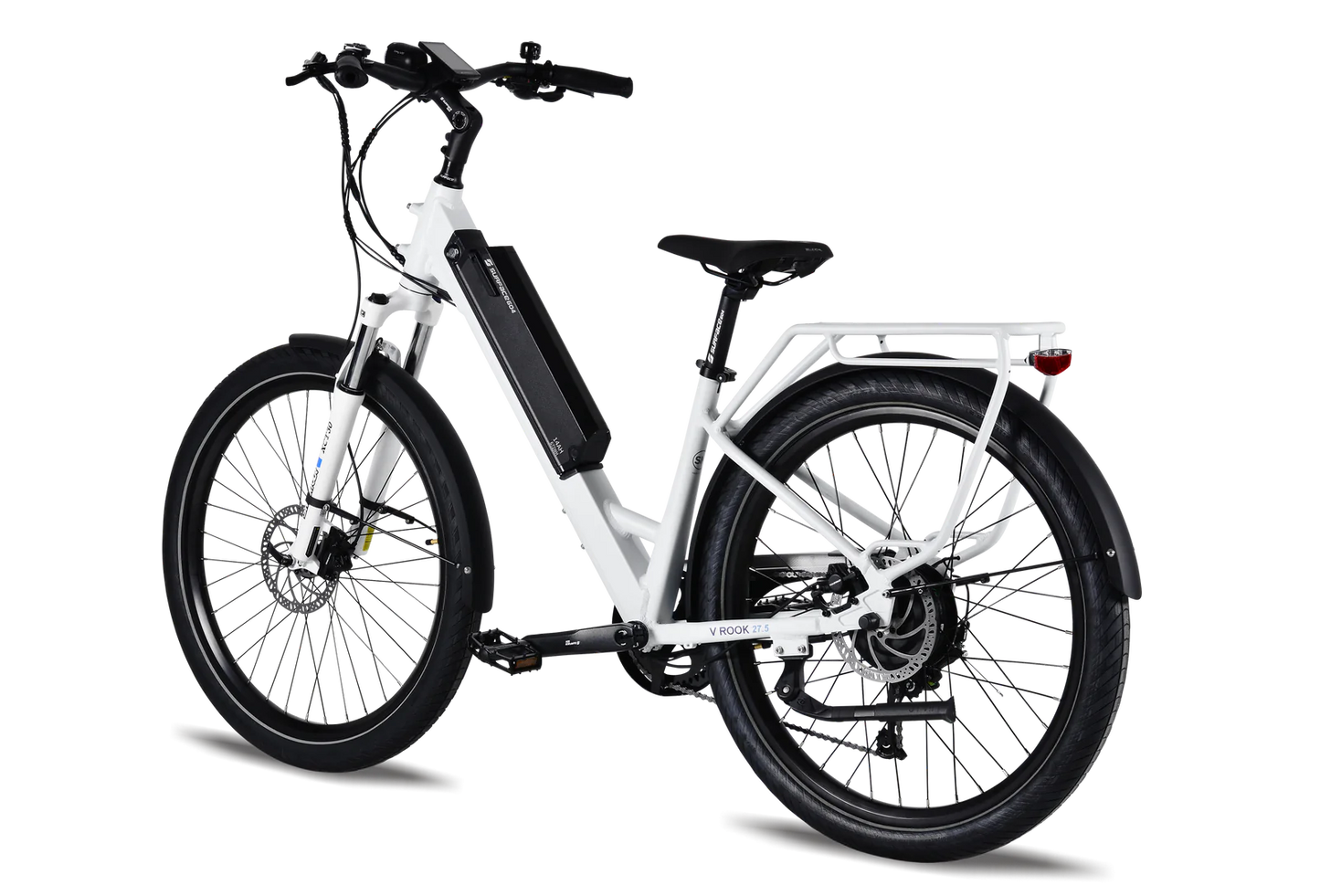

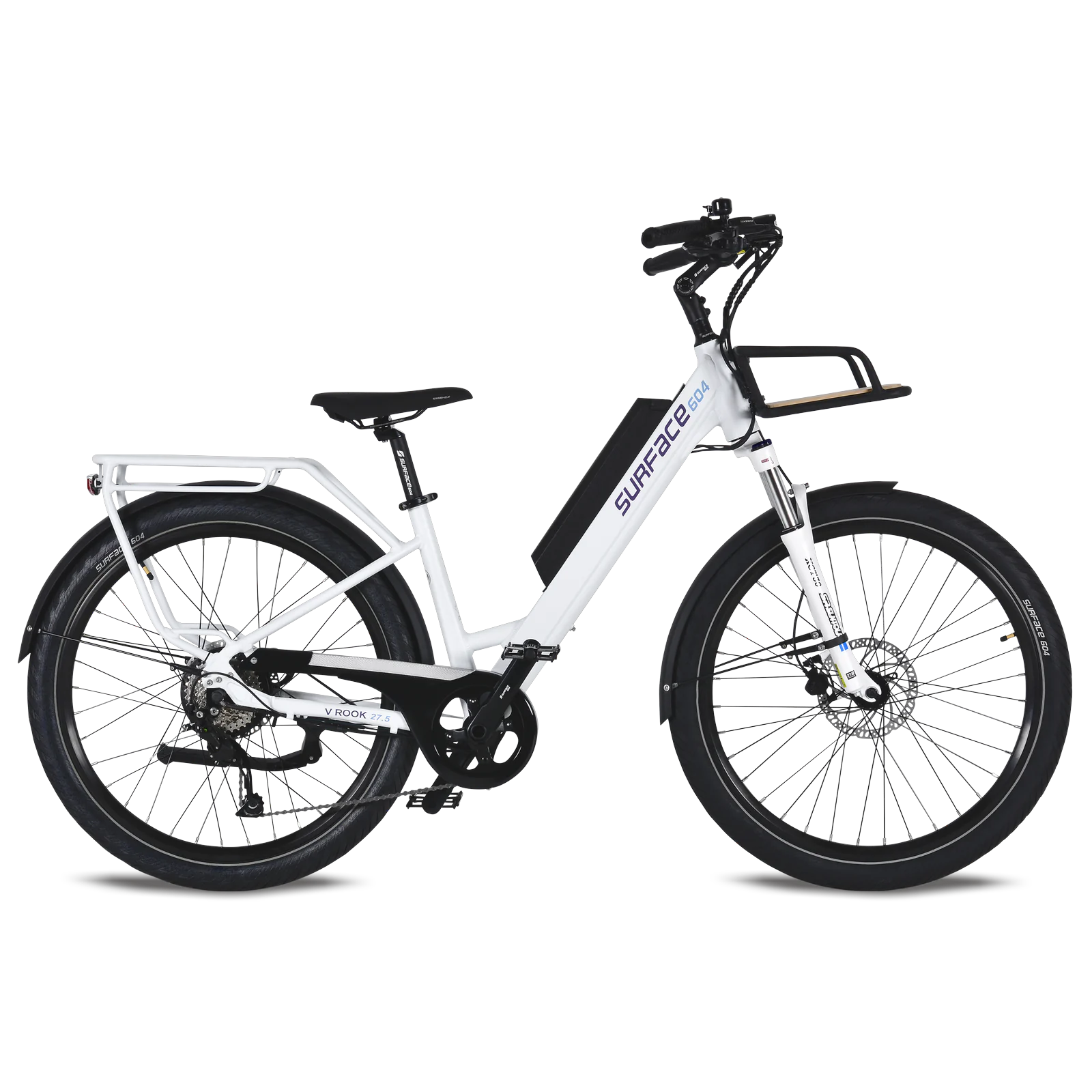

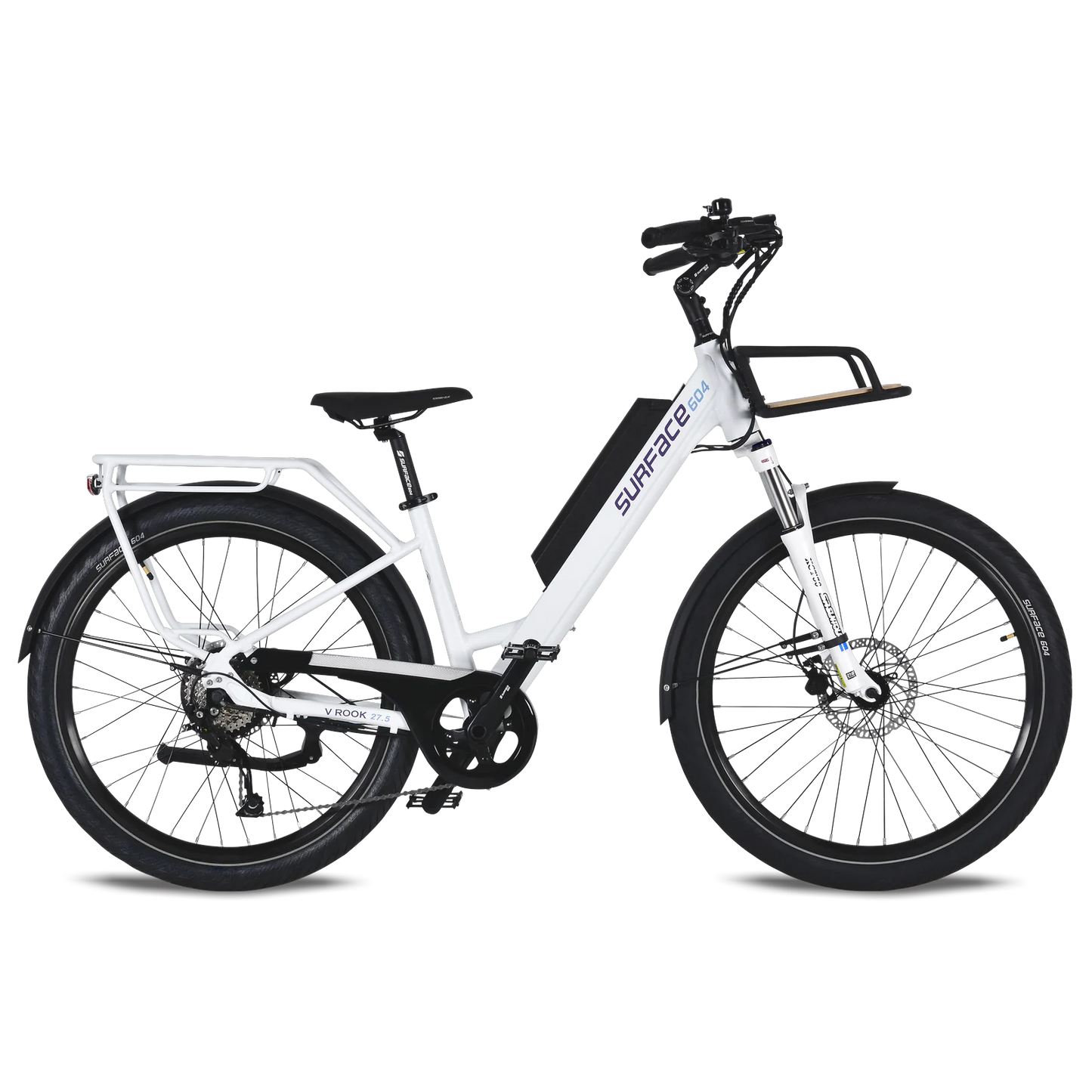

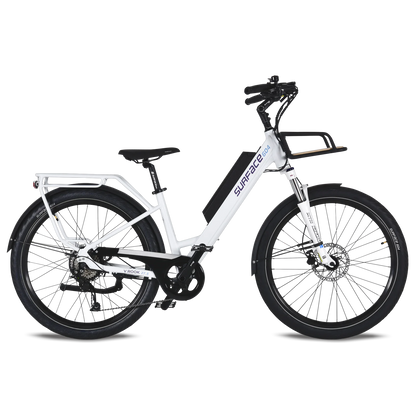

Surface 604 V Rook
All the power of the Rook in a low-step frame. Same 960 Wh battery, same dropout torque sensor, same Class 3 speed — accessible to every rider.
The Surface 604 V Rook is the step-through variant of the Rook platform — same 960 Wh battery, same Bafang 500W hub motor with dropout torque sensor, same Shimano Alivio 9-speed drivetrain, Class 3 at 45 km/h. The low-step V-shaped frame makes mounting effortless for all riders regardless of flexibility or mobility. Comes with a custom front rack (wood panel, two water bottle mounts, rated to 20 kg / 45 lbs) and welded rear rack as standard. Green Shield 3mm puncture-protection tires, 45° backsweep bars for upright comfort.
Highlights
Step-through frame — effortless mounting
The V-shaped low-step frame eliminates the need to swing a leg over a top tube — important for riders with limited hip mobility, shorter inseams, skirts/work clothes, or those carrying cargo on the racks.
Front rack with removable wood panel — standard
A custom-built front rack designed specifically for the V Rook ships in the box. Includes a removable wooden panel and two water bottle cage mounts. Rated to 20 kg / 45 lbs — haul panniers, a crate, or a bag up front.
Green Shield 3mm puncture protection
The V Rook's 27.5×2.4" tires use 3mm Green Shield technology — 40% more puncture resistant than a standard tire. More confidence commuting over glass, debris, and rough pavement.
Identical drivetrain to the Rook — every part interchangeable
Same motor, battery, controller, and drivetrain components as the standard Rook. Every spare part that fits the Rook fits the V Rook — straightforward to service and stock.
Colours
Powertrain
| Motor | Bafang 500W (peaks 750W) Geared Hub Brushless |
| Torque | 65 Nm |
| Drive mode | Dropout torque-sensing pedal assist + thumb throttle |
| Throttle | Thumb push-activated |
| Controller | Surface 604 custom 12 MOS 48V 500W 25Ah Smart Controller |
| Top speed (PAS) | 45 km/h (28 mph) · Class 3 |
| Top speed (throttle) | 32 km/h (20 mph) |
Battery & Range
| Battery | 48V 20Ah / 960 Wh — Samsung lithium-ion 21700 cells |
| Battery weight | 4.65 kg / 10 lbs |
| Certification | UL 2271 (battery) + UL 2849 (complete system) |
| Range | Up to 150 km / 90 mi (eco mode) |
| Charge time | 3–4 hours (full charge from empty) |
Electronics
| Display | Surface 604 colour LCD, 3.5", with USB charging jack |
| Front light | Büchel "Shiny 120" LED headlight |
| Rear light | Büchel LED rear light |
| Wire harness | 30Ah rated, handles up to 120A (upgraded) |
Drivetrain
| Derailleur | Shimano Alivio 9-speed |
| Cassette | Shimano 11–36T |
| Shift levers | Shimano Alivio |
| Chain | KMC 9-speed |
| Crankset | Samox 42T front sprocket |
| Bottom bracket | Samox sealed |
Brakes
| Brakes | Tektro Auriga hydraulic disc — post mount, with motor inhibitors |
| Rotors | 180mm front and rear · 2.34mm thick |
Suspension
| Fork | SR Suntour XCM30 27.5 · 80mm travel · thru-axle |
| Rear | Hardtail — no rear suspension |
Wheels & Tires
| Wheel size | 27.5" |
| Tires | 27.5" × 2.4" Green Shield · 3mm puncture protection · 40% more puncture-resistant |
| Rims | Aluminum alloy double-wall · 27.5" · 13G · 36H |
| Front hubs | Surface 604 aluminum |
Frame & Cockpit
| Frame | 6061 aluminum alloy · step-through V-shape · custom reinforced battery mounts · internal cable routing · post-mount brakes |
| Stem | Satori Up2 adjustable |
| Handlebar | Promax aluminum · 30mm rise · 45° backsweep · 710mm wide |
| Pedals | Wellgo platform die-cast |
| Saddle | Selle Royal "Essenza Plus" gel · elastomer · relaxed position · 9° adjustable |
| Seat post | 30.4mm |
| Kickstand | Adjustable heavy-duty aluminum |
Sizing
| Sizes | S/M · M/L |
| Frame size (S/M) | 17.5" · for riders 5'2"–5'7" (158–170 cm) |
| Frame size (M/L) | 19.5" · for riders 5'8"–6'6" (173–198 cm) |
| Standover (S/M) | 28.5" / 724 mm |
| Standover (M/L) | 30" / 762 mm |
| Weight capacity | 136 kg / 300 lbs |
Weight & Features
| Net weight | 27.75 kg / 61 lbs (with 20Ah battery) |
| Standard accessories | Rear rack · front rack with wood panel + 2× water bottle mounts (20 kg rated) · chainguard · kickstand · water bottle bosses · front + rear lights |
| Optional upgrade | SR Suntour NCX suspension seatpost |
| Assembly time | ~20 minutes |
| Warranty | 5-year frame · 2-year components |
| Origin | Designed in Vancouver, Canada |
Surface 604 V Rook · 48V 20Ah / 960 Wh · Bafang 500W · Shimano Alivio 9-Speed · 27.5" · Step-Through · S/M / M/L
- Description
V Rook · Bafang 500W Hub · 48V 20Ah · Shimano Alivio 9-Speed · 27.5" · Step-Through
Surface 604 V Rook
All the power of the Rook in a low-step frame. Same 960 Wh battery, same dropout torque sensor, same Class 3 speed — accessible to every rider.
$2,599.00 CAD · 20Ah only960 Wh battery capacity 45 km/h Class 3 PAS speed 27.75 kg total weight Up to 150 km — eco range · 48V 20Ah battery range · eco mode
The Surface 604 V Rook is the step-through variant of the Rook platform — same 960 Wh battery, same Bafang 500W hub motor with dropout torque sensor, same Shimano Alivio 9-speed drivetrain, Class 3 at 45 km/h. The low-step V-shaped frame makes mounting effortless for all riders regardless of flexibility or mobility. Comes with a custom front rack (wood panel, two water bottle mounts, rated to 20 kg / 45 lbs) and welded rear rack as standard. Green Shield 3mm puncture-protection tires, 45° backsweep bars for upright comfort.
Highlights
Step-through frame — effortless mounting
The V-shaped low-step frame eliminates the need to swing a leg over a top tube — important for riders with limited hip mobility, shorter inseams, skirts/work clothes, or those carrying cargo on the racks.
Front rack with removable wood panel — standard
A custom-built front rack designed specifically for the V Rook ships in the box. Includes a removable wooden panel and two water bottle cage mounts. Rated to 20 kg / 45 lbs — haul panniers, a crate, or a bag up front.
Green Shield 3mm puncture protection
The V Rook's 27.5×2.4" tires use 3mm Green Shield technology — 40% more puncture resistant than a standard tire. More confidence commuting over glass, debris, and rough pavement.
Identical drivetrain to the Rook — every part interchangeable
Same motor, battery, controller, and drivetrain components as the standard Rook. Every spare part that fits the Rook fits the V Rook — straightforward to service and stock.
Colours
BlackPowertrain
| Motor | Bafang 500W (peaks 750W) Geared Hub Brushless |
| Torque | 65 Nm |
| Drive mode | Dropout torque-sensing pedal assist + thumb throttle |
| Throttle | Thumb push-activated |
| Controller | Surface 604 custom 12 MOS 48V 500W 25Ah Smart Controller |
| Top speed (PAS) | 45 km/h (28 mph) · Class 3 |
| Top speed (throttle) | 32 km/h (20 mph) |
Battery & Range
| Battery | 48V 20Ah / 960 Wh — Samsung lithium-ion 21700 cells |
| Battery weight | 4.65 kg / 10 lbs |
| Certification | UL 2271 (battery) + UL 2849 (complete system) |
| Range | Up to 150 km / 90 mi (eco mode) |
| Charge time | 3–4 hours (full charge from empty) |
Electronics
| Display | Surface 604 colour LCD, 3.5", with USB charging jack |
| Front light | Büchel "Shiny 120" LED headlight |
| Rear light | Büchel LED rear light |
| Wire harness | 30Ah rated, handles up to 120A (upgraded) |
Drivetrain
| Derailleur | Shimano Alivio 9-speed |
| Cassette | Shimano 11–36T |
| Shift levers | Shimano Alivio |
| Chain | KMC 9-speed |
| Crankset | Samox 42T front sprocket |
| Bottom bracket | Samox sealed |
Brakes
| Brakes | Tektro Auriga hydraulic disc — post mount, with motor inhibitors |
| Rotors | 180mm front and rear · 2.34mm thick |
Suspension
| Fork | SR Suntour XCM30 27.5 · 80mm travel · thru-axle |
| Rear | Hardtail — no rear suspension |
Wheels & Tires
| Wheel size | 27.5" |
| Tires | 27.5" × 2.4" Green Shield · 3mm puncture protection · 40% more puncture-resistant |
| Rims | Aluminum alloy double-wall · 27.5" · 13G · 36H |
| Front hubs | Surface 604 aluminum |
Frame & Cockpit
| Frame | 6061 aluminum alloy · step-through V-shape · custom reinforced battery mounts · internal cable routing · post-mount brakes |
| Stem | Satori Up2 adjustable |
| Handlebar | Promax aluminum · 30mm rise · 45° backsweep · 710mm wide |
| Pedals | Wellgo platform die-cast |
| Saddle | Selle Royal "Essenza Plus" gel · elastomer · relaxed position · 9° adjustable |
| Seat post | 30.4mm |
| Kickstand | Adjustable heavy-duty aluminum |
Sizing
| Sizes | S/M · M/L |
| Frame size (S/M) | 17.5" · for riders 5'2"–5'7" (158–170 cm) |
| Frame size (M/L) | 19.5" · for riders 5'8"–6'6" (173–198 cm) |
| Standover (S/M) | 28.5" / 724 mm |
| Standover (M/L) | 30" / 762 mm |
| Weight capacity | 136 kg / 300 lbs |
Weight & Features
| Net weight | 27.75 kg / 61 lbs (with 20Ah battery) |
| Standard accessories | Rear rack · front rack with wood panel + 2× water bottle mounts (20 kg rated) · chainguard · kickstand · water bottle bosses · front + rear lights |
| Optional upgrade | SR Suntour NCX suspension seatpost |
| Assembly time | ~20 minutes |
| Warranty | 5-year frame · 2-year components |
| Origin | Designed in Vancouver, Canada |
Surface 604 V Rook · 48V 20Ah / 960 Wh · Bafang 500W · Shimano Alivio 9-Speed · 27.5" · Step-Through · S/M / M/L
