Cargo Rack · Rear · DoubleTruss 3D · 25 kg · KLICKfix Rackpack · Dual Rail · Alloy 6061

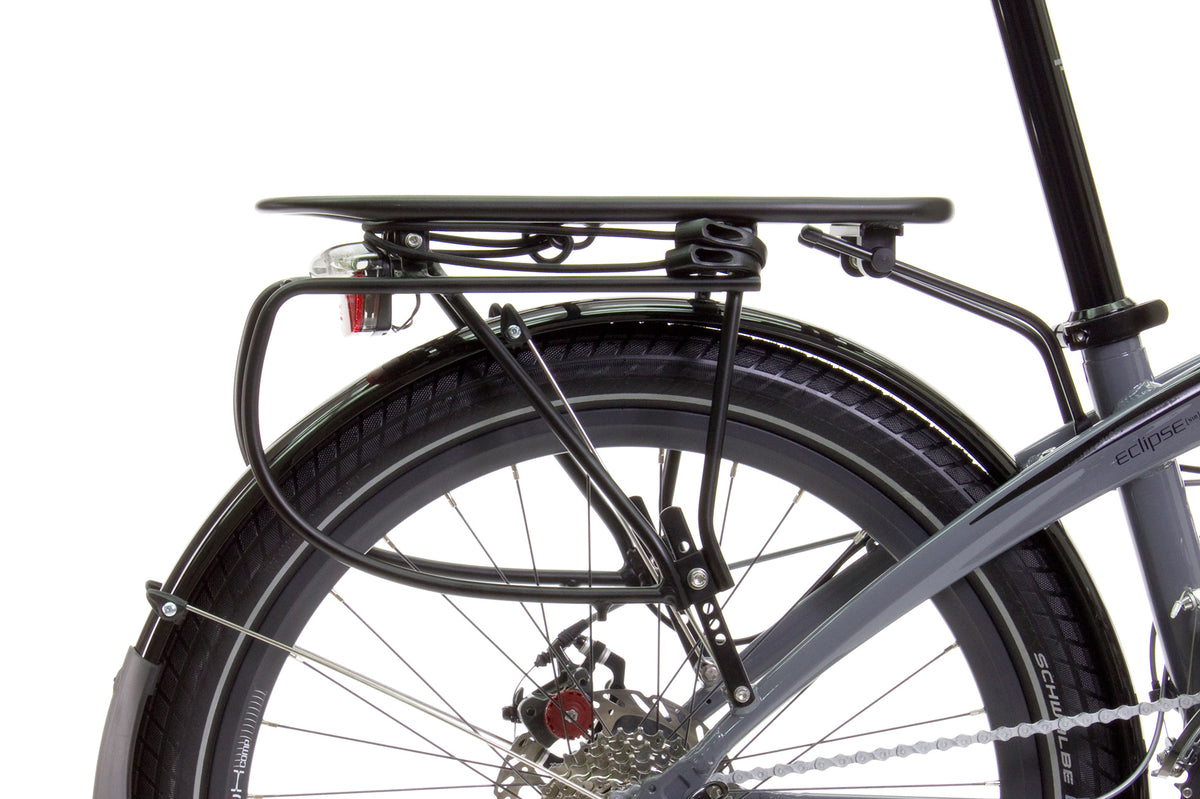

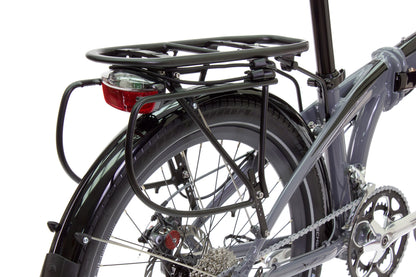

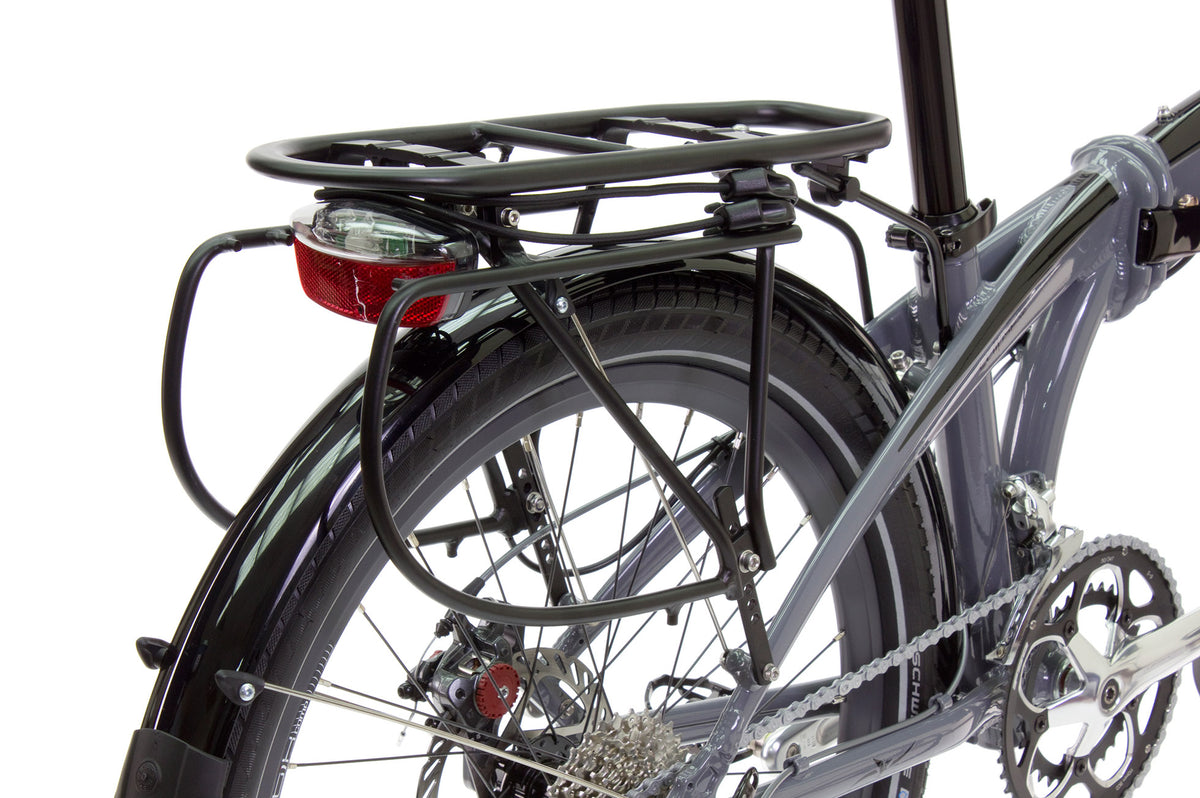

Tern Cargo Rack
A high-capacity rear rack for Tern folding bikes — DoubleTruss 3D structure, 25 kg capacity, dual-rail pannier system with heel clearance design, SideStrap anti-roll, KLICKfix Rackpack compatibility, and integrated rear light mount with internal cable routing.
The Tern Cargo Rack is a full-featured rear rack engineered around the geometry of Tern folding bikes — where rear rack placement, heel clearance, and fold compatibility are all tighter constraints than on a standard bicycle. The DoubleTruss 3D structure uses thick-gauge 6061 aluminium in a three-dimensional truss pattern to achieve rack rigidity without excess weight. Dual rails — upper and lower — accommodate both full-sized panniers and KLICKfix Rackpack baskets and trunk bags simultaneously or interchangeably. The SideStrap anti-roll system anchors panniers against rotation. An integrated light and reflector mount with internal cable routing keeps the rear end clean.
Highlights
DoubleTruss 3D — rigid structure, controlled weight
The DoubleTruss 3D design builds the rack structure as a three-dimensional truss rather than a flat ladder frame. The additional depth adds torsional stiffness — resistance to the twisting forces a heavy pannier load introduces. Thick-gauge 6061 aluminium throughout; the rack doesn't flex when loaded.
Dual-rail system — upper and lower pannier attachment
Two sets of rails — upper and lower — give panniers two hook attachment points rather than one, and allow different sized bags to be positioned at the correct height. Full-sized panniers and KLICKfix Rackpack baskets can both run on the dual-rail system, giving flexibility across cargo types.
Lower rails — heel clearance on folding bikes
Rear rack positioning on folding bikes often places rails closer to the rider's heel than on full-size bikes. The lower rails on the Cargo Rack are positioned to maximise heel clearance — reducing the chance of heel strike on loaded panniers during the pedal stroke.

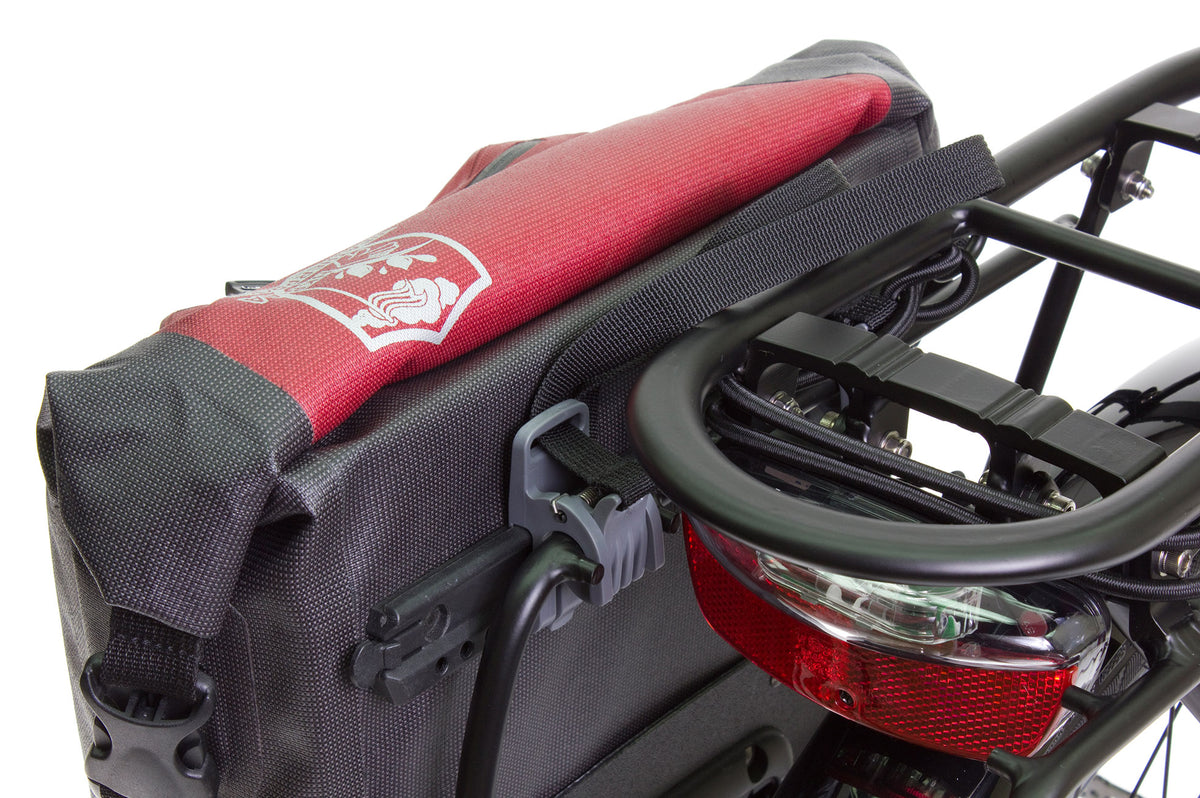

SideStrap anti-roll — panniers stay put
The SideStrap system provides an anchor point that prevents panniers from rotating around the rail under load — a common issue on racks without an anti-roll mechanism. Loaded panniers shift their centre of gravity as contents settle; SideStrap keeps them upright and stable regardless.

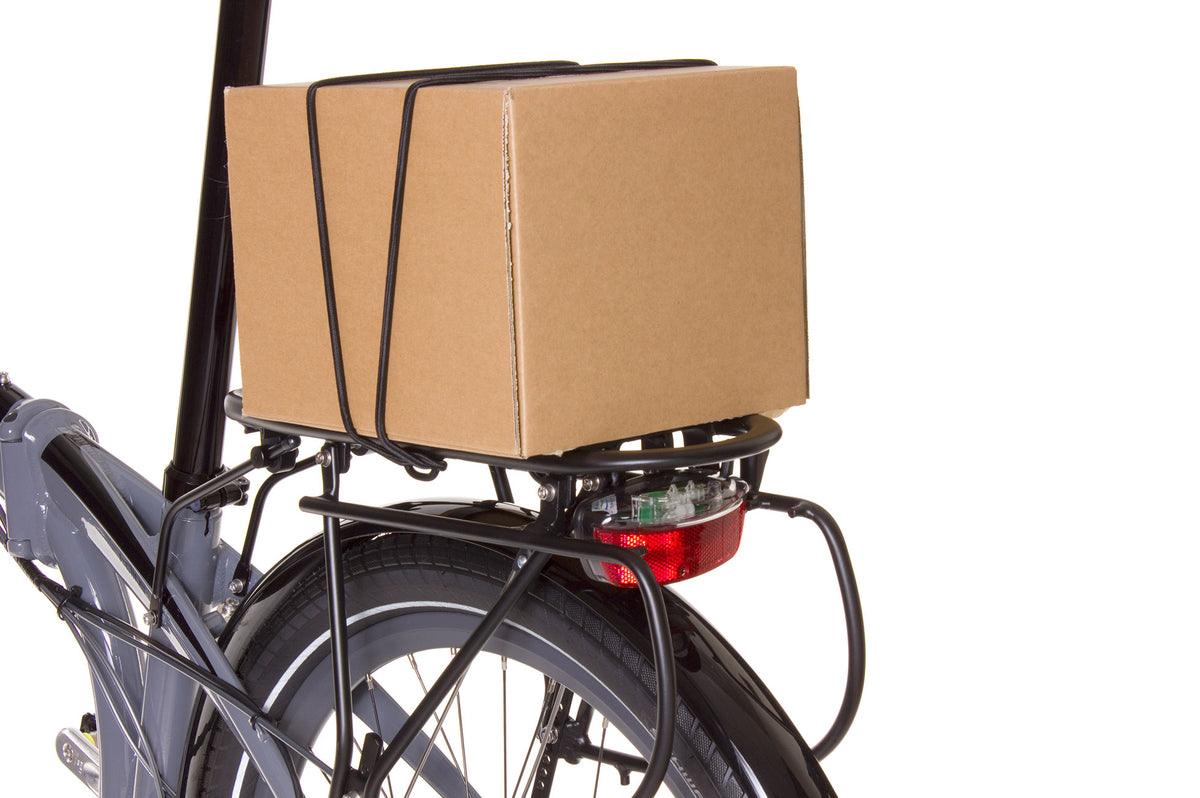

KLICKfix Rackpack compatible — baskets and trunk bags
The rack platform is KLICKfix Rackpack compatible — Tern's Dry Goods Bag Gen 1, Kontti Basket Gen 1, and other KLICKfix Rackpack accessories clip directly on without straps. Switch between pannier and basket setups without tools or re-threading.

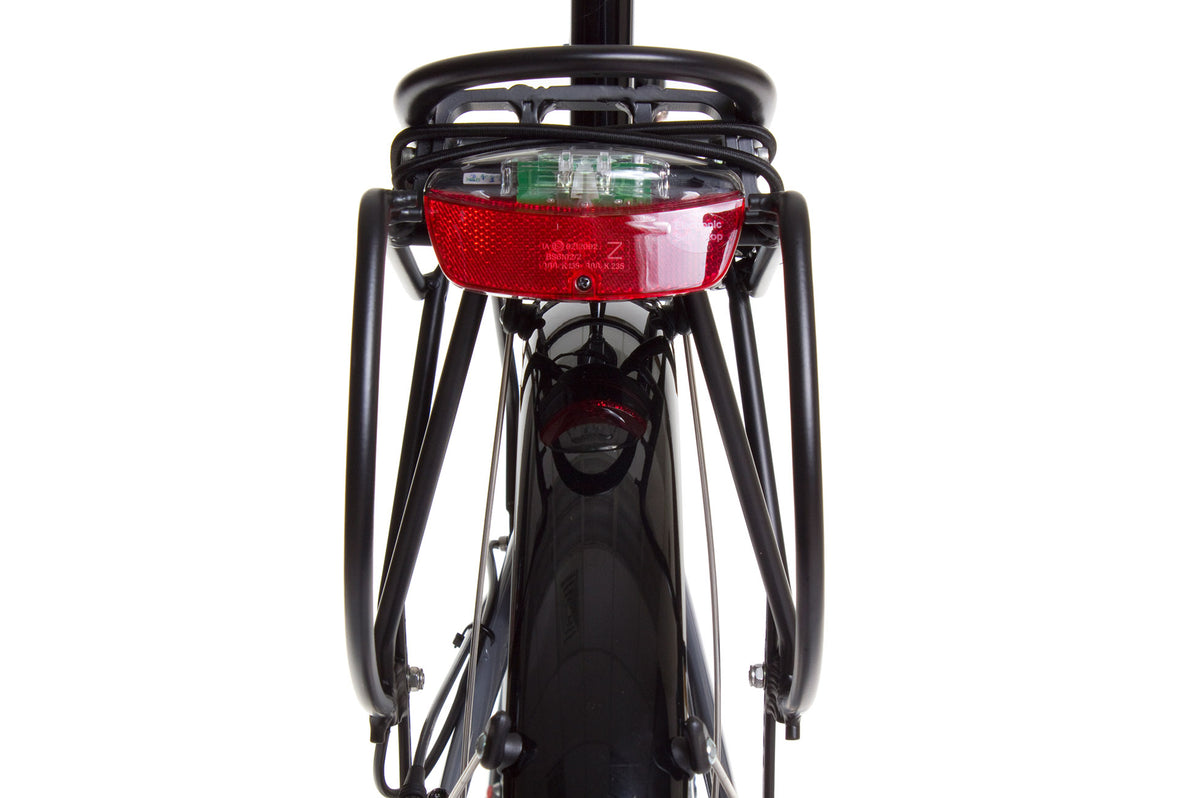

Integrated light mount — internal cable routing
A dedicated rear light and reflector mount is built into the rack structure. Cable routing runs internally — no exposed wires along the rack body. Cleaner appearance and less risk of cable snagging on panniers or cargo during loading and unloading.
Adjustable height clearance
The rack height can be adjusted to accommodate different tyre profiles and frame geometries across compatible Tern folding bike models. Verify fit via Tern's compatibility checker — height adjustment range is finite and must suit the specific frame.
Specifications
| Brand | Tern |
| Model | Cargo Rack |
| Position | Rear rack |
| Load capacity | 25 kg (55 lb) |
| Rack weight | 0.94 kg (2.1 lb) |
| Material | Aluminium 6061 — DoubleTruss 3D structure |
| Dimensions | 445 × 180 × 250 mm (17.5 × 7.1 × 9.8 in) |
| Rail system | Dual rail — upper and lower, heel clearance design |
| Anti-roll | SideStrap system |
| Bag compatibility | Full-size panniers · KLICKfix Rackpack baskets · trunk bags |
| Recommended bags | Dry Goods Bag Gen 1 · Kontti Basket Gen 1 |
| Light mount | Integrated — internal cable routing |
| Height | Adjustable clearance |
| Compatibility | Tern folding bikes — verify with Tern compatibility checker |
Tern Cargo Rack · Rear · DoubleTruss 3D · 25 kg · KLICKfix Rackpack · Dual Rail · #6061
- Description
Cargo Rack · Rear · DoubleTruss 3D · 25 kg · KLICKfix Rackpack · Dual Rail · Alloy 6061
Tern Cargo Rack
A high-capacity rear rack for Tern folding bikes — DoubleTruss 3D structure, 25 kg capacity, dual-rail pannier system with heel clearance design, SideStrap anti-roll, KLICKfix Rackpack compatibility, and integrated rear light mount with internal cable routing.
$138 CADTern folding bikes only — rear rack. The Cargo Rack mounts to the rear of compatible Tern folding bikes. It is not a front rack. Verify your specific model using Tern's compatibility checker before ordering. 25 kg load capacity (55 lb) Rear rack DoubleTruss 3D 0.94 kg rack weight
The Tern Cargo Rack is a full-featured rear rack engineered around the geometry of Tern folding bikes — where rear rack placement, heel clearance, and fold compatibility are all tighter constraints than on a standard bicycle. The DoubleTruss 3D structure uses thick-gauge 6061 aluminium in a three-dimensional truss pattern to achieve rack rigidity without excess weight. Dual rails — upper and lower — accommodate both full-sized panniers and KLICKfix Rackpack baskets and trunk bags simultaneously or interchangeably. The SideStrap anti-roll system anchors panniers against rotation. An integrated light and reflector mount with internal cable routing keeps the rear end clean.
Highlights
DoubleTruss 3D — rigid structure, controlled weight
The DoubleTruss 3D design builds the rack structure as a three-dimensional truss rather than a flat ladder frame. The additional depth adds torsional stiffness — resistance to the twisting forces a heavy pannier load introduces. Thick-gauge 6061 aluminium throughout; the rack doesn't flex when loaded.
Dual-rail system — upper and lower pannier attachment
Two sets of rails — upper and lower — give panniers two hook attachment points rather than one, and allow different sized bags to be positioned at the correct height. Full-sized panniers and KLICKfix Rackpack baskets can both run on the dual-rail system, giving flexibility across cargo types.
Lower rails — heel clearance on folding bikes
Rear rack positioning on folding bikes often places rails closer to the rider's heel than on full-size bikes. The lower rails on the Cargo Rack are positioned to maximise heel clearance — reducing the chance of heel strike on loaded panniers during the pedal stroke.
SideStrap anti-roll — panniers stay put
The SideStrap system provides an anchor point that prevents panniers from rotating around the rail under load — a common issue on racks without an anti-roll mechanism. Loaded panniers shift their centre of gravity as contents settle; SideStrap keeps them upright and stable regardless.
KLICKfix Rackpack compatible — baskets and trunk bags
The rack platform is KLICKfix Rackpack compatible — Tern's Dry Goods Bag Gen 1, Kontti Basket Gen 1, and other KLICKfix Rackpack accessories clip directly on without straps. Switch between pannier and basket setups without tools or re-threading.
Integrated light mount — internal cable routing
A dedicated rear light and reflector mount is built into the rack structure. Cable routing runs internally — no exposed wires along the rack body. Cleaner appearance and less risk of cable snagging on panniers or cargo during loading and unloading.
Adjustable height clearance
The rack height can be adjusted to accommodate different tyre profiles and frame geometries across compatible Tern folding bike models. Verify fit via Tern's compatibility checker — height adjustment range is finite and must suit the specific frame.
Specifications
| Brand | Tern |
| Model | Cargo Rack |
| Position | Rear rack |
| Load capacity | 25 kg (55 lb) |
| Rack weight | 0.94 kg (2.1 lb) |
| Material | Aluminium 6061 — DoubleTruss 3D structure |
| Dimensions | 445 × 180 × 250 mm (17.5 × 7.1 × 9.8 in) |
| Rail system | Dual rail — upper and lower, heel clearance design |
| Anti-roll | SideStrap system |
| Bag compatibility | Full-size panniers · KLICKfix Rackpack baskets · trunk bags |
| Recommended bags | Dry Goods Bag Gen 1 · Kontti Basket Gen 1 |
| Light mount | Integrated — internal cable routing |
| Height | Adjustable clearance |
| Compatibility | Tern folding bikes — verify with Tern compatibility checker |
Tern Cargo Rack · Rear · DoubleTruss 3D · 25 kg · KLICKfix Rackpack · Dual Rail · #6061
