Tern Eclipse X22 – High-Performance Folding Road Bike

Full-Sized Speed Meets Folding Convenience

The Tern Eclipse X22 is engineered for riders seeking the performance of a full-sized road bike with the versatility of a folding frame. With 26" wheels, a race-tuned geometry, and premium components, it delivers an exceptional riding experience without compromising on portability.

🔑 Key Features

• Shimano Ultegra / 105 Drivetrain
  Offers 22 speeds for a wide gear range, suitable for various terrains.

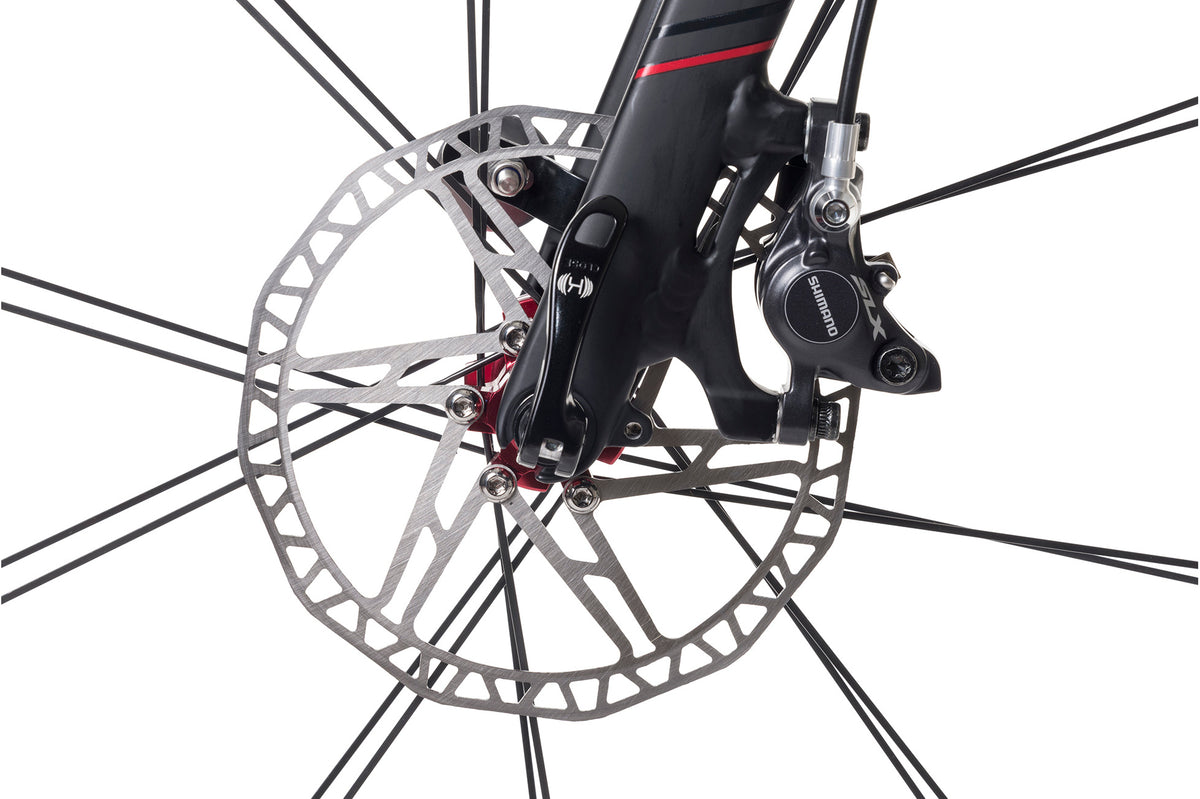

• Shimano Hydraulic Disc Brakes
  Ensure consistent and powerful braking performance in all weather conditions.

• Kinetix Pro X 26” Wheels
  Hand-built with straight-pull Sapim spokes for a fast and responsive ride.

• Adjustable VRO Handlebar Stem
  Allows for fine-tuning of the riding position to enhance comfort and control.

• Schwalbe Kojak Road Tires
  High-performance tires with puncture protection for a smooth ride.

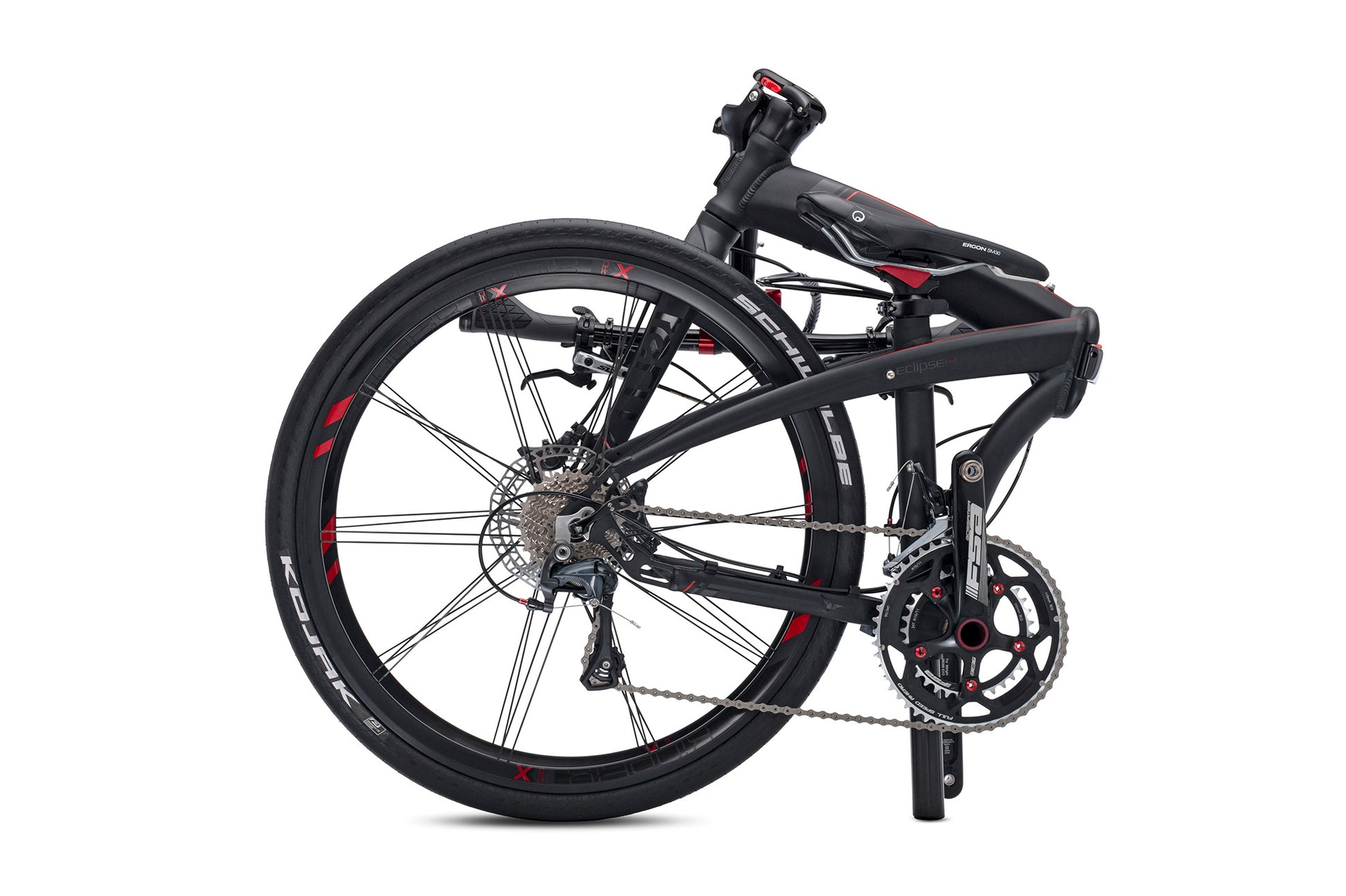

• Compact Folding Design
  Folds down in 10 seconds to dimensions of 42 × 89 × 81 cm (16.5" × 35" × 31.9"), facilitating easy storage and transport.

📊 Specifications

• Frame: Tern Eclipse, hydroformed 7005-Aluminum with smooth TIG welding, OCL+ joint, 3 patented technologies

• Fork: Tarsus, 6061-Aluminum, hydroformed

• Handlepost: Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 250 mm

• Stem: Syntace VRO, adjustable

• Handlebar: Kinetix Pro X, 7050-Aluminum, multi-stage butted

• Grips: Ergon GX1 Leichtbau

• Saddle: Ergon SMC30 Pro, TiNox Rails

• Seatpost: Stasis by Syntace, 7050-Aluminum, hard-anodized

• Brakes: Shimano SLX, hydraulic disc

• Brake Levers: Shimano SLX, hydraulic

• Wheels: Kinetix Pro X Disc, Paired Spoke Technology, straight-pull design, 20H, asymmetric flange

• Tires: Schwalbe Kojak, 35-559, foldable, puncture protection, 95 psi

• Shifters: Shimano Ultegra trigger, 2 × 11-speed

• Front Derailleur: Shimano 105

• Rear Derailleur: Shimano Ultegra

• Crankset: FSA Gossamer Pro, 50/34T, BB386 oversized aluminum spindle

• Cassette: Shimano 105, 11-28T, 11-speed

• Chain: Shimano 105, 11-speed

• Bottom Bracket: FSA MegaEVO, BB386

• Pedals: MKS UB-LITE EZY, QR

• Weight: 11.3 kg (24.9 lb)

• Folding Size: 42 × 89 × 81 cm (16.5" × 35" × 31.9")

• Folding Time: 10 seconds

• Suggested Rider Height: 148 – 195 cm (4'10" – 6'5")

• Max Gross Vehicle Weight: 120 kg (264.6 lb)

• Max Rider Weight: 105 kg (231.5 lb)

🎯 Ideal For

• Urban Commuters: Seeking a high-performance bike that can be easily stored in small living spaces or offices.

• Traveling Cyclists: Who require a full-sized bike experience with the convenience of portability.

• Fitness Enthusiasts: Looking for a versatile bike that offers both speed and comfort for longer rides.

The Tern Eclipse X22 combines the speed and performance of a traditional road bike with the practicality of a folding design, making it a top choice for riders who refuse to compromise.
