HSD P5i · Gen 2 · 1×5 IGH · Gates Belt · Bosch Performance Line · Smart System
HSD P5i
The clean, quiet HSD — Gates carbon belt drive and Shimano Nexus 5-speed hub for a virtually maintenance-free compact cargo ride.
The HSD P5i is the low-maintenance step-up in the HSD lineup. It shares the same compact folding frame, Bosch Performance Line motor, Smart System connectivity, and 80 kg rear rack as the P10 — but replaces the chain drivetrain with a Gates Carbon Drive CDX belt and Shimano Nexus INTER-5E internally geared hub. The result is a virtually grease-free, silent drivetrain that shifts at any speed and requires almost no upkeep. Upgraded to Shimano hydraulic disc brakes too. If you commute daily and want to forget your drivetrain exists, this is the HSD to get.
Highlights
Gates Carbon Drive CDX belt — zero maintenance
No chain, no grease, no lube — ever. The Gates CDX carbon belt is silent, clean, rust-proof, and dramatically outlasts any chain. Paired with the Shimano Nexus hub, it's the closest thing to a maintenance-free drivetrain on a compact cargo bike.
Shimano Nexus INTER-5E — 5-speed IGH
The Nexus INTER-5E is Shimano's e-bike specific internally geared hub — 5 evenly spaced gears that shift smoothly at any speed or cadence, even at a standstill. No missed shifts, no derailleurs to knock out of alignment.
Bosch Performance Line — 75 Nm, 340% assist
The Bosch Performance Line via Smart System delivers 75 Nm of torque and 340% pedal assist — responsive and dynamic, tuned for a more engaging riding feel whether loaded or light.
Bosch Smart System — Intuvia 100 + Flow app
Detachable Intuvia 100 display with LED remote connects to the Bosch eBike Flow app for over-the-air updates, eBike Lock, ride mode customization, and more. Optional lock and alarm available.
Shimano hydraulic disc brakes — 180mm/160mm
Upgraded to Shimano hydraulic disc brakes (vs Tektro on the P10) with 180mm front and 160mm rear rotors for confident, consistent stopping in all weather and under all loads.

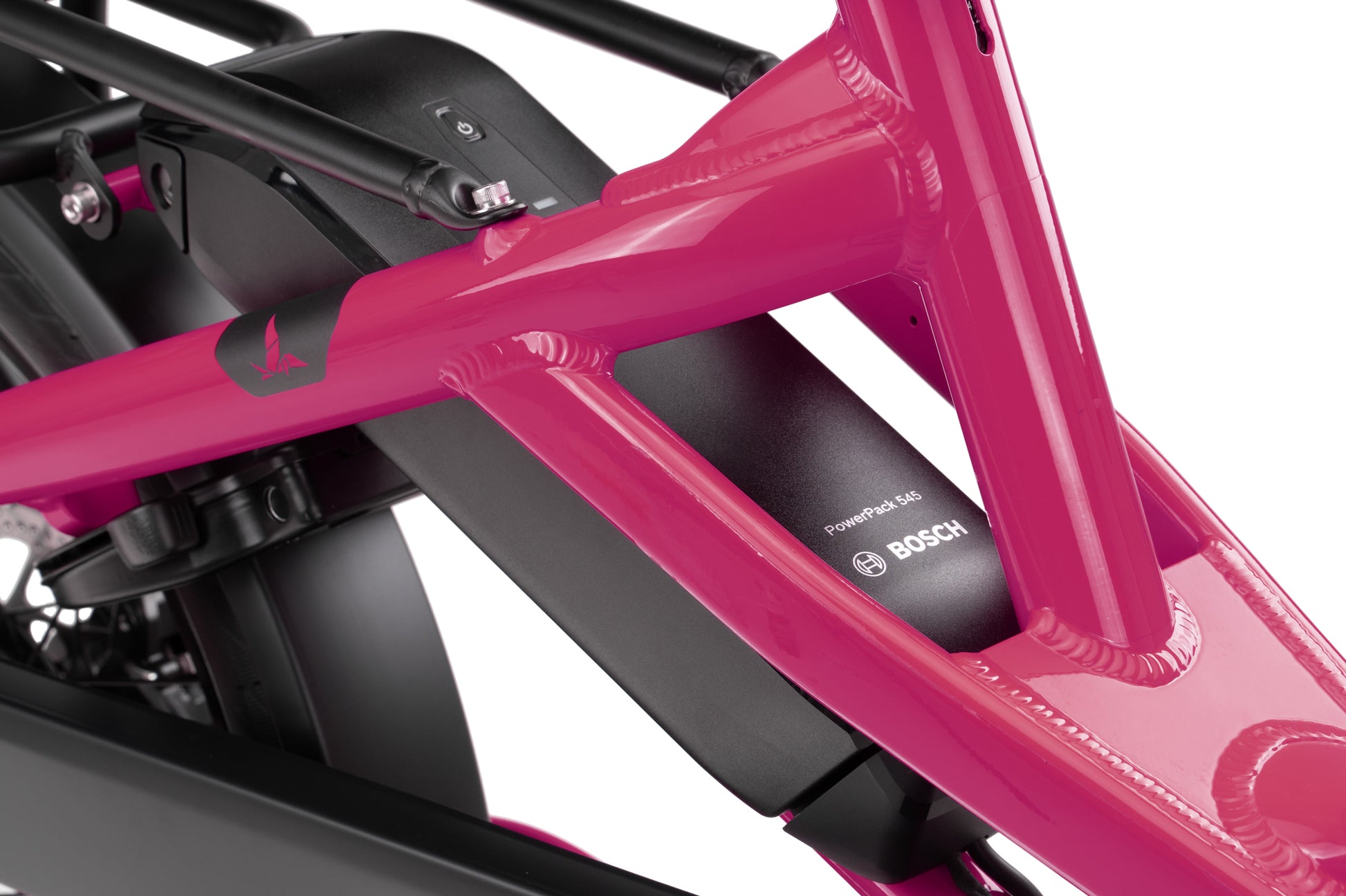

545 Wh battery — up to 800 Wh with upgrade
Ships with a 545 Wh Bosch Smart System PowerPack for up to 121 km of range. Compatible with the larger 800 Wh Smart System battery for extended range. Not dual-battery capable.
180 kg GVW — EFBE Tri-Test approved
Frame and fork EFBE Tri-Test approved to 180 kg gross vehicle weight — carries one adult passenger or a substantial cargo load with full structural confidence.

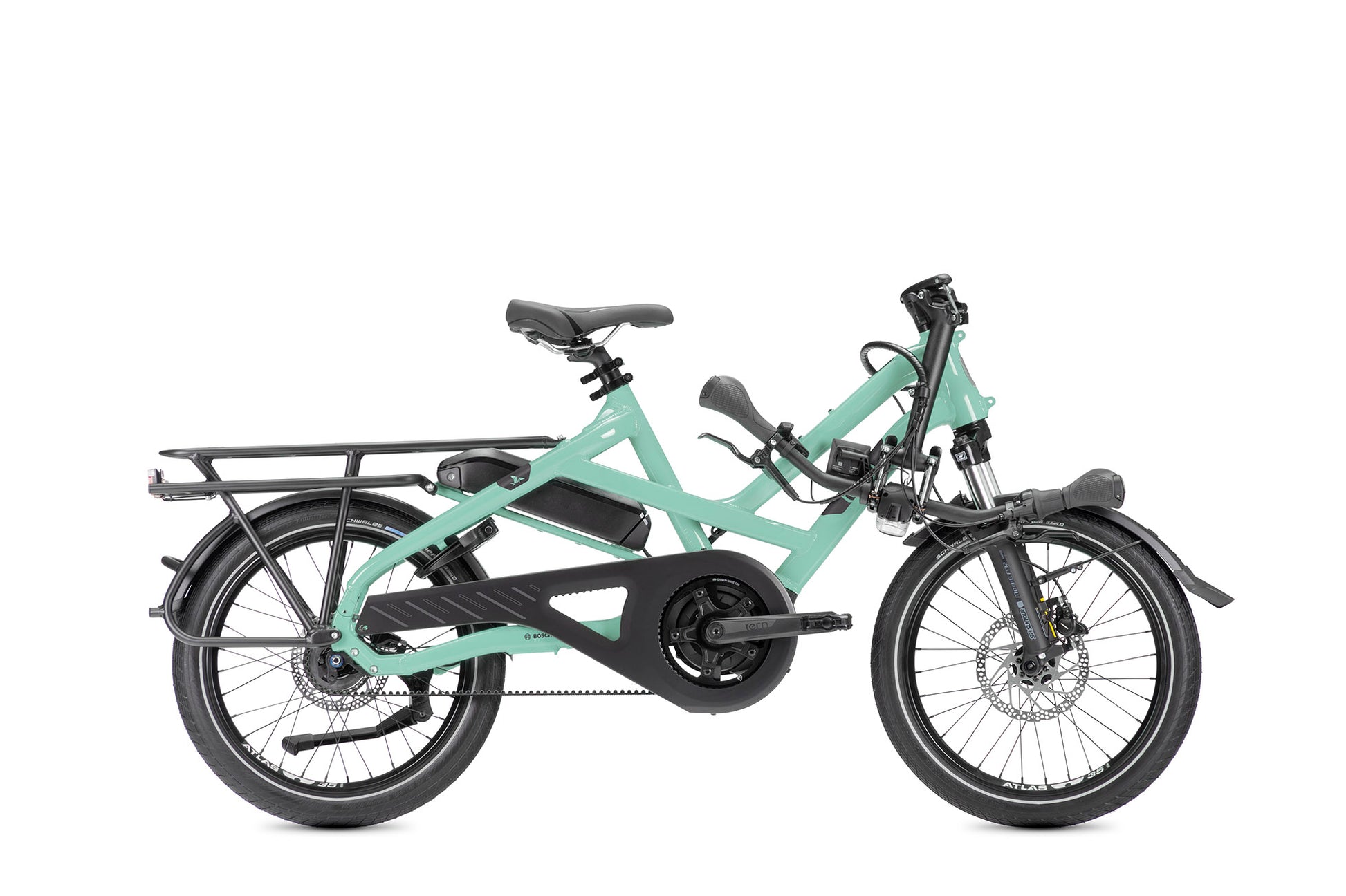

Folds in 5 seconds — 165×39.5×87 cm
Same compact GSD-family fold — 165×39.5×87 cm in ~5 seconds. Fits in lifts, vans, and tight storage spaces without tools.
80 kg Atlas H rear rack · one size fits 150–195 cm
6-point Atlas H rack rated to 80 kg (176 lb). Physis 3D handlepost and Andros adjustable stem fit riders from 4'11" to 6'5" without tools.
Available colours
E-System
| Motor | Bosch Performance Line, 75 Nm, 340% assist |
| Battery system | Bosch Smart System — Frame Mount battery |
| Battery (equipped) | 545 Wh Bosch Frame Mount PowerPack |
| Battery (max single) | 800 Wh Bosch Frame Mount (upgrade) |
| Dual-battery | Not available |
| Range — 545 Wh | 51–121 km (32–76 mi) |
| Range — 800 Wh | ~75–177 km (est.) |
| Display | Bosch Intuvia 100 w/ LED remote, detachable, Bosch eBike Flow app, electronic bike lock |
| Lock & Alarm | Optional |
| Charger | 100–240V, 4A |
Drivetrain
| Shifter | Shimano Nexus INTER-5E |
| Rear hub | Shimano Nexus INTER-5E, internally geared |
| Belt | Gates Carbon Drive CDX |
| Crankset | Tern HSD custom, Gates CDX CNC machined beltring |
| Cog | Gates CDX, precision CNC machined |
| Bottom bracket | Motor integrated |
| Gear range | 38"–99" (2.99–7.88 m) |
| Pedals | Urban, non-slip surface |
Brakes
| Front brake | Shimano hydraulic disc, 180mm rotor |
| Rear brake | Shimano hydraulic disc, 160mm rotor |
| Levers | Shimano hydraulic disc |
Wheels & Tires
| Wheels | Tern Atlas H, cargo |
| Front hub | Novatec, thru-axle, sealed bearings |
| Rear hub | Shimano Nexus INTER-5E |
| Rims | Tern Atlas H, wide 35mm |
| Tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Spokes | Stainless steel |
Frame & Cockpit
| Frame | Tern HSD, 6061-AL, patented design, sliding dropouts, EFBE Tri-Test approved: 180 kg |
| Fork | Suntour custom for Tern, 1.5" tapered CrMo steerer, 32mm stanchions, thru-axle, 70mm travel, EFBE approved: 180 kg |
| Handlepost | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290mm |
| Stem | Tern Andros, adjustable, forged, patented technology |
| Handlebar | Tern Sweep, 6061-AL, Tern Andros adapted |
| Headset | Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated |
| Saddle | Tern Upright by Velo |
| Seatpost | Tern Telescope, 34.9/30.9mm, 2014-AL |
| Grips | Ergon |
Load & Capacity
| Max GVW | 180 kg (397 lb) |
| Max rider weight | 120 kg (265 lb) |
| Rack capacity | 80 kg (176 lb) |
| Rack | Atlas H rack, 6-point mounting |
| Kickstand | Ursus, rear mount |
| Rider height range | 150–195 cm (4'11"–6'5") |
| Frame sizes | One size |
Dimensions & Folding
| Folded size | 165×39.5×87 cm (65×15.6×34.3 in) |
| Fold time | ~5 seconds |
| Weight | 27.9 kg (61.5 lb) |
Extras
| Front light | Tern Valo Direct, 190 lumens |
| Rear light | Herrmans H-Trace, for eBike |
| Fenders | SplashGuard, stainless hardware |
| Chainguard | Tern custom, full chain cover |
| Frame lock | ABUS, keyed-alike with Bosch battery |
| Luggage socket | Combo Mount |
| Bell | Pitch Plus, brass |
Tern HSD P5i · Gen 2 · One Size · Sea Breeze / Dragonfruit / Forge Gray
- Description
HSD P5i · Gen 2 · 1×5 IGH · Gates Belt · Bosch Performance Line · Smart System
HSD P5i
The clean, quiet HSD — Gates carbon belt drive and Shimano Nexus 5-speed hub for a virtually maintenance-free compact cargo ride.
$8,225 CAD75 Nm motor torque 545 Wh equipped battery 180 kg max GVW 51–121 km (545 Wh equipped) ~75–177 km (800 Wh max single est.) estimated range
The HSD P5i is the low-maintenance step-up in the HSD lineup. It shares the same compact folding frame, Bosch Performance Line motor, Smart System connectivity, and 80 kg rear rack as the P10 — but replaces the chain drivetrain with a Gates Carbon Drive CDX belt and Shimano Nexus INTER-5E internally geared hub. The result is a virtually grease-free, silent drivetrain that shifts at any speed and requires almost no upkeep. Upgraded to Shimano hydraulic disc brakes too. If you commute daily and want to forget your drivetrain exists, this is the HSD to get.
Highlights
Gates Carbon Drive CDX belt — zero maintenance
No chain, no grease, no lube — ever. The Gates CDX carbon belt is silent, clean, rust-proof, and dramatically outlasts any chain. Paired with the Shimano Nexus hub, it's the closest thing to a maintenance-free drivetrain on a compact cargo bike.
Shimano Nexus INTER-5E — 5-speed IGH
The Nexus INTER-5E is Shimano's e-bike specific internally geared hub — 5 evenly spaced gears that shift smoothly at any speed or cadence, even at a standstill. No missed shifts, no derailleurs to knock out of alignment.
Bosch Performance Line — 75 Nm, 340% assist
The Bosch Performance Line via Smart System delivers 75 Nm of torque and 340% pedal assist — responsive and dynamic, tuned for a more engaging riding feel whether loaded or light.
Bosch Smart System — Intuvia 100 + Flow app
Detachable Intuvia 100 display with LED remote connects to the Bosch eBike Flow app for over-the-air updates, eBike Lock, ride mode customization, and more. Optional lock and alarm available.
Shimano hydraulic disc brakes — 180mm/160mm
Upgraded to Shimano hydraulic disc brakes (vs Tektro on the P10) with 180mm front and 160mm rear rotors for confident, consistent stopping in all weather and under all loads.
545 Wh battery — up to 800 Wh with upgrade
Ships with a 545 Wh Bosch Smart System PowerPack for up to 121 km of range. Compatible with the larger 800 Wh Smart System battery for extended range. Not dual-battery capable.
180 kg GVW — EFBE Tri-Test approved
Frame and fork EFBE Tri-Test approved to 180 kg gross vehicle weight — carries one adult passenger or a substantial cargo load with full structural confidence.
Folds in 5 seconds — 165×39.5×87 cm
Same compact GSD-family fold — 165×39.5×87 cm in ~5 seconds. Fits in lifts, vans, and tight storage spaces without tools.
80 kg Atlas H rear rack · one size fits 150–195 cm
6-point Atlas H rack rated to 80 kg (176 lb). Physis 3D handlepost and Andros adjustable stem fit riders from 4'11" to 6'5" without tools.
Available colours
Sea Breeze Dragonfruit Forge GrayE-System
| Motor | Bosch Performance Line, 75 Nm, 340% assist |
| Battery system | Bosch Smart System — Frame Mount battery |
| Battery (equipped) | 545 Wh Bosch Frame Mount PowerPack |
| Battery (max single) | 800 Wh Bosch Frame Mount (upgrade) |
| Dual-battery | Not available |
| Range — 545 Wh | 51–121 km (32–76 mi) |
| Range — 800 Wh | ~75–177 km (est.) |
| Display | Bosch Intuvia 100 w/ LED remote, detachable, Bosch eBike Flow app, electronic bike lock |
| Lock & Alarm | Optional |
| Charger | 100–240V, 4A |
Drivetrain
| Shifter | Shimano Nexus INTER-5E |
| Rear hub | Shimano Nexus INTER-5E, internally geared |
| Belt | Gates Carbon Drive CDX |
| Crankset | Tern HSD custom, Gates CDX CNC machined beltring |
| Cog | Gates CDX, precision CNC machined |
| Bottom bracket | Motor integrated |
| Gear range | 38"–99" (2.99–7.88 m) |
| Pedals | Urban, non-slip surface |
Brakes
| Front brake | Shimano hydraulic disc, 180mm rotor |
| Rear brake | Shimano hydraulic disc, 160mm rotor |
| Levers | Shimano hydraulic disc |
Wheels & Tires
| Wheels | Tern Atlas H, cargo |
| Front hub | Novatec, thru-axle, sealed bearings |
| Rear hub | Shimano Nexus INTER-5E |
| Rims | Tern Atlas H, wide 35mm |
| Tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Spokes | Stainless steel |
Frame & Cockpit
| Frame | Tern HSD, 6061-AL, patented design, sliding dropouts, EFBE Tri-Test approved: 180 kg |
| Fork | Suntour custom for Tern, 1.5" tapered CrMo steerer, 32mm stanchions, thru-axle, 70mm travel, EFBE approved: 180 kg |
| Handlepost | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290mm |
| Stem | Tern Andros, adjustable, forged, patented technology |
| Handlebar | Tern Sweep, 6061-AL, Tern Andros adapted |
| Headset | Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated |
| Saddle | Tern Upright by Velo |
| Seatpost | Tern Telescope, 34.9/30.9mm, 2014-AL |
| Grips | Ergon |
Load & Capacity
| Max GVW | 180 kg (397 lb) |
| Max rider weight | 120 kg (265 lb) |
| Rack capacity | 80 kg (176 lb) |
| Rack | Atlas H rack, 6-point mounting |
| Kickstand | Ursus, rear mount |
| Rider height range | 150–195 cm (4'11"–6'5") |
| Frame sizes | One size |
Dimensions & Folding
| Folded size | 165×39.5×87 cm (65×15.6×34.3 in) |
| Fold time | ~5 seconds |
| Weight | 27.9 kg (61.5 lb) |
Extras
| Front light | Tern Valo Direct, 190 lumens |
| Rear light | Herrmans H-Trace, for eBike |
| Fenders | SplashGuard, stainless hardware |
| Chainguard | Tern custom, full chain cover |
| Frame lock | ABUS, keyed-alike with Bosch battery |
| Luggage socket | Combo Mount |
| Bell | Pitch Plus, brass |
Tern HSD P5i · Gen 2 · One Size · Sea Breeze / Dragonfruit / Forge Gray
