Tern

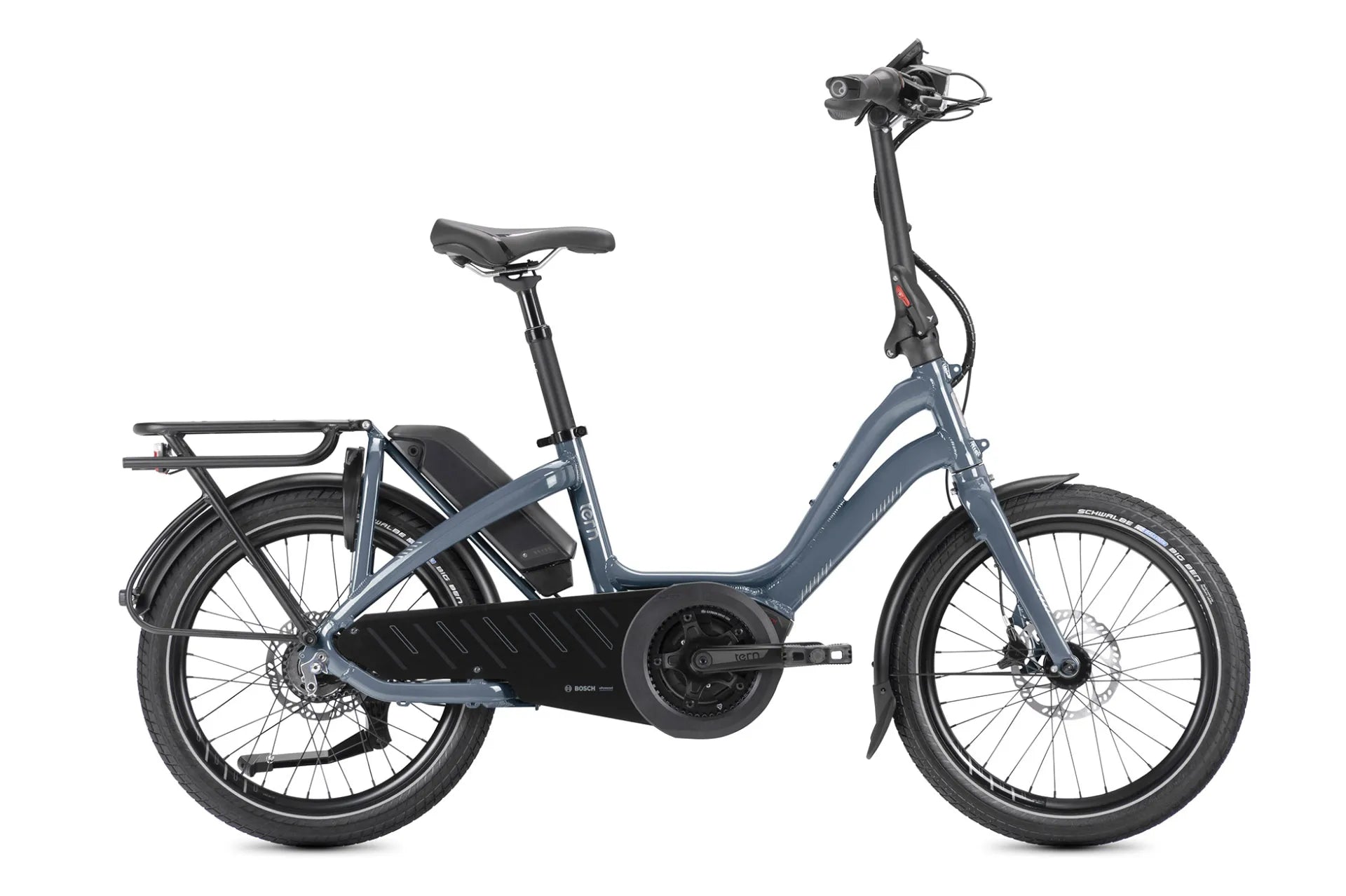

Tern NBD S5i
Tern NBD S5i
Regular price
$5,360.00 USD
Regular price
Sale price
$5,360.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
New product launching MARCH 2023
What Makes it an S5i?
- Bosch Performance Line motor provides up to 65 Nm of torque and 300% support
- Bosch PowerPack 500 powers longer trips, commutes, and journeys
- Gates belt drive for clean, quiet, maintenance-free operation
- Shimano® Nexus 5-speed internal hub
- Magura MT4 hydraulic disc brakes for superior stopping power—even when carrying a passenger and riding fast
NBD Highlights
- Ultra-low 39 cm (15.4”) standover height means gentle, low steps are all that’s required to get on and go
- Ultra-low center of gravity improves balancing and maneuvering when riding with kids through parks and narrow streets
- Fits riders 147 - 190 cm (4'10" - 6'3")
- Gaia Rack is certified to carry up to 27 kg (60 lbs) and works with many child seats
- Proven safe and reliable: frame and fork have undergone the EFBE Tri-Test to the 140 kg (309 lbs) Maximum Gross Vehicle Weight
Specifications
GENERAL INFO
SPEEDS:
1 x 5
WEIGHT:
23.4 kg (51.6 lb)
GEAR INCHES:
34" - 90" (2.75 - 7.22 m)
FOLDING SIZE:
38 × 156 × 79 cm (15 × 61.4 × 31.1 in)
FOLDING TIME:
5 sec
FRAME SIZES:
One size
DISTANCE: SEATPOST TO HANDLEBAR:
45 - 52 cm (17.7 - 20.5 in)
DISTANCE: SADDLE TO PEDAL:
70 - 100 cm (27.6 - 39.4 in)
SUGGESTED RIDER HEIGHT:
147 - 190 cm (57.9 - 74.8 in)
MAX GROSS VEHICLE WEIGHT:
140 kg (308.6 lb)
MAX RIDER WEIGHT:
120 kg (264.6 lb)
FRAME
FRAME:
Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 140 kg
FORK:
Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 140 kg
COCKPIT
HANDLE POST:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm
STEM:
Tern Andros, adjustable, forged construction, patented technology
HEADSET:
Tern Flux by FSA, cartridge bearings, Physis integrated
HANDLEBAR:
Tern Sweep, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE:
Ergon
SADDLE:
Tern Upright by Velo
SEATPOST:
Tern RideEasy Suspension, 34.9 mm, Air cartridge, Preload adjustable
SEATPOST CLAMP:
Tern Collar
BRAKES
FRONT BRAKE:
Magura MT4, hydraulic disc
REAR BRAKE:
Magura MT4, hydraulic disc
BRAKE LEVERS:
Magura, hydraulic
BRAKE CABLE & HOUSING:
Magura, hydraulic
WHEELS
FRONT HUB:
Shimano disc
REAR HUB:
Shimano Nexus 5
SPOKES AND NIPPLES:
Stainless steel
RIMS:
Kinetix Comp, for disc
TIRES:
Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
TRANSMISSION
SHIFTER(S):
Shimano 5 spd.
CRANKSET:
Tern NBD custom, Gates CDX CNC machined beltring
CASSETTE/FREEWHEEL:
Gates CDX, precision CNC machined cog
CHAIN:
Gates Carbon Drive CDX belt
PEDALS:
MKS Platform, Tern custom design
SHIFTER CABLE & HOUSING:
Shimano
E-SYSTEM
MOTOR:
Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY:
Bosch PowerPack 500
DISPLAY:
Bosch Intuvia, 4 mode selectable, walk assist
RANGE:
51-118 km (32-74 mi)
CHARGER:
Bosch Standard Charger
BELLS & WHISTLES
BELL:
Aluminum
CHAINGUARD:
Tern Custom, full chain cover
KICKSTAND:
Ursus, rear mount
LUGGAGE SOCKET:
Combo Mount
FRONT LIGHT:
Tern Valo Direct, 190 lumens
REAR LIGHT:
Herrmans
FENDERS:
SplashGuard, stainless hardware
RACK(S):
Gaia Rack, 27 kg capacity, Vertical Parking
FRAME LOCK:
ABUS, keyed-alike with Bosch battery
Videos
- Description
- Specifications
- Videos
New product launching MARCH 2023
What Makes it an S5i?
- Bosch Performance Line motor provides up to 65 Nm of torque and 300% support
- Bosch PowerPack 500 powers longer trips, commutes, and journeys
- Gates belt drive for clean, quiet, maintenance-free operation
- Shimano® Nexus 5-speed internal hub
- Magura MT4 hydraulic disc brakes for superior stopping power—even when carrying a passenger and riding fast
NBD Highlights
- Ultra-low 39 cm (15.4”) standover height means gentle, low steps are all that’s required to get on and go
- Ultra-low center of gravity improves balancing and maneuvering when riding with kids through parks and narrow streets
- Fits riders 147 - 190 cm (4'10" - 6'3")
- Gaia Rack is certified to carry up to 27 kg (60 lbs) and works with many child seats
- Proven safe and reliable: frame and fork have undergone the EFBE Tri-Test to the 140 kg (309 lbs) Maximum Gross Vehicle Weight
GENERAL INFO
SPEEDS: 1 x 5 WEIGHT: 23.4 kg (51.6 lb) GEAR INCHES: 34" - 90" (2.75 - 7.22 m) FOLDING SIZE: 38 × 156 × 79 cm (15 × 61.4 × 31.1 in) FOLDING TIME: 5 sec FRAME SIZES: One size DISTANCE: SEATPOST TO HANDLEBAR: 45 - 52 cm (17.7 - 20.5 in) DISTANCE: SADDLE TO PEDAL: 70 - 100 cm (27.6 - 39.4 in) SUGGESTED RIDER HEIGHT: 147 - 190 cm (57.9 - 74.8 in) MAX GROSS VEHICLE WEIGHT: 140 kg (308.6 lb) MAX RIDER WEIGHT: 120 kg (264.6 lb) FRAME FRAME: Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 140 kg FORK: Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 140 kgCOCKPIT HANDLE POST: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm STEM: Tern Andros, adjustable, forged construction, patented technology HEADSET: Tern Flux by FSA, cartridge bearings, Physis integrated HANDLEBAR: Tern Sweep, 6061-AL, Tern Andros adapted GRIPS/BAR TAPE: Ergon SADDLE: Tern Upright by Velo SEATPOST: Tern RideEasy Suspension, 34.9 mm, Air cartridge, Preload adjustable SEATPOST CLAMP: Tern Collar BRAKES FRONT BRAKE: Magura MT4, hydraulic disc REAR BRAKE: Magura MT4, hydraulic disc BRAKE LEVERS: Magura, hydraulic BRAKE CABLE & HOUSING: Magura, hydraulic WHEELS FRONT HUB: Shimano disc REAR HUB: Shimano Nexus 5 SPOKES AND NIPPLES: Stainless steel RIMS: Kinetix Comp, for disc TIRES: Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex TRANSMISSION SHIFTER(S): Shimano 5 spd. CRANKSET: Tern NBD custom, Gates CDX CNC machined beltring CASSETTE/FREEWHEEL: Gates CDX, precision CNC machined cog CHAIN: Gates Carbon Drive CDX belt PEDALS: MKS Platform, Tern custom design SHIFTER CABLE & HOUSING: Shimano
E-SYSTEM MOTOR: Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) BATTERY: Bosch PowerPack 500 DISPLAY: Bosch Intuvia, 4 mode selectable, walk assist RANGE: 51-118 km (32-74 mi) CHARGER: Bosch Standard Charger
BELLS & WHISTLES
BELL: AluminumCHAINGUARD:
Tern Custom, full chain cover KICKSTAND: Ursus, rear mount LUGGAGE SOCKET: Combo Mount FRONT LIGHT: Tern Valo Direct, 190 lumens
REAR LIGHT:
FRAME LOCK:
ABUS, keyed-alike with Bosch battery
