OROX R14 · 27.5" · 1×14 · Gates Belt Drive

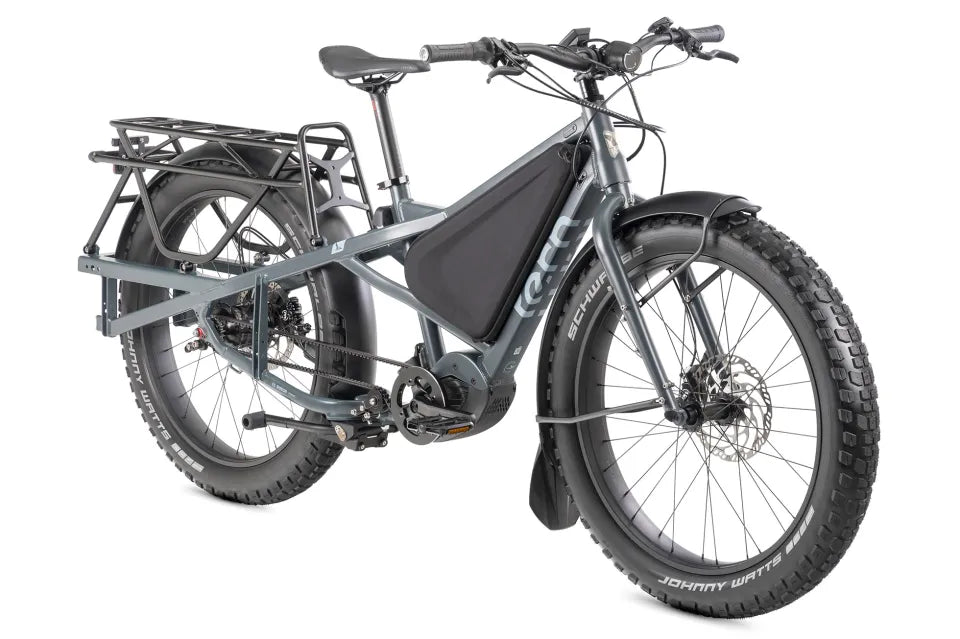

Orox R14 (27.5")
The ultimate maintenance-free all-terrain e-cargo bike — Rohloff hub, Gates belt drive, and Bosch CX power.
The Tern Orox R14 is the pinnacle of the Orox lineup — and one of the most capable all-terrain cargo e-bikes money can buy. It shares the same EFBE-certified frame, Bosch Performance Line CX motor, and Magura MT5 brakes as the S12, but replaces the chain drivetrain with a Rohloff 14-speed Speedhub and Gates Carbon Drive CDX belt. The result is a virtually zero-maintenance drivetrain that's silent, grease-free, and built to last a lifetime. Paired with Schwalbe Johnny Watts 27.5"×4" all-terrain tires and an 800 Wh battery (expandable to 1600 Wh), the R14 is ready for anything, season after season.
Highlights
Rohloff Speedhub — 14-speed, 526% range
The Rohloff Speedhub is the gold standard in internally geared hubs — 14 evenly spaced gears, 526% total range, and virtually no maintenance required. Shift at any speed, under full load, without thinking about it.
Gates Carbon Drive CDX belt
No grease, no rust, no chain lube — ever. The Gates CDX carbon belt is silent, clean, and extraordinarily durable. Combined with the Rohloff hub it creates a drivetrain that's as close to maintenance-free as you can get.
Bosch Performance Line CX motor
Up to 85 Nm of torque and 340% support ratio — Bosch's flagship cargo motor. Climbs steep grades loaded without hesitation.
800 Wh equipped — dual-battery ready (1600 Wh)
Ships with the maximum single Bosch Smart System battery (800 Wh) for up to 161 km of range. Add a second 800 Wh battery for up to 322 km — enough for multi-day loaded touring.
Schwalbe Johnny Watts 27.5"×4" tires
Purpose-designed all-terrain fat tires with an optimized tread pattern for dirt, gravel, and urban riding. Handles everything the Orox can throw at it.
Magura MT5 4-piston hydraulic brakes
Front and rear 203mm rotors with Magura's powerful MT5 hydraulic system. Fully loaded stops from speed require brakes you can trust — these are the ones.
EFBE-certified for 210 kg GVW
Certified to carry up to 210 kg (462 lb) gross vehicle weight on pavement and 180 kg (397 lb) off-road. Two child passengers, an adult, or a full load — handled with confidence.
Bosch Smart System with ConnectModule
GPS/GSM connectivity with eBike Alarm and Tracking via Bosch Flow+ subscription. Includes a free 12-month trial upon activation.
Bosch Kiox 300 colour display
Bosch Kiox 300 or Kiox 500 (smartphone holder) — splash-proof colour display with LED remote and integrated electronic bike lock. Full control at your fingertips in all weather.
Atlas X ultra-heavy duty wheels & 100 kg rack
Tern's own Atlas X wheelset with CNC hubs, disc cooling fins, and Boost thru-axles. The Atlas X rack is rated to 100 kg (220 lb) of cargo.
Ignis 700-lumen headlight + G-sensed brake light
Ultra-wide Hi/Lo beam headlight for genuine trail visibility, plus a rear brake light that triggers automatically when decelerating.
ToughShield self-healing paint protection
Factory-applied ToughShield film on the top tube and downtube. Protects the frame from chips and scratches — and heals minor marks on its own.
Available colours
Frame sizes
Medium
Rider height: 155–185 cm (5'1"–6'1")
Seat tube: 46 cm
Top tube: 61 cm
Stack: 62.5 cm
Saddle–pedal: 71–99 cm
Weight: 37.7 kg
Large
Rider height: 165–195 cm (5'5"–6'5")
Seat tube: 50.5 cm
Top tube: 64.5 cm
Stack: 65 cm
Saddle–pedal: 76.5–104.5 cm
E-System
| Motor | Bosch Performance Line CX, 85 Nm, 340% support |
| Battery system | Bosch Smart System — Frame Mount battery |
| Battery (equipped) | 800 Wh Bosch Frame Mount Smart System |
| Battery (max dual) | 2×800 Wh = 1600 Wh (dual-battery capable) |
| Range — 800 Wh | 93–161 km (58–100 mi) |
| Range — 1600 Wh dual | 185–322 km (115–200 mi) |
| Display | Bosch Kiox 300 or Kiox 500 (interchangeable) w/ LED remote, electronic bike lock |
| Connect Module | Bosch ConnectModule — GPS/GSM, eBike Alarm & Tracking (Flow+ subscription) |
| Charger | 100–240V, 4A |
Drivetrain
| Shifter | Rohloff Twist, 1×14 speed |
| Rear hub | Rohloff Speedhub, 14-speed, 526% range, Boost |
| Belt | Gates Carbon Drive CDX |
| Crankset | Tern Orox custom, Gates CDX CNC machined beltring |
| Cog | Gates CDX, precision CNC machined |
| Bottom bracket | Motor integrated |
| Gear range | 18"–96" (1.45–7.64 m) |
| Pedals | MTB, non-slip |
Brakes
| Front brake | Magura MT5, 4-piston hydraulic disc, 203mm rotor |
| Rear brake | Magura MT5, 4-piston hydraulic disc, 203mm rotor |
| Levers | Magura MT5 hydraulic |
Wheels & Tires
| Wheels | Tern Atlas X, ultra-heavy duty, 27.5" |
| Front hub | Tern Atlas X, CNC, disc cooling fins, Boost thru-axle, integrated Tern Tool |
| Rear hub | Rohloff Speedhub, 526% range, Boost |
| Rims | Tern Atlas X, custom doublewall |
| Tires | Schwalbe Johnny Watts, 27.5"×4" |
| Spokes | Stainless steel |
Frame & Cockpit
| Frame | Tern Orox, 6061 aluminium, patented design, EFBE certified |
| Fork | Atlas X, butted chromoly steel, EFBE certified |
| Handlebar | Level Nine, AL-7050, 800mm riser, eMTB approved |
| Stem | Level Nine, 45mm (M) / 65mm (L), Syntace VR-3 certified |
| Headset | FSA, 1.5", angular contact bearings |
| Saddle | Ergon SM E-Mountain Sport, CrMo rail |
| Seatpost | Syntace P6 AL7050, 34.9mm, Syntace VR-3 SP-approved |
| Grips | Ergon |
Load & Capacity
| Max GVW (pavement) | 210 kg (462 lb) |
| Max GVW (off-road) | 180 kg (397 lb) |
| Max rider weight | 130 kg (286 lb) |
| Rack capacity | 100 kg (220 lb) |
| Rack | Atlas X, cargo-ready |
| Kickstand | Atlas Kickstand XL, cargo-ready |
Extras
| Front light | Ignis Headlight, 700 lumens, ultra-wide Hi/Lo beam |
| Rear light | LED with G-sensed brake light |
| Fenders | Aluminium, heavy-duty, oversize stays, 27.5" |
| Chainguard | Custom bash guard |
| Paint protection | ToughShield self-healing film (top tube & downtube) |
| Bell | Pitch Plus, brass |
| Pedals | MTB, non-slip |
| Tool | Thru-axle lever, 4/5mm hex, Torx 2.5mm |
Tern Orox R14 (27.5") · Gen 1 · Available in M and L · Satin Granite
- Description
OROX R14 · 27.5" · 1×14 · Gates Belt Drive
Orox R14 (27.5")
The ultimate maintenance-free all-terrain e-cargo bike — Rohloff hub, Gates belt drive, and Bosch CX power.
$10,775 CAD · Sale Price85 Nm motor torque 800 Wh equipped battery 210 kg max GVW 93–161 km (800 Wh equipped) 185–322 km (1600 Wh dual) estimated range
The Tern Orox R14 is the pinnacle of the Orox lineup — and one of the most capable all-terrain cargo e-bikes money can buy. It shares the same EFBE-certified frame, Bosch Performance Line CX motor, and Magura MT5 brakes as the S12, but replaces the chain drivetrain with a Rohloff 14-speed Speedhub and Gates Carbon Drive CDX belt. The result is a virtually zero-maintenance drivetrain that's silent, grease-free, and built to last a lifetime. Paired with Schwalbe Johnny Watts 27.5"×4" all-terrain tires and an 800 Wh battery (expandable to 1600 Wh), the R14 is ready for anything, season after season.
Highlights
Rohloff Speedhub — 14-speed, 526% range
The Rohloff Speedhub is the gold standard in internally geared hubs — 14 evenly spaced gears, 526% total range, and virtually no maintenance required. Shift at any speed, under full load, without thinking about it.
Gates Carbon Drive CDX belt
No grease, no rust, no chain lube — ever. The Gates CDX carbon belt is silent, clean, and extraordinarily durable. Combined with the Rohloff hub it creates a drivetrain that's as close to maintenance-free as you can get.
Bosch Performance Line CX motor
Up to 85 Nm of torque and 340% support ratio — Bosch's flagship cargo motor. Climbs steep grades loaded without hesitation.
800 Wh equipped — dual-battery ready (1600 Wh)
Ships with the maximum single Bosch Smart System battery (800 Wh) for up to 161 km of range. Add a second 800 Wh battery for up to 322 km — enough for multi-day loaded touring.
Schwalbe Johnny Watts 27.5"×4" tires
Purpose-designed all-terrain fat tires with an optimized tread pattern for dirt, gravel, and urban riding. Handles everything the Orox can throw at it.
Magura MT5 4-piston hydraulic brakes
Front and rear 203mm rotors with Magura's powerful MT5 hydraulic system. Fully loaded stops from speed require brakes you can trust — these are the ones.
EFBE-certified for 210 kg GVW
Certified to carry up to 210 kg (462 lb) gross vehicle weight on pavement and 180 kg (397 lb) off-road. Two child passengers, an adult, or a full load — handled with confidence.
Bosch Smart System with ConnectModule
GPS/GSM connectivity with eBike Alarm and Tracking via Bosch Flow+ subscription. Includes a free 12-month trial upon activation.
Bosch Kiox 300 colour display
Bosch Kiox 300 or Kiox 500 (smartphone holder) — splash-proof colour display with LED remote and integrated electronic bike lock. Full control at your fingertips in all weather.
Atlas X ultra-heavy duty wheels & 100 kg rack
Tern's own Atlas X wheelset with CNC hubs, disc cooling fins, and Boost thru-axles. The Atlas X rack is rated to 100 kg (220 lb) of cargo.
Ignis 700-lumen headlight + G-sensed brake light
Ultra-wide Hi/Lo beam headlight for genuine trail visibility, plus a rear brake light that triggers automatically when decelerating.
ToughShield self-healing paint protection
Factory-applied ToughShield film on the top tube and downtube. Protects the frame from chips and scratches — and heals minor marks on its own.
Available colours
Satin GraniteFrame sizes
Medium
Rider height: 155–185 cm (5'1"–6'1")
Seat tube: 46 cm
Top tube: 61 cm
Stack: 62.5 cm
Saddle–pedal: 71–99 cm
Weight: 37.7 kg
Large
Rider height: 165–195 cm (5'5"–6'5")
Seat tube: 50.5 cm
Top tube: 64.5 cm
Stack: 65 cm
Saddle–pedal: 76.5–104.5 cm
E-System
| Motor | Bosch Performance Line CX, 85 Nm, 340% support |
| Battery system | Bosch Smart System — Frame Mount battery |
| Battery (equipped) | 800 Wh Bosch Frame Mount Smart System |
| Battery (max dual) | 2×800 Wh = 1600 Wh (dual-battery capable) |
| Range — 800 Wh | 93–161 km (58–100 mi) |
| Range — 1600 Wh dual | 185–322 km (115–200 mi) |
| Display | Bosch Kiox 300 or Kiox 500 (interchangeable) w/ LED remote, electronic bike lock |
| Connect Module | Bosch ConnectModule — GPS/GSM, eBike Alarm & Tracking (Flow+ subscription) |
| Charger | 100–240V, 4A |
Drivetrain
| Shifter | Rohloff Twist, 1×14 speed |
| Rear hub | Rohloff Speedhub, 14-speed, 526% range, Boost |
| Belt | Gates Carbon Drive CDX |
| Crankset | Tern Orox custom, Gates CDX CNC machined beltring |
| Cog | Gates CDX, precision CNC machined |
| Bottom bracket | Motor integrated |
| Gear range | 18"–96" (1.45–7.64 m) |
| Pedals | MTB, non-slip |
Brakes
| Front brake | Magura MT5, 4-piston hydraulic disc, 203mm rotor |
| Rear brake | Magura MT5, 4-piston hydraulic disc, 203mm rotor |
| Levers | Magura MT5 hydraulic |
Wheels & Tires
| Wheels | Tern Atlas X, ultra-heavy duty, 27.5" |
| Front hub | Tern Atlas X, CNC, disc cooling fins, Boost thru-axle, integrated Tern Tool |
| Rear hub | Rohloff Speedhub, 526% range, Boost |
| Rims | Tern Atlas X, custom doublewall |
| Tires | Schwalbe Johnny Watts, 27.5"×4" |
| Spokes | Stainless steel |
Frame & Cockpit
| Frame | Tern Orox, 6061 aluminium, patented design, EFBE certified |
| Fork | Atlas X, butted chromoly steel, EFBE certified |
| Handlebar | Level Nine, AL-7050, 800mm riser, eMTB approved |
| Stem | Level Nine, 45mm (M) / 65mm (L), Syntace VR-3 certified |
| Headset | FSA, 1.5", angular contact bearings |
| Saddle | Ergon SM E-Mountain Sport, CrMo rail |
| Seatpost | Syntace P6 AL7050, 34.9mm, Syntace VR-3 SP-approved |
| Grips | Ergon |
Load & Capacity
| Max GVW (pavement) | 210 kg (462 lb) |
| Max GVW (off-road) | 180 kg (397 lb) |
| Max rider weight | 130 kg (286 lb) |
| Rack capacity | 100 kg (220 lb) |
| Rack | Atlas X, cargo-ready |
| Kickstand | Atlas Kickstand XL, cargo-ready |
Extras
| Front light | Ignis Headlight, 700 lumens, ultra-wide Hi/Lo beam |
| Rear light | LED with G-sensed brake light |
| Fenders | Aluminium, heavy-duty, oversize stays, 27.5" |
| Chainguard | Custom bash guard |
| Paint protection | ToughShield self-healing film (top tube & downtube) |
| Bell | Pitch Plus, brass |
| Pedals | MTB, non-slip |
| Tool | Thru-axle lever, 4/5mm hex, Torx 2.5mm |
Tern Orox R14 (27.5") · Gen 1 · Available in M and L · Satin Granite
