OROX S12 · 27.5" · 1×12
Orox S12 (27.5")
All-season, all-terrain electric cargo bike — haul two kids, a passenger, or a full load, anywhere.
The Tern Orox S12 is a purpose-built all-terrain electric cargo bike designed to go where most cargo bikes won't. Powered by a Bosch Performance Line CX motor with up to 85 Nm of torque, fitted with fat 27.5" Vee Snow Ball tires, and EFBE-certified to carry up to 210 kg on pavement, the Orox S12 is as capable on trails and snow as it is on city streets. The Shimano Deore XT 1×12 drivetrain, Magura 4-piston hydraulic brakes, and dual-battery readiness make it one of the most serious cargo haulers available — at any price point.
Highlights
Bosch Performance Line CX motor
Up to 85 Nm of torque and 340% support ratio. This is Bosch's flagship cargo motor — built for steep climbs and heavy loads without breaking a sweat.
Dual-battery system — up to 1450 Wh
The standard 725 Wh battery delivers up to 146 km of range. Add a second battery for up to 292 km — enough for multi-day touring or truly long hauls.
Shimano Deore XT 1×12 drivetrain
A 12-speed Deore XT Shadow+ rear derailleur paired with a 10–51T cassette delivers a massive gear range — climbing loaded or descending fast, shifting is always precise.
Magura MT5 4-piston hydraulic brakes
Front and rear 203mm rotors with Magura's powerful MT5 levers and calipers. Fully loaded stops from speed require serious brakes — these deliver.
Vee Snow Ball 27.5×4" tires
Stud-compatible fat tires that handle dirt, gravel, snow, and wet pavement. The Orox lives up to its all-terrain promise right down to the rubber.
EFBE-certified for 210 kg GVW
Certified to carry up to 210 kg (462 lb) gross vehicle weight on pavement and 180 kg (397 lb) off-road. Carry two child passengers, an adult, or a full load of cargo with confidence.
Bosch Smart System with ConnectModule
Built-in GPS/GSM connectivity with eBike Alarm and eBike Tracking when subscribed to Bosch Flow+. Includes a free 12-month trial upon activation.
Bosch Kiox 300 colour display
Bosch Kiox 300 or Kiox 500 (smartphone holder) — splash-proof colour display with LED remote and integrated electronic bike lock. Full control of your ride, ride data, and settings at your fingertips.
Atlas X ultra-heavy duty wheels & rack
Tern's own Atlas X wheelset features CNC hubs with disc cooling fins and Boost thru-axles. The Atlas X rack is rated to 100 kg (220 lb) of cargo capacity.
Ignis 700-lumen headlight + G-sensed brake light
Ultra-wide Hi/Lo beam headlight for genuine trail visibility, plus a rear brake light that activates automatically when you slow down.
ToughShield self-healing paint protection
Factory-applied ToughShield film on the top tube and downtube protects the frame from chips and scratches — and heals minor marks on its own.

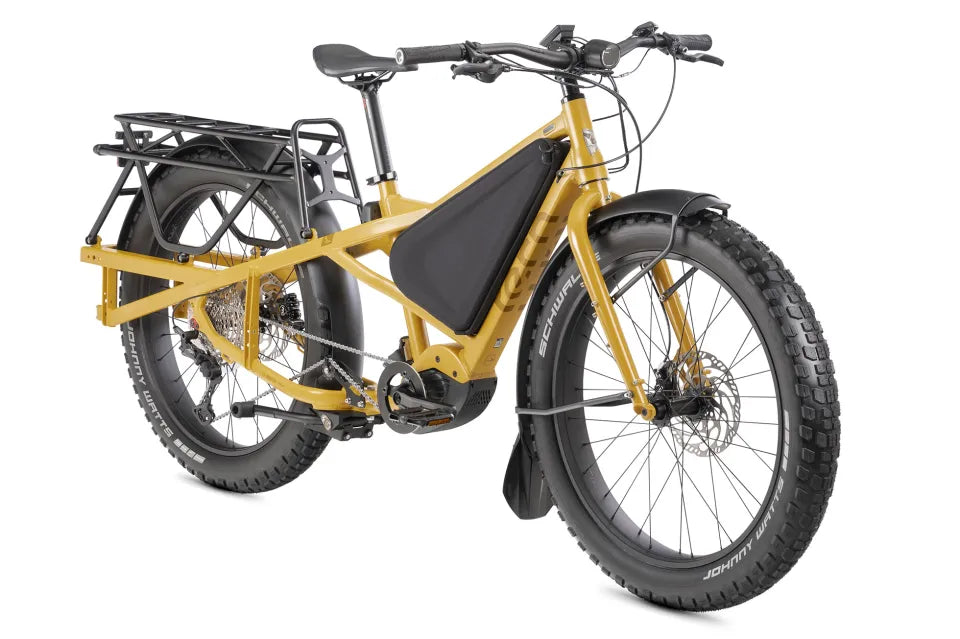

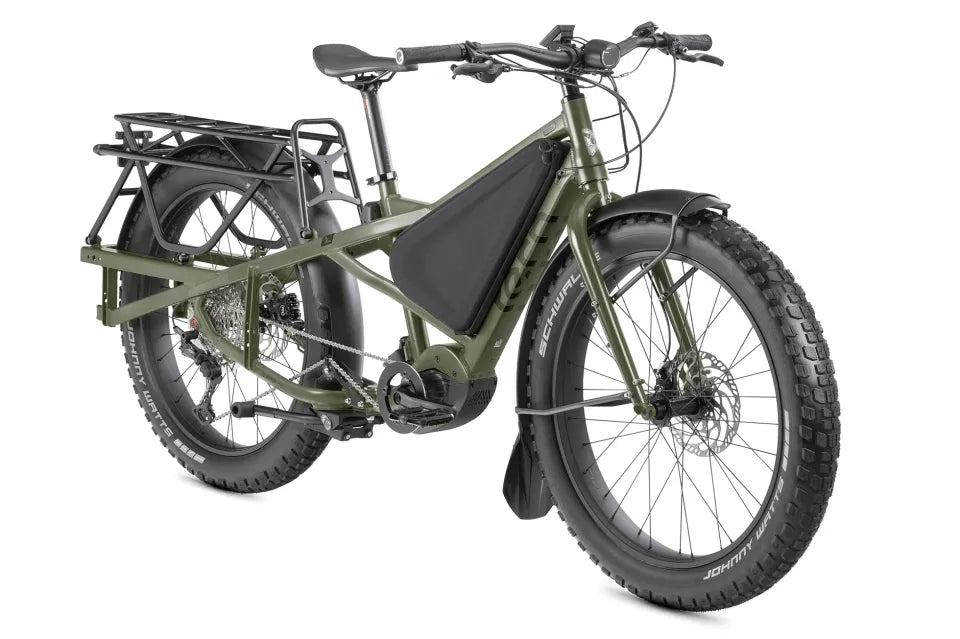

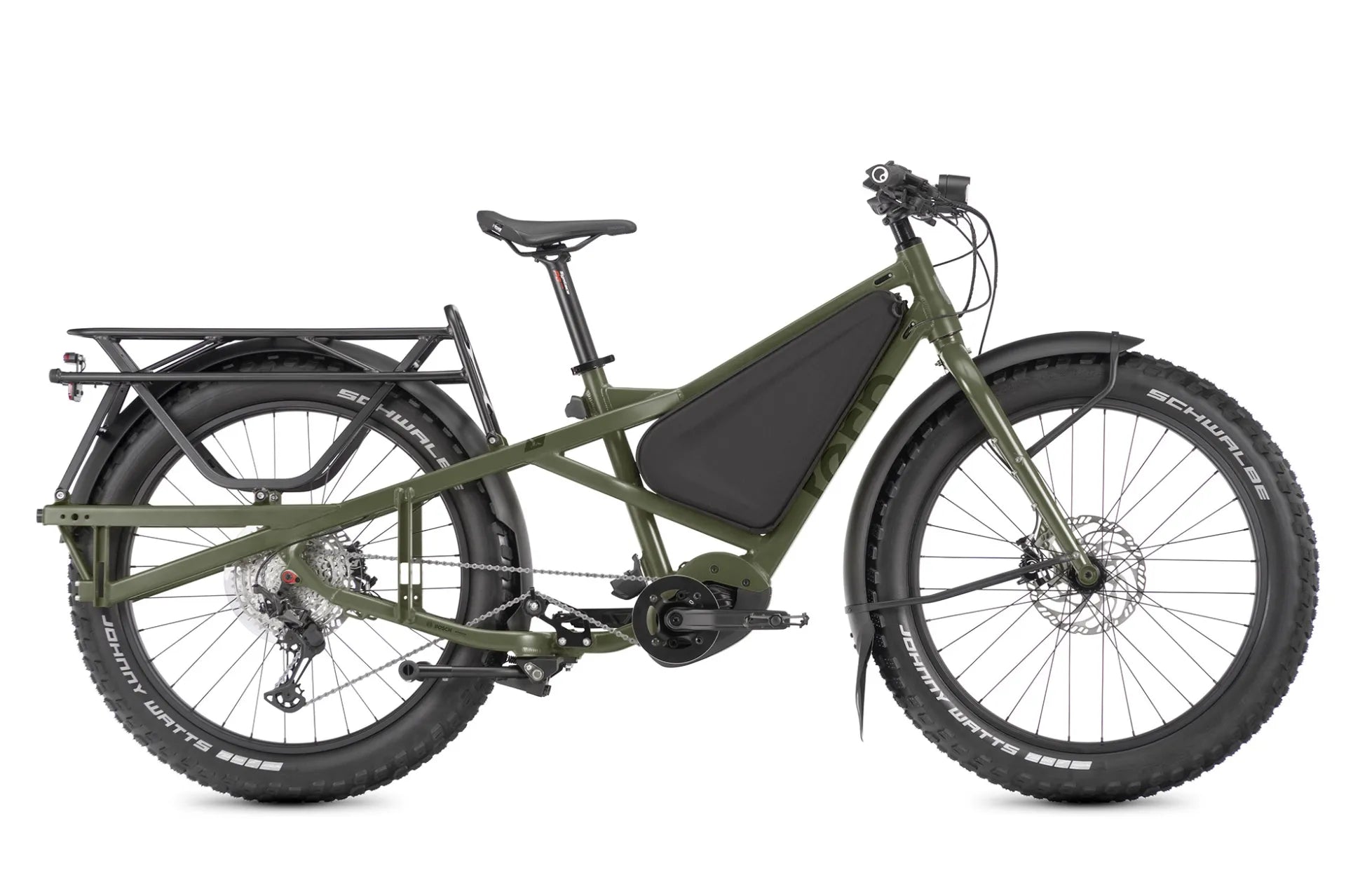

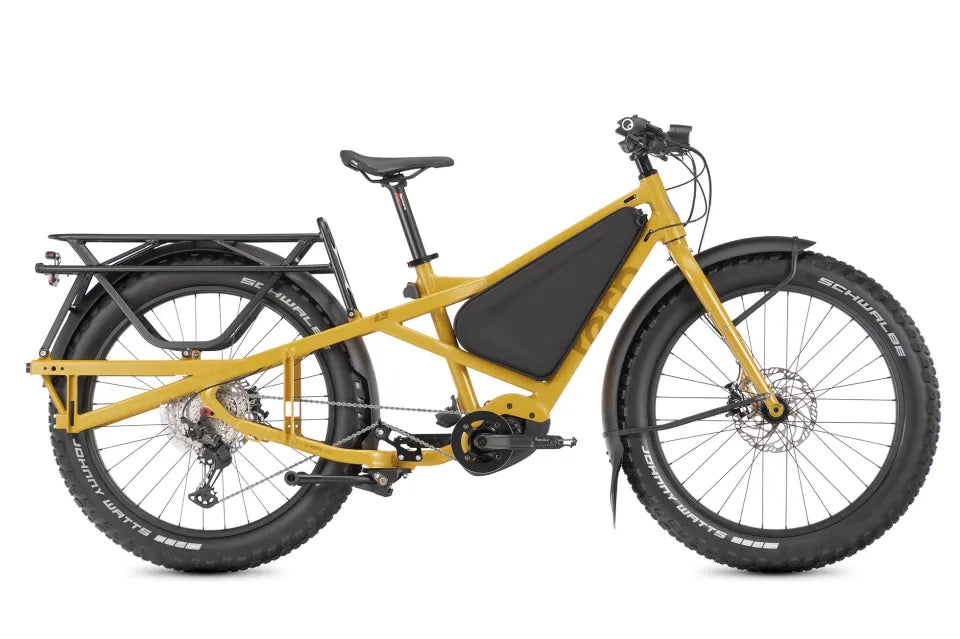

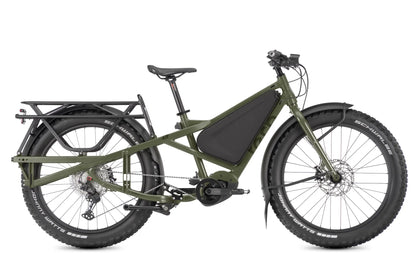

Available colours
Frame sizes
Medium
Rider height: 155–185 cm (5'1"–6'1")
Seat tube: 46 cm
Top tube: 61 cm
Stack: 62.5 cm
Saddle–pedal: 71–99 cm
Weight: 37.1 kg
Large
Rider height: 165–195 cm (5'5"–6'5")
Seat tube: 50.5 cm
Top tube: 64.5 cm
Stack: 65 cm
Saddle–pedal: 76.5–104.5 cm
E-System
| Motor | Bosch Performance Line CX, 85 Nm, 340% support |
| Battery system | Bosch Smart System — Frame Mount battery |
| Battery (equipped) | 725 Wh Bosch Frame Mount Smart System |
| Battery (max single) | 800 Wh Bosch Frame Mount (upgrade) |
| Battery (max dual) | 2×800 Wh = 1600 Wh (dual-battery capable) |
| Range — 725 Wh | 84–146 km (52–91 mi) |
| Range — 800 Wh | 92–161 km (est.) |
| Range — 1600 Wh dual | 184–322 km (114–200 mi est.) |
| Display | Bosch Kiox 300 or Kiox 500 (interchangeable) w/ LED remote, electronic bike lock |
| Connect Module | Bosch ConnectModule — GPS/GSM, eBike Alarm & Tracking (Flow+ subscription) |
| Charger | 100–240V, 4A |
Drivetrain
| Shifter | Shimano Deore, 1×12 speed |
| Rear derailleur | Shimano Deore XT Shadow+ |
| Cassette | Shimano 10–51T, 12-speed |
| Crankset | Tern Orox custom |
| Bottom bracket | Motor integrated |
| Chain | KMC 12-speed for eBike, EPT corrosion-resistant |
| Gear range | 18"–95" (1.48–7.54 m) |
Brakes
| Front brake | Magura MT5, 4-piston hydraulic disc, 203mm rotor |
| Rear brake | Magura MT5, 4-piston hydraulic disc, 203mm rotor |
| Levers | Magura MT5 hydraulic |
Wheels & Tires
| Wheels | Tern Atlas X, ultra-heavy duty, 27.5" |
| Front hub | Tern Atlas X, CNC, disc cooling fins, Boost thru-axle, integrated Tern Tool |
| Rear hub | Tern Atlas X, CNC, disc cooling fins, Boost thru-axle, Syntace X-12 |
| Rims | Tern Atlas X, custom doublewall |
| Tires | Vee Snow Ball, 27.5×4", stud-compatible |
| Spokes | Stainless steel |
Frame & Cockpit
| Frame | Tern Orox, 6061 aluminium, patented design, EFBE certified |
| Fork | Atlas X, butted chromoly steel, EFBE certified |
| Handlebar | Level Nine, AL-7050, 800mm riser, eMTB approved |
| Stem | Level Nine, 45mm (M) / 65mm (L), Syntace VR-3 certified |
| Headset | FSA, 1.5", angular contact bearings |
| Saddle | Ergon SM E-Mountain Sport, CrMo rail |
| Seatpost | Syntace P6 AL7050, 34.9mm, Syntace VR-3 SP-approved |
| Grips | Ergon |
Load & Capacity
| Max GVW (pavement) | 210 kg (462 lb) |
| Max GVW (off-road) | 180 kg (397 lb) |
| Max rider weight | 130 kg (286 lb) |
| Rack capacity | 100 kg (220 lb) |
| Rack | Atlas X, cargo-ready |
| Kickstand | Atlas Kickstand XL, cargo-ready |
Extras
| Front light | Ignis Headlight, 700 lumens, ultra-wide Hi/Lo beam |
| Rear light | LED with G-sensed brake light |
| Fenders | Aluminium, heavy-duty, oversize stays, 27.5" |
| Chainguard | Custom bash guard |
| Paint protection | ToughShield self-healing film (top tube & downtube) |
| Bell | Pitch Plus, brass |
| Pedals | MTB, non-slip |
| Tool | Thru-axle lever, 4/5mm hex, Torx 2.5mm |
Tern Orox S12 (27.5") · Gen 1 · Available in M and L
- Description
OROX S12 · 27.5" · 1×12
Orox S12 (27.5")
All-season, all-terrain electric cargo bike — haul two kids, a passenger, or a full load, anywhere.
$7,699 CAD · Sale Price85 Nm motor torque 725 Wh equipped battery 210 kg max GVW 84–146 km (725 Wh equipped) 92–161 km (800 Wh max single) 184–322 km (1600 Wh dual) estimated range
The Tern Orox S12 is a purpose-built all-terrain electric cargo bike designed to go where most cargo bikes won't. Powered by a Bosch Performance Line CX motor with up to 85 Nm of torque, fitted with fat 27.5" Vee Snow Ball tires, and EFBE-certified to carry up to 210 kg on pavement, the Orox S12 is as capable on trails and snow as it is on city streets. The Shimano Deore XT 1×12 drivetrain, Magura 4-piston hydraulic brakes, and dual-battery readiness make it one of the most serious cargo haulers available — at any price point.
Highlights
Bosch Performance Line CX motor
Up to 85 Nm of torque and 340% support ratio. This is Bosch's flagship cargo motor — built for steep climbs and heavy loads without breaking a sweat.
Dual-battery system — up to 1450 Wh
The standard 725 Wh battery delivers up to 146 km of range. Add a second battery for up to 292 km — enough for multi-day touring or truly long hauls.
Shimano Deore XT 1×12 drivetrain
A 12-speed Deore XT Shadow+ rear derailleur paired with a 10–51T cassette delivers a massive gear range — climbing loaded or descending fast, shifting is always precise.
Magura MT5 4-piston hydraulic brakes
Front and rear 203mm rotors with Magura's powerful MT5 levers and calipers. Fully loaded stops from speed require serious brakes — these deliver.
Vee Snow Ball 27.5×4" tires
Stud-compatible fat tires that handle dirt, gravel, snow, and wet pavement. The Orox lives up to its all-terrain promise right down to the rubber.
EFBE-certified for 210 kg GVW
Certified to carry up to 210 kg (462 lb) gross vehicle weight on pavement and 180 kg (397 lb) off-road. Carry two child passengers, an adult, or a full load of cargo with confidence.
Bosch Smart System with ConnectModule
Built-in GPS/GSM connectivity with eBike Alarm and eBike Tracking when subscribed to Bosch Flow+. Includes a free 12-month trial upon activation.
Bosch Kiox 300 colour display
Bosch Kiox 300 or Kiox 500 (smartphone holder) — splash-proof colour display with LED remote and integrated electronic bike lock. Full control of your ride, ride data, and settings at your fingertips.
Atlas X ultra-heavy duty wheels & rack
Tern's own Atlas X wheelset features CNC hubs with disc cooling fins and Boost thru-axles. The Atlas X rack is rated to 100 kg (220 lb) of cargo capacity.
Ignis 700-lumen headlight + G-sensed brake light
Ultra-wide Hi/Lo beam headlight for genuine trail visibility, plus a rear brake light that activates automatically when you slow down.
ToughShield self-healing paint protection
Factory-applied ToughShield film on the top tube and downtube protects the frame from chips and scratches — and heals minor marks on its own.
Available colours
Highland Yellow Pine GreenFrame sizes
Medium
Rider height: 155–185 cm (5'1"–6'1")
Seat tube: 46 cm
Top tube: 61 cm
Stack: 62.5 cm
Saddle–pedal: 71–99 cm
Weight: 37.1 kg
Large
Rider height: 165–195 cm (5'5"–6'5")
Seat tube: 50.5 cm
Top tube: 64.5 cm
Stack: 65 cm
Saddle–pedal: 76.5–104.5 cm
E-System
| Motor | Bosch Performance Line CX, 85 Nm, 340% support |
| Battery system | Bosch Smart System — Frame Mount battery |
| Battery (equipped) | 725 Wh Bosch Frame Mount Smart System |
| Battery (max single) | 800 Wh Bosch Frame Mount (upgrade) |
| Battery (max dual) | 2×800 Wh = 1600 Wh (dual-battery capable) |
| Range — 725 Wh | 84–146 km (52–91 mi) |
| Range — 800 Wh | 92–161 km (est.) |
| Range — 1600 Wh dual | 184–322 km (114–200 mi est.) |
| Display | Bosch Kiox 300 or Kiox 500 (interchangeable) w/ LED remote, electronic bike lock |
| Connect Module | Bosch ConnectModule — GPS/GSM, eBike Alarm & Tracking (Flow+ subscription) |
| Charger | 100–240V, 4A |
Drivetrain
| Shifter | Shimano Deore, 1×12 speed |
| Rear derailleur | Shimano Deore XT Shadow+ |
| Cassette | Shimano 10–51T, 12-speed |
| Crankset | Tern Orox custom |
| Bottom bracket | Motor integrated |
| Chain | KMC 12-speed for eBike, EPT corrosion-resistant |
| Gear range | 18"–95" (1.48–7.54 m) |
Brakes
| Front brake | Magura MT5, 4-piston hydraulic disc, 203mm rotor |
| Rear brake | Magura MT5, 4-piston hydraulic disc, 203mm rotor |
| Levers | Magura MT5 hydraulic |
Wheels & Tires
| Wheels | Tern Atlas X, ultra-heavy duty, 27.5" |
| Front hub | Tern Atlas X, CNC, disc cooling fins, Boost thru-axle, integrated Tern Tool |
| Rear hub | Tern Atlas X, CNC, disc cooling fins, Boost thru-axle, Syntace X-12 |
| Rims | Tern Atlas X, custom doublewall |
| Tires | Vee Snow Ball, 27.5×4", stud-compatible |
| Spokes | Stainless steel |
Frame & Cockpit
| Frame | Tern Orox, 6061 aluminium, patented design, EFBE certified |
| Fork | Atlas X, butted chromoly steel, EFBE certified |
| Handlebar | Level Nine, AL-7050, 800mm riser, eMTB approved |
| Stem | Level Nine, 45mm (M) / 65mm (L), Syntace VR-3 certified |
| Headset | FSA, 1.5", angular contact bearings |
| Saddle | Ergon SM E-Mountain Sport, CrMo rail |
| Seatpost | Syntace P6 AL7050, 34.9mm, Syntace VR-3 SP-approved |
| Grips | Ergon |
Load & Capacity
| Max GVW (pavement) | 210 kg (462 lb) |
| Max GVW (off-road) | 180 kg (397 lb) |
| Max rider weight | 130 kg (286 lb) |
| Rack capacity | 100 kg (220 lb) |
| Rack | Atlas X, cargo-ready |
| Kickstand | Atlas Kickstand XL, cargo-ready |
Extras
| Front light | Ignis Headlight, 700 lumens, ultra-wide Hi/Lo beam |
| Rear light | LED with G-sensed brake light |
| Fenders | Aluminium, heavy-duty, oversize stays, 27.5" |
| Chainguard | Custom bash guard |
| Paint protection | ToughShield self-healing film (top tube & downtube) |
| Bell | Pitch Plus, brass |
| Pedals | MTB, non-slip |
| Tool | Thru-axle lever, 4/5mm hex, Torx 2.5mm |
Tern Orox S12 (27.5") · Gen 1 · Available in M and L
