Tern - P10 (Gen 3)

Tern GSD P10 Gen 3 – Versatile Electric Cargo Bike

Effortless Hauling Meets Everyday Practicality

The Tern GSD P10 Gen 3 is designed to redefine urban mobility, offering a compact yet powerful solution for families, businesses, and commuters. With its robust build and thoughtful features, the GSD P10 ensures that carrying heavy loads or multiple passengers is both safe and convenient.

Key Features

• Bosch Cargo Line Motor: Delivers up to 85 Nm of torque with 400% pedal assist, ensuring smooth acceleration even under heavy loads.

• Bosch PowerPack 500 Battery: Provides a range of 40–102 km (25–63 miles) on a single charge, suitable for daily commutes and errands.

• Dual-Battery Ready: Optional second battery slot allows for extended range up to 207 km (129 miles).

• Shimano Deore 10-Speed Drivetrain: Offers reliable and efficient gear shifting for various terrains.

• Magura MT5 4-Piston Hydraulic Disc Brakes: Ensure strong and consistent stopping power, even under heavy loads.

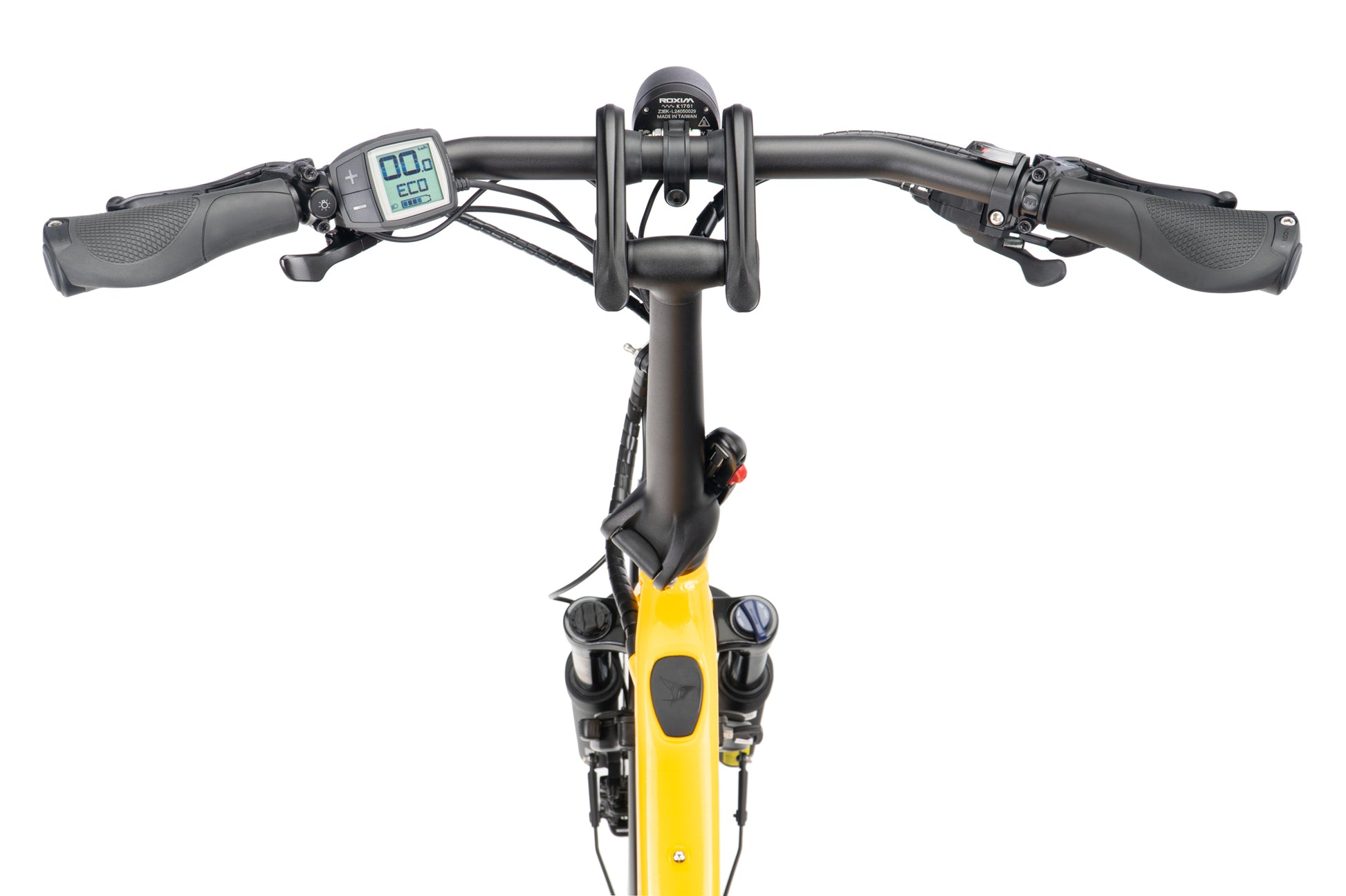

• Adjustable Cockpit: Tool-free adjustable stem and seatpost accommodate riders from 150 to 200 cm (4'11" to 6'7"), making it ideal for shared family use.

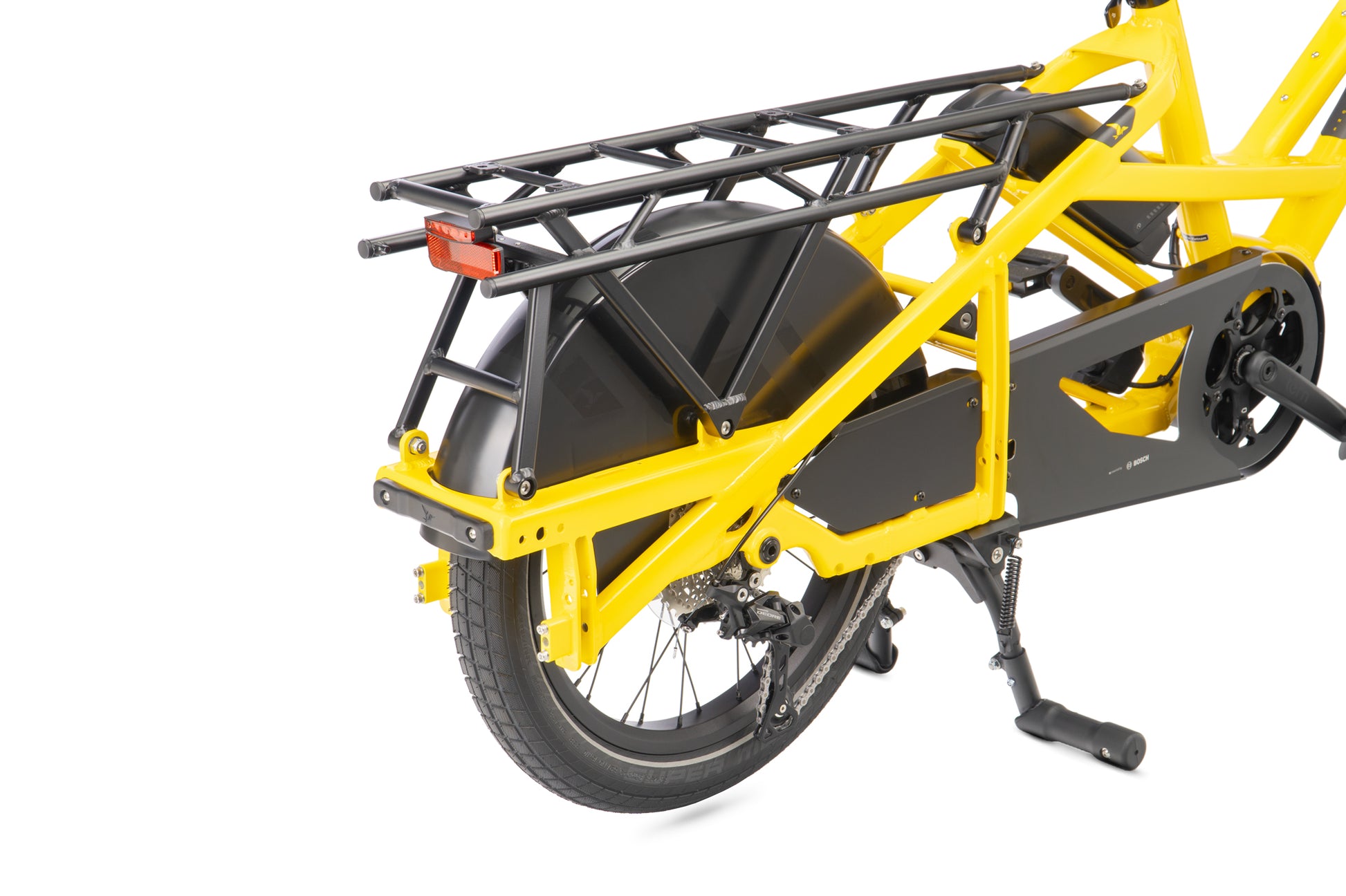

• Robust Cargo Capacity: Rated for a maximum gross vehicle weight of 210 kg (463 lb), with the rear rack supporting up to 100 kg (220 lb), allowing for two child seats or substantial cargo.

• Compact Design: At 186 cm (73.2 inches) in length, it offers the convenience of a standard bicycle footprint, facilitating easy storage and navigation through tight urban spaces.

• Safety-Certified: Frame and fork are tested to meet the German DIN 79010 cargo bike safety standard, ensuring durability and rider confidence.

Specifications

• Frame: Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified

• Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 50 mm travel, EFBE approved

• Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

• Battery: Bosch 500 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 500 Wh max capacity

• Display: Bosch Purion

• Range: 500 Wh: 40–102 km (25–63 mi); 1000 Wh: 82–207 km (51–129 mi)

• Charger: 220V, 4A (EU); 100–240V, 4A (US)

• Drivetrain: Shimano Deore, 1 x 10 spd

• Rear Derailleur: Shimano Deore Shadow+

• Crankset: Tern GSD, forged 6061-AL DH crankarm

• Cassette: Shimano 11–42T, 10 spd

• Chain: KMC 10 spd, for eBike, EPT corrosion-resistant coating

• Brakes: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads

• Brake Levers: Magura MT5 e-stop, hydraulic, with brake light sensor

• Front Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings

• Rear Hub: Tern Atlas, Cooling Fins, Boost Thru-Axle, Syntace X-12 standard

• Rims: Tern Atlas, ultra-wide 36 mm, dual reinforced joint

• Tires: Front: Schwalbe Big Ben Plus, Green Guard puncture protection, Reflex; Rear: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex

• Lighting: Front: Ignis Headlight, Ultra-wide low beam; Rear: RearStop Brake Light, Always on

• Fenders: Front: Aluminum; Rear: GSD wheel guard

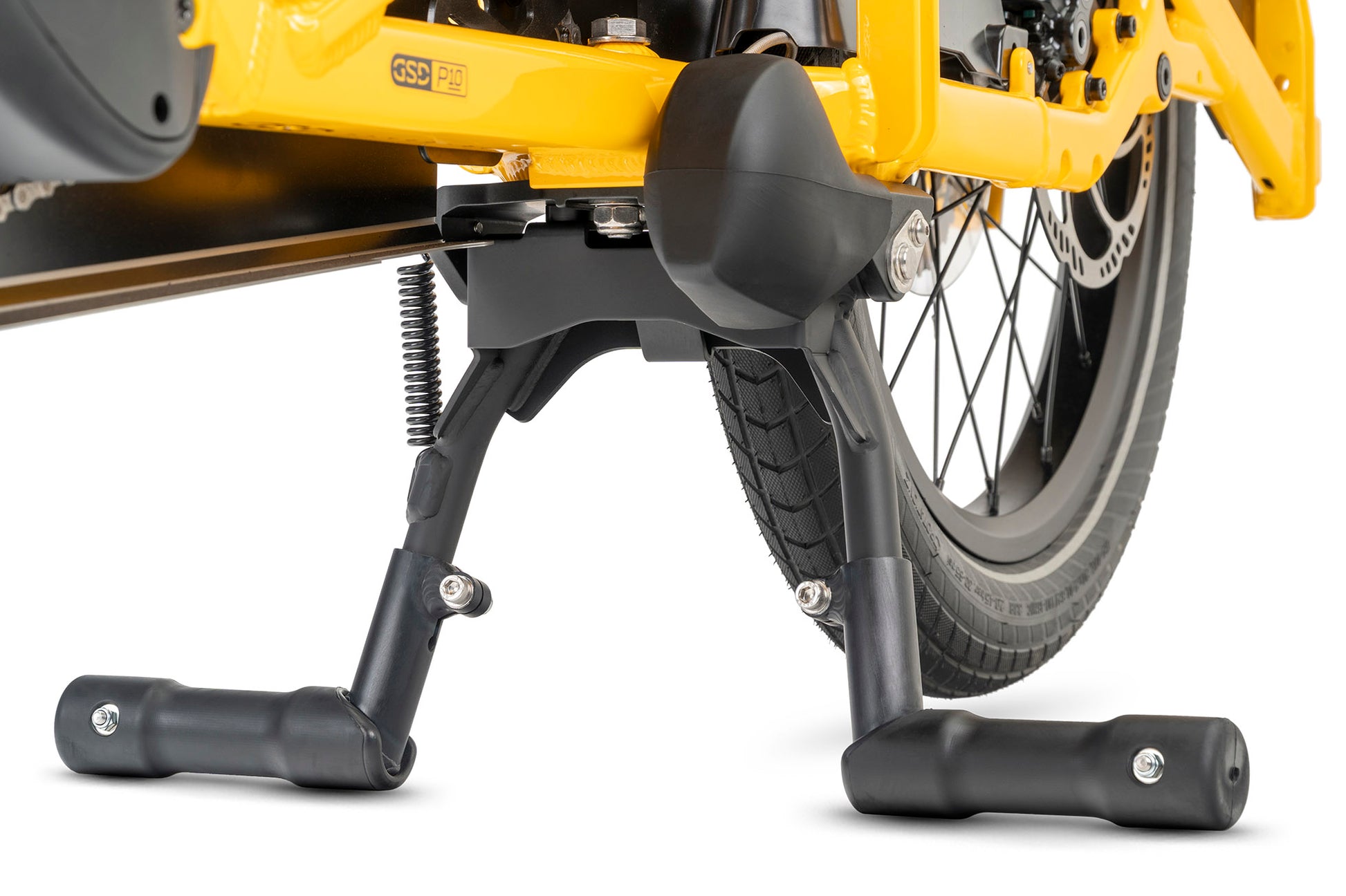

• Kickstand: Atlas Lockstand Gen 2, AutoLock with remote unlock, patented technology

• Weight: Approximately 34.64 kg (76.4 lb)Ideal For

• Family Transport: Safely carry up to two children with compatible child seats and accessories.

• Urban Commuting: Navigate city streets efficiently while carrying groceries, work gear, or other essentials.

• Eco-Friendly Lifestyle: Reduce reliance on cars for short to medium trips, contributing to a greener environment.

The Tern GSD P10 Gen 3 stands out as a practical solution for those seeking a reliable, versatile, and compact electric cargo bike. Its thoughtful design and robust features make it a valuable addition to any urban lifestyle.
