Tern

Tern Quick Haul D8

Name: Tern Quick Haul D8
Brand: Tern
SKU: TERN|CAR|0912
Price: 3330.0 USD
Availability: InStock

$3,330.00 USD

Sale Sold out

Shipping calculated at checkout.

Colour Orange

Product variants

Quantity

What Makes it a D8?

Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
1x8-speed Shimano Altus groupset with trigger shifter

Quick Haul Highlights

Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with an optional front rack
Fits riders 160 - 195 cm (5’3” - 6’5”), and also riders 145 - 180 cm (4’9” - 5'11") when equipped with a shorter, 350 mm Seatpost
Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight

Specifications

GENERAL INFO

SPEEDS:

1 x 8

WEIGHT:

22.8 kg (50.3 lb)

GEAR INCHES:

31" - 95" (2.45 - 7.57 m)

FRAME SIZES:

One size

DISTANCE: SEATPOST TO HANDLEBAR:

60 - 64 cm (23.6 - 25.2 in)

DISTANCE: SADDLE TO PEDAL:

68 - 110 cm (26.8 - 43.3 in)

SUGGESTED RIDER HEIGHT:

160 - 195 cm (63 - 76.8 in)

MAX GROSS VEHICLE WEIGHT:

150 kg (330.7 lb)

MAX RIDER WEIGHT:

120 kg (264.6 lb)

FRAME

FRAME:

Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg

FORK:

Cargo, steel, EFBE approved: 150 kg

COCKPIT

STEM:

Speedlifter, 150 mm extension, 3D Forged stem, 31.8

HEADSET:

TH, cartridge bearings

HANDLEBAR:

Low riser, 31.8, 6061-AL

GRIPS/BAR TAPE:

Velo ergonomic, lock-on

SADDLE:

Velo Comfort

SEATPOST:

31.6 mm, 6061-AL, micro-adjust clamp

SEATPOST CLAMP:

Tern Collar

BRAKES

FRONT BRAKE:

Shimano, hydraulic disc

REAR BRAKE:

Shimano, hydraulic disc

BRAKE LEVERS:

Shimano, hydraulic disc

BRAKE CABLE & HOUSING:

Shimano, hydraulic disc

WHEELS

FRONT HUB:

Shimano disc

REAR HUB:

Shimano disc

SPOKES AND NIPPLES:

Stainless steel

RIMS:

Kinetix Comp, for disc

TIRES:

Schwalbe Big Apple, 55-406, puncture protection, Reflex

TRANSMISSION

SHIFTER(S):

Shimano Altus, 1 x 8 spd, trigger

REAR DERAILLEUR:

Shimano Altus Shadow

CRANKSET:

Tern custom forged 6061-AL crankarm

CASSETTE/FREEWHEEL:

Shimano 11-34T, 8 spd

BOTTOM BRACKET:

Motor integrated

CHAIN:

KMC for eBike, 8 spd

PEDALS:

Urban with a non-slip surface

SHIFTER CABLE & HOUSING:

E-SYSTEM

MOTOR:

Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

BATTERY:

Bosch PowerPack 400

DISPLAY:

Bosch Purion

RANGE:

400 Wh: 54 - 105 km (33.6 - 65.2 mi)

CHARGER:

Compact Charger, 100-240V, 2A

BELLS & WHISTLES

BELL:

Aluminum

CHAINGUARD:

SKS Chainblade

KICKSTAND:

Pletscher design, rear mount

LUGGAGE SOCKET:

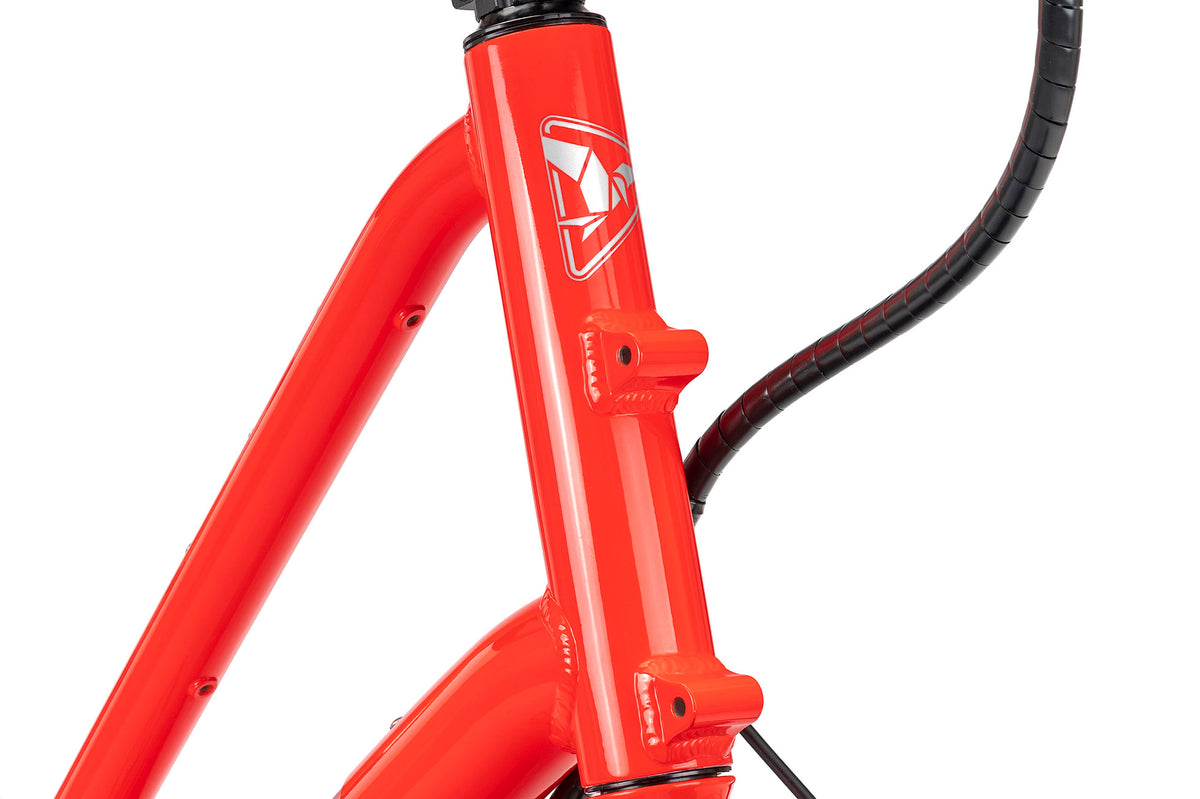

Combo Mount

FRONT LIGHT:

Herrmans, 120 lumens

REAR LIGHT:

Herrmans

FENDERS:

Chrome plastic, stainless hardware

RACK(S):

Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity

Videos

Description
Specifications
Videos

Description

What Makes it a D8?

Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
1x8-speed Shimano Altus groupset with trigger shifter

Quick Haul Highlights

Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with an optional front rack
Fits riders 160 - 195 cm (5’3” - 6’5”), and also riders 145 - 180 cm (4’9” - 5'11") when equipped with a shorter, 350 mm Seatpost
Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight

Specifications

GENERAL INFO

SPEEDS: 1 x 8 WEIGHT: 22.8 kg (50.3 lb) GEAR INCHES: 31" - 95" (2.45 - 7.57 m) FRAME SIZES: One size DISTANCE: SEATPOST TO HANDLEBAR: 60 - 64 cm (23.6 - 25.2 in) DISTANCE: SADDLE TO PEDAL: 68 - 110 cm (26.8 - 43.3 in) SUGGESTED RIDER HEIGHT: 160 - 195 cm (63 - 76.8 in) MAX GROSS VEHICLE WEIGHT: 150 kg (330.7 lb) MAX RIDER WEIGHT: 120 kg (264.6 lb) FRAME FRAME: Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg FORK: Cargo, steel, EFBE approved: 150 kg COCKPIT STEM: Speedlifter, 150 mm extension, 3D Forged stem, 31.8 HEADSET: TH, cartridge bearings HANDLEBAR: Low riser, 31.8, 6061-AL GRIPS/BAR TAPE: Velo ergonomic, lock-on SADDLE: Velo Comfort SEATPOST: 31.6 mm, 6061-AL, micro-adjust clamp SEATPOST CLAMP: Tern Collar BRAKES FRONT BRAKE: Shimano, hydraulic disc REAR BRAKE: Shimano, hydraulic disc BRAKE LEVERS: Shimano, hydraulic disc BRAKE CABLE & HOUSING: Shimano, hydraulic disc WHEELS FRONT HUB: Shimano disc REAR HUB: Shimano disc SPOKES AND NIPPLES: Stainless steel RIMS: Kinetix Comp, for disc TIRES: Schwalbe Big Apple, 55-406, puncture protection, Reflex TRANSMISSION SHIFTER(S): Shimano Altus, 1 x 8 spd, trigger REAR DERAILLEUR: Shimano Altus Shadow CRANKSET: Tern custom forged 6061-AL crankarm CASSETTE/FREEWHEEL: Shimano 11-34T, 8 spd BOTTOM BRACKET: Motor integrated CHAIN: KMC for eBike, 8 spd PEDALS: Urban with a non-slip surface SHIFTER CABLE & HOUSING: SP E-SYSTEM MOTOR: Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) BATTERY: Bosch PowerPack 400 DISPLAY: Bosch Purion RANGE: 400 Wh: 54 - 105 km (33.6 - 65.2 mi) CHARGER: Compact Charger, 100-240V, 2A

BELLS & WHISTLES

BELL: Aluminum CHAINGUARD: SKS Chainblade KICKSTAND: Pletscher design, rear mount LUGGAGE SOCKET: Combo Mount FRONT LIGHT: Herrmans, 120 lumens REAR LIGHT: Herrmans FENDERS: Chrome plastic, stainless hardware

RACK(S):

Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity

Videos

View full details

Note:

Bikes that are prebuilt in store do not have their stock reflected online. We do our best to ensure that the information on this site is up to date and accurate. However, component changes, and stock changes do occur for various reasons at a fast pace and there may be brief delays on site updates. If there is a product you have questions about contact us at info@powerinmotion.ca or call 403-233-8841 to speak with a representative.
