Spartan Rack 74mm · Low-Riding Front Pannier Rack · 10 kg · Alloy 6061 · Stainless Hardware

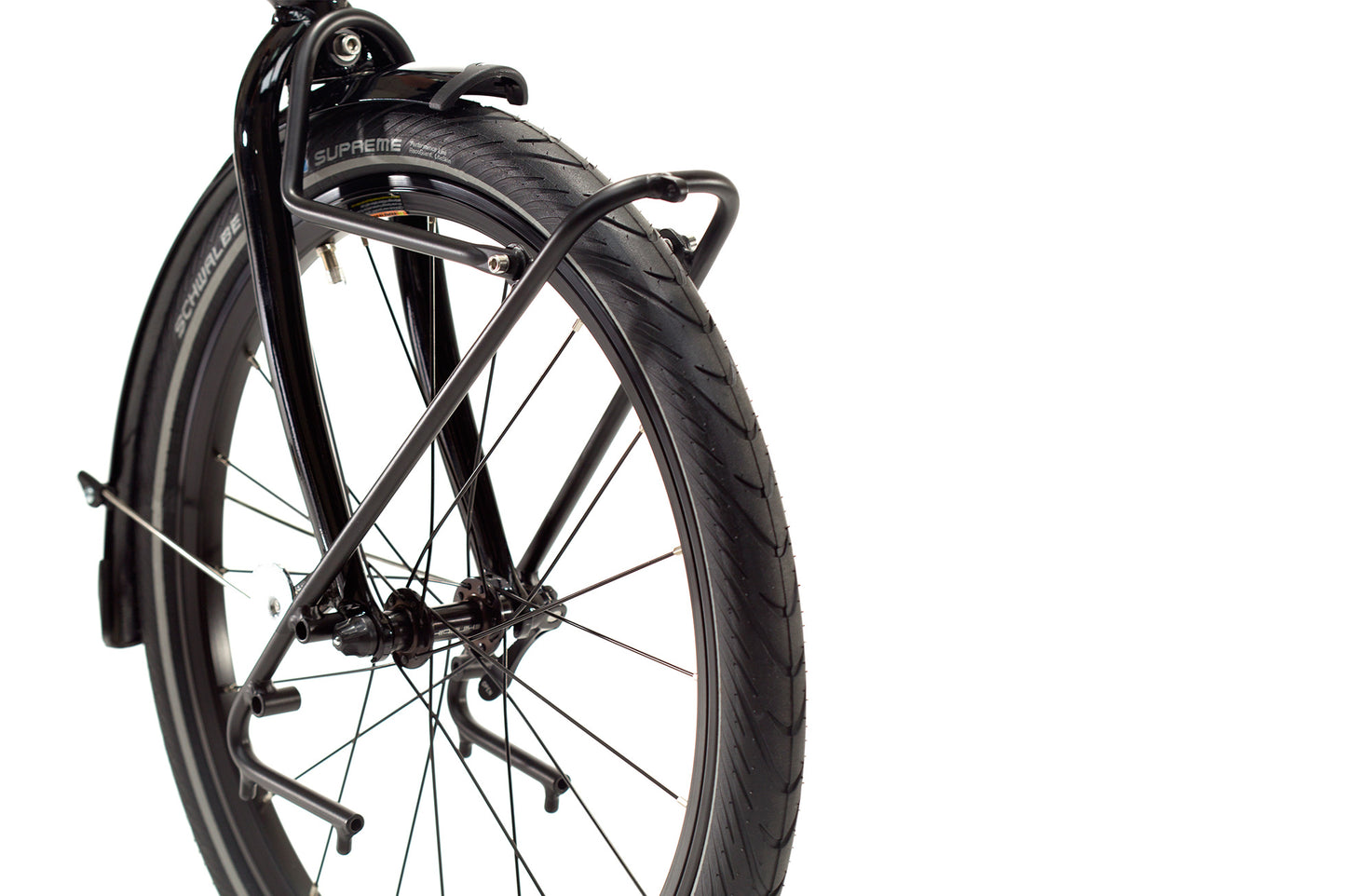

Tern Spartan Rack 74mm
A low-riding front pannier rack built for load stability — large-gauge tubular 6061 aluminium keeps it stiff under weight, while the low centre of gravity keeps the bike predictable when front panniers are loaded. Fits most small to medium panniers.
The Tern Spartan Rack 74mm is a front pannier rack — it carries side-loading panniers that hang off both sides of the rack, not crates or strapped platform cargo. The low-riding design positions panniers as low as possible on the front of the bike, keeping the centre of gravity down and the bike stable under load. Large-gauge tubular 6061 aluminium provides the stiffness needed to carry loaded panniers without flex. Stainless steel mounting hardware resists corrosion. The adjustable mounting system fits across multiple Tern models — confirm your specific bike using Tern's compatibility checker.
Highlights
Low-riding design — low centre of gravity under load
The rack positions panniers as close to the hub as geometry allows. Lower weight placement means less pendulum effect when panniers are loaded — the bike is more stable, less prone to swaying through corners, and easier to handle at low speeds in traffic.
Large-gauge tubular 6061 aluminium — stiff under weight
Larger tube diameter means more torsional stiffness for a given wall thickness. Loaded front panniers introduce lateral forces through the rack — flex in a lighter rack allows the panniers to sway and eventually fatigue the rack at the mounting points. The Spartan's tube gauge is chosen to resist this.
Small to medium pannier compatibility
Fits most small and medium-size front panniers with standard rack hooks. Full-size rear panniers are typically too large for a front rack — check your pannier's compatibility with the rack dimensions (261 × 132 × 391 mm) before purchasing.
Stainless steel mounting hardware
All mounting bolts and hardware are stainless steel — resists corrosion in wet riding conditions and won't seize to the aluminium rack body over time. Important for a component that's infrequently removed and lives in a splash zone.
Adjustable mounting — fits multiple Tern models
The mounting system adjusts to accommodate the fork geometry of multiple Tern bike models rather than being fixed to a single platform. Verify your specific model with Tern's compatibility checker — the "74mm" designation refers to a key mounting dimension that must match your fork.
Specifications
| Brand | Tern |
| Model | Spartan Rack 74mm |
| Type | Low-riding front pannier rack |
| Load capacity | 10 kg (22 lb) |
| Rack weight | 272g (0.6 lb) per set |
| Material | Aluminium 6061 — large-gauge tubular |
| Hardware | Stainless steel |
| Dimensions | 261 × 132 × 391 mm (10.3 × 5.2 × 15.4 in) |
| Pannier fit | Most small to medium front panniers |
| Mount type | Adjustable — fork-mounted, 74mm dimension |
| Compatibility | Most Tern bikes — verify with Tern compatibility checker |
Tern Spartan Rack 74mm · Low-Riding Front Pannier Rack · 10 kg · Alloy 6061 · Stainless Hardware
- Description
Spartan Rack 74mm · Low-Riding Front Pannier Rack · 10 kg · Alloy 6061 · Stainless Hardware
Tern Spartan Rack 74mm
A low-riding front pannier rack built for load stability — large-gauge tubular 6061 aluminium keeps it stiff under weight, while the low centre of gravity keeps the bike predictable when front panniers are loaded. Fits most small to medium panniers.
$58 CADPannier rack — not a platform rack. The Spartan Rack carries side-loading panniers, not crates or platform cargo. It is a different type of front rack from the Hauler, Transporteur, and Pack Rack. Verify compatibility with your Tern model using Tern's compatibility checker before ordering. 10 kg load capacity (22 lb) Low COG for loaded stability 272g rack weight (set)
The Tern Spartan Rack 74mm is a front pannier rack — it carries side-loading panniers that hang off both sides of the rack, not crates or strapped platform cargo. The low-riding design positions panniers as low as possible on the front of the bike, keeping the centre of gravity down and the bike stable under load. Large-gauge tubular 6061 aluminium provides the stiffness needed to carry loaded panniers without flex. Stainless steel mounting hardware resists corrosion. The adjustable mounting system fits across multiple Tern models — confirm your specific bike using Tern's compatibility checker.
Highlights
Low-riding design — low centre of gravity under load
The rack positions panniers as close to the hub as geometry allows. Lower weight placement means less pendulum effect when panniers are loaded — the bike is more stable, less prone to swaying through corners, and easier to handle at low speeds in traffic.
Large-gauge tubular 6061 aluminium — stiff under weight
Larger tube diameter means more torsional stiffness for a given wall thickness. Loaded front panniers introduce lateral forces through the rack — flex in a lighter rack allows the panniers to sway and eventually fatigue the rack at the mounting points. The Spartan's tube gauge is chosen to resist this.
Small to medium pannier compatibility
Fits most small and medium-size front panniers with standard rack hooks. Full-size rear panniers are typically too large for a front rack — check your pannier's compatibility with the rack dimensions (261 × 132 × 391 mm) before purchasing.
Stainless steel mounting hardware
All mounting bolts and hardware are stainless steel — resists corrosion in wet riding conditions and won't seize to the aluminium rack body over time. Important for a component that's infrequently removed and lives in a splash zone.
Adjustable mounting — fits multiple Tern models
The mounting system adjusts to accommodate the fork geometry of multiple Tern bike models rather than being fixed to a single platform. Verify your specific model with Tern's compatibility checker — the "74mm" designation refers to a key mounting dimension that must match your fork.
Specifications
| Brand | Tern |
| Model | Spartan Rack 74mm |
| Type | Low-riding front pannier rack |
| Load capacity | 10 kg (22 lb) |
| Rack weight | 272g (0.6 lb) per set |
| Material | Aluminium 6061 — large-gauge tubular |
| Hardware | Stainless steel |
| Dimensions | 261 × 132 × 391 mm (10.3 × 5.2 × 15.4 in) |
| Pannier fit | Most small to medium front panniers |
| Mount type | Adjustable — fork-mounted, 74mm dimension |
| Compatibility | Most Tern bikes — verify with Tern compatibility checker |
Tern Spartan Rack 74mm · Low-Riding Front Pannier Rack · 10 kg · Alloy 6061 · Stainless Hardware
