Tern
Tern - Vektron P10
Tern - Vektron P10
Out of stock
Couldn't load pickup availability
Vektron P10 · Gen 4 · 1×10 · Shimano Deore · Bosch BES2 Performance
Vektron P10
The lighter, chain-drive Vektron — Shimano Deore 10-speed, Bosch BES2 power, folds in 10 seconds, and saves $600 over the P5i.
The Vektron P10 is the more affordable entry into the Gen 4 Vektron lineup — the same OCL+ frame, same Bosch BES2 Performance motor, same 400 Wh battery (upgradeable to 500 Wh), same Magura MT4 brakes, and the same ability to fold in 10 seconds and roll through a train station. The difference is in the drivetrain: the P10 runs a Shimano Deore 1×10 derailleur system with a wide 30"–97" gear range, which makes it lighter (22.2 kg vs 23.6 kg) and $600 less than the P5i. If you're happy to maintain a chain and want more gear range across a wider spread of speeds, the P10 is the practical choice.
Highlights

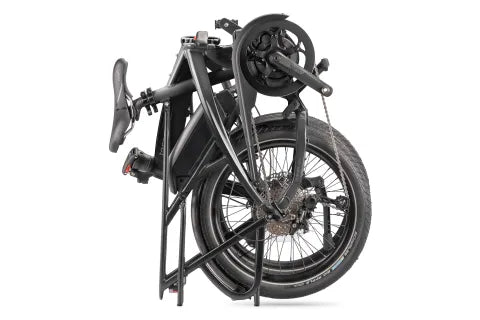

Folds in 10 seconds — stands upright, rolls when folded
Same Gen 4 fold as the P5i — a few lever flips to 41×86×68 cm. The rear rack ends let it stand independently or roll on one hand through a train station, elevator, or office. No carrying needed.
Shimano Deore 1×10 — wide 30"–97" gear range
Shimano Deore Shadow+ rear derailleur with 11–36T cassette delivers a wider 30"–97" gear range than the P5i's 34"–90", making it more capable on steep hills and faster on open roads. Jagwire LEX-SL cable housing for crisp, precise shifts.
Bosch BES2 Performance motor — 65 Nm, 300% assist
The same Bosch BES2 Performance motor as the P5i — 65 Nm of smooth, natural-feeling assist. The Bosch Purion display is more minimal than the P5i's Intuvia — compact and thumb-operated, keeping the handlebars clean and uncluttered. Upgrade to the 500 Wh PowerPack for extended range — both battery sizes are interchangeable on BES2 bikes.
22.2 kg — lighter than the P5i
At 22.2 kg (48.9 lb), the P10 is 1.4 kg lighter than the P5i — a meaningful difference when carrying a folded bike up stairs, onto a train, or into a van. The derailleur system is simply lighter than the Nexus IGH.
Magura MT4 hydraulic disc brakes
The same Magura MT4 hydraulics as the P5i — powerful, consistent, mineral oil-based, and effortless in rain, snow, or mud. No compromise on braking between the two models.
OCL+ frame joint — engineered beyond ISO 4210
Tern's Gen 4 OCL+ hinge exceeds ISO 4210 and EN 15194 requirements — single-shaft design, advanced welding, robust gussets, and four igus bearings. The fold stays stiff, smooth, and secure ride after ride.
Tern Porter+ saddle — GripPad + PrimeGel padding
The P10 gets the upgraded Porter+ by Velo saddle with Tern's patented GripPad design and PrimeGel cushioning — a noticeably more comfortable seat than the Upright on the P5i.
Atlas V rear rack — multi-system compatible, 27 kg
Integrated 8-point Atlas V rack, 27 kg capacity, compatible with KLICKfix, Racktime SNAPIT 2.0, and Ortlieb Quick-Lock 2.1 & 2.2. Hidden luggage socket for front-mounted accessories. Stands upright on rack ends when folded.
EN 15194 + UL 2849 certified · 10-year warranty
Third-party tested to EN 15194 and UL 2849 electrical safety standards. 10-year limited warranty on frame, fork, and handlepost (register with Tern Care), plus a 7-year parts availability pledge for motor and battery.
Available colours
E-System
| Motor | Bosch BES2 Performance, 65 Nm, 300% assist, max 32 km/h |
| Battery system | Bosch BES2 (legacy system) |
| Battery (equipped) | 400 Wh Bosch PowerPack, removable |
| Battery (max single) | 500 Wh Bosch PowerPack (upgrade available) |
| Dual-battery | Not available |
| Range — 400 Wh | 45–112 km (28–70 mi) |
| Range — 500 Wh | ~56–140 km (est.) |
| Display | Bosch Purion, compact thumb control |
| Charger | 100–240V, 4A |
Drivetrain
| Shifter | Shimano Deore, 1×10-speed |
| Rear derailleur | Shimano Deore Shadow+ |
| Cassette | Shimano 11–36T, 10-speed |
| Crankset | Tern custom, forged 6061-AL crankarm |
| Bottom bracket | Motor integrated |
| Chain | 10-speed DHT for eBike, GST corrosion resistant coating |
| Gear range | 30"–97" (2.36–7.72 m) |
| Pedals | MKS EZY |
| Shifter cable | Jagwire LEX-SL, slick treatment, alloy ferrules |
Brakes
| Front brake | Magura MT4 hydraulic disc |
| Rear brake | Magura MT4 hydraulic disc |
| Levers | Magura hydraulic disc |
Wheels & Tires
| Wheel size | 20" (406) |
| Front hub | Novatec, sealed cartridge bearing, disc |
| Rear hub | Novatec, sealed cartridge bearing, disc |
| Rims | Kinetix Comp, for disc |
| Tires | Schwalbe Big Apple Performance Line, 55-406, puncture protection, Reflex |
| Spokes | Stainless steel, double-butted |
Frame & Cockpit
| Frame | Tern Vektron Gen 4, 6061-AL hydroformed, OCL+ joint, 3 patented technologies |
| Fork | Tern Tarsus, 6061-AL hydroformed |
| Handlepost | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320mm |
| Stem | Tern Andros, adjustable, forged, patented technology |
| Handlebar | Kinetix Comp, double-butted 6061-AL, Tern Andros adapted |
| Headset | Tern Flux by FSA, cartridge bearings, Physis integrated |
| Saddle | Tern Porter+ by Velo, patented GripPad design, PrimeGel padding |
| Seatpost | Tern Telescope, 34.9/30.9mm |
| Grips | Ergon |
Load & Capacity
| Max GVW | 125 kg (276 lb) |
| Max rider weight | 105 kg (232 lb) |
| Rack capacity | 27 kg (59.5 lb) |
| Rack | Atlas V — integrated 8-point mounting, KLICKfix / Racktime SNAPIT 2.0 / Ortlieb Quick-Lock 2.1 & 2.2 compatible |
| Frame lock | ABUS, keyed-alike with Bosch battery |
| Clip system | Magnetix 3.0 |
| Rider height range | 147–195 cm (4'10"–6'5") |
| Frame sizes | One size |
Dimensions & Folding
| Folded size | 41×86×68 cm (16.1×33.9×26.8 in) |
| Fold time | ~10 seconds |
| Weight | 22.2 kg (48.9 lb) |
Extras
| Front light | Tern Valo Direct, 190 lumens |
| Rear light | Herrmans H-Trace, for eBike |
| Fenders | SplashGuard, stainless hardware |
| Chainguard | SKS Chainblade |
| Kickstand | Ursus, rear mount |
| Luggage socket | Yes |
| Warranty | 10-year limited (frame, fork, handlepost) — register with Tern Care |
| Parts availability | 7-year guarantee (motor, battery, charger) |
Tern Vektron P10 · Gen 4 · One Size · Cosmic Black
