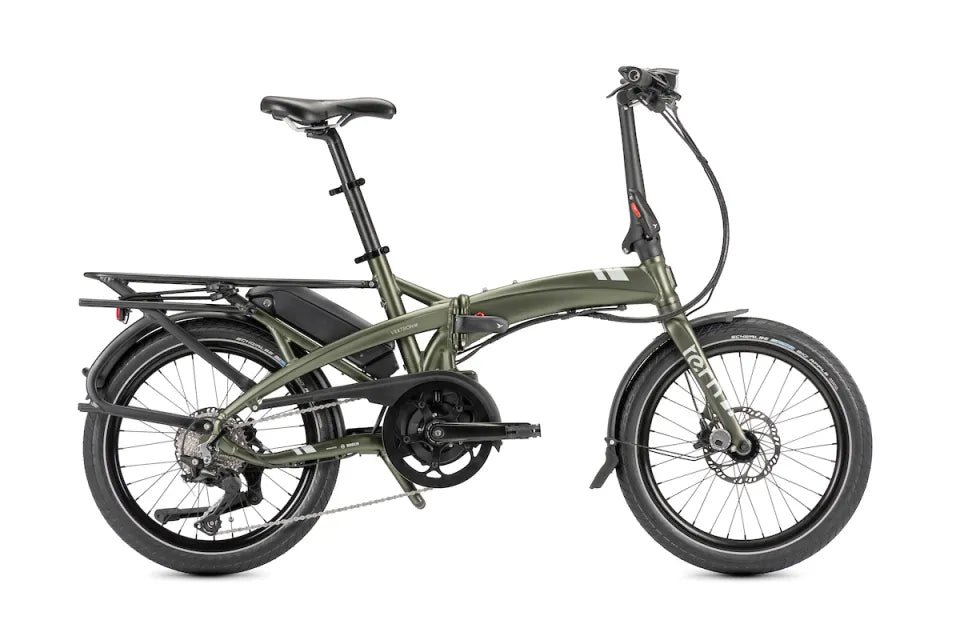

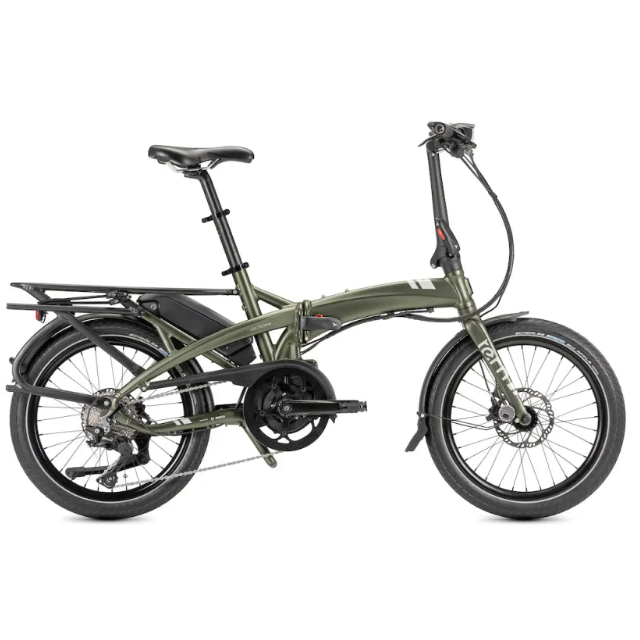

Tern - Vektron S10
Tern - Vektron S10
Regular price
$4,924.99 CAD
Regular price
$0.00 CAD
Sale price
$4,924.99 CAD
Unit price
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
- Description
- Specifications
"THE ACCELERATOR"
-
New colors and updated styling
-
Upgraded to the Bosch Performance electric drivetrain for 300% more assistance and 65 Nm of torque
-
Updated frame with a reclining battery for a lower center of gravity and a better ride
-
Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
-
Integrated Atlas V Rack™ works seamlessly with Thule Yepp Maxi and Nexxt Maxi child seats—no adapters needed
-
Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family
-
Fits easily on buses, subways, and taxis for electric multi-modal commuting
|
GENERAL INFO
SPEEDS: 1 x 10
WEIGHT: 22.1 kg (48.7 lb)
GEAR INCHES: 30" - 97" (2.36 - 7.72 m)
FOLDING SIZE: 41 × 86 × 68 cm (16.1 × 33.9 × 26.8 in)
FOLDING TIME: 10 sec
FRAME SIZES: One size
DISTANCE: SEATPOST TO HANDLEBAR: 62 - 69 cm (24.4 - 27.2 in)
DISTANCE: SADDLE TO PEDAL: 67 - 110 cm (26.4 - 43.3 in)
SUGGESTED RIDER HEIGHT: 147 - 195 cm (57.9 - 76.8 in)
MAX GROSS VEHICLE WEIGHT: 125 kg (275.6 lb)
MAX RIDER WEIGHT: 105 kg (231.5 lb)
|
|
FRAME
FRAME: Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
FORK: Tern Tarsus, 6061-Al, hydroformed
|
|
COCKPIT
HANDLEPOST: Tern Physis 3D, 3D forged, 5 patented technologies
STEM: Tern Andros, adjustable, forged construction, patented technology
HEADSET: Flux Pro, angular contact bearings, Physis integrated
HANDLEBAR: Kinetix Comp, double-butted 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE: Ergon
SADDLE: Tern Porter+, patented GripPad design, PrimeGel padding
SEATPOST: Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP: Tern Collar, 6061-AL, 2pc
|
|
BRAKES
FRONT BRAKE: Magura MT4, hydraulic disc
REAR BRAKE: Magura MT4, hydraulic disc
BRAKE LEVERS: Magura, hydraulic disc
BRAKE CABLE & HOUSING: Magura, hydraulic disc
|
|
WHEELS
FRONT HUB: Novatec, sealed cartridge bearing, disc
REAR HUB: Novatec, sealed cartridge bearing, disc
SPOKES AND NIPPLES: Stainless steel, double-butted
RIMS: Kinetix Comp, for disc
TIRES: Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
|
|
TRANSMISSION
SHIFTER(S): Shimano Deore, 1 x 10 spd
REAR DERAILLEUR: Shimano Deore Shadow+
CRANKSET: Vektron custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL: Shimano 11-36T, 10 spd
BOTTOM BRACKET: Motor integrated
CHAIN: 10 spd, DHT for eBike, GST corrosion resistant coating
PEDALS: MKS EZY
SHIFTER CABLE & HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules
|
|
E-SYSTEM
MOTOR: Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY: Bosch PowerPack 400 Wh
DISPLAY: Bosch Purion, 4 mode selectable, walk assist
RANGE: 400 Wh: 53 -106 km (34-68 mi)
CHARGER: 220V, 4A (EU); 100-240V, 4A (US)
|
|
BELLS & WHISTLES
BELL: Aluminum
CHAINGUARD: SKS Chainblade
KICKSTAND: URSUS, rear mount
CLIP SYSTEM: Magnetix 3.0
LUGGAGE SOCKET: Yes
FRONT LIGHT: Tern Valo Direct, 190 lumens
REAR LIGHT: Herrmans H-Trace, for eBike
FENDERS: SKS, stainless hardware
RACK(S): Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)
|
