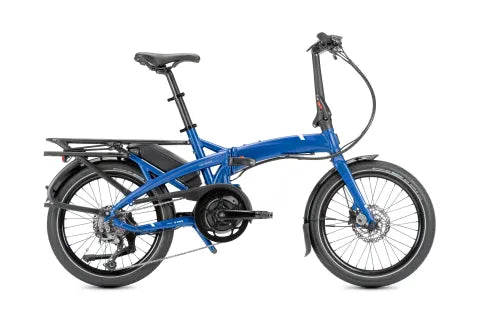

Tern - Vektron Q9
Tern - Vektron Q9
En rupture de stock
Impossible de charger la disponibilité du service de retrait
Vektron Q9 · Gen 3 · 1×9 · Shimano Alivio · Bosch Active Line Plus
Vektron Q9
The most affordable Vektron — all the folding confidence and Bosch power of the platform, in a lighter, quieter package at a lower price.
The Vektron Q9 is the entry point to the Vektron Gen 3 lineup — the most affordable way to get the full Vektron folding experience. It runs the Bosch Active Line Plus motor (50 Nm, 270% assist), which is lighter and quieter than the Performance motor on the S10, and tuned for a natural, smooth commuting feel rather than aggressive assist. Paired with Shimano Alivio 1×9 shifting, Shimano hydraulic disc brakes, and the same 7005-AL OCL+ frame, 400 Wh battery, Atlas V rack, and 10-second fold as the rest of the Gen 3 Vektron lineup. Updated with new Satin Blue colourway for 2026.
Highlights

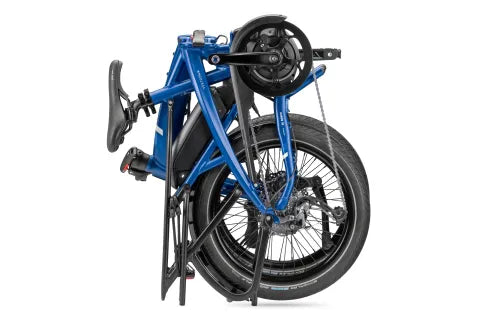

Folds in 10 seconds — stands upright, rolls when folded
Same OCL+ Gen 3 fold as the S10 — 42×86×68.5 cm in about 10 seconds. Stands on its rack ends or rolls on one hand through a train station, elevator, or office. The fundamental Vektron experience, at the best price in the range.
Bosch Active Line Plus — 50 Nm, quiet & natural-feeling
The Active Line Plus is Bosch's smooth, low-vibration commuter motor — 50 Nm of torque and 270% pedal assist with a quiet, seamless feel. Lighter than the Performance motor on the S10. The Bosch Purion display with walk assist keeps things clean and simple.
Shimano Alivio 1×9 — 33"–97" gear range
Shimano Alivio Shadow rear derailleur with 11–32T cassette and Jagwire LEX-SL cable housing. The 33"–97" gear range covers urban riding and gentle hills comfortably, with smooth, reliable trigger shifting.
Shimano hydraulic disc brakes
Front and rear Shimano hydraulic disc brakes deliver reliable all-weather stopping power in rain, mud, and cold — with minimal lever effort. A meaningful step up from mechanical discs.
OCL+ frame joint — EN 15194 certified
The Gen 3 OCL+ hinge is built to exceed ISO 4210 and EN 15194 requirements — single-shaft design, advanced welding, robust gussets. The same structural foundation as the S10 and every other Vektron Gen 3.
Reclining battery for lower centre of gravity
The Gen 3 frame positions the 400 Wh PowerPack at a reclined angle, lowering the centre of gravity for more stable handling when riding loaded or rolling the folded bike through a station. Upgrade to the 500 Wh PowerPack for extended range — both sizes are interchangeable on legacy Bosch PowerPack bikes.
Atlas V rack — Thule Yepp Maxi compatible, 27 kg
Integrated 8-point Atlas V Rack rated to 27 kg. Works with Thule Yepp Maxi and Dash RM child seats without adapters, and is KLICKfix compatible for panniers and bags.
Adjustable cockpit — fits 147–195 cm, no tools
Physis 3D handlepost and Andros adjustable stem with Telescope seatpost resize without tools to fit riders from 4'10" to 6'5". One bike, the whole family.
Available colours
E-System
| Motor | Bosch Active Line Plus, 50 Nm, 270% assist, max 32 km/h |
| Battery system | Bosch PowerPack (legacy system) |
| Battery (equipped) | 400 Wh Bosch PowerPack, removable |
| Battery (max single) | 500 Wh Bosch PowerPack (upgrade available) |
| Dual-battery | Not available |
| Range — 400 Wh | 55–110 km (35–70 mi) |
| Range — 500 Wh | ~69–138 km (est.) |
| Display | Bosch Purion, 4-mode selectable, walk assist |
| Charger | 100–240V, 4A |
Drivetrain
| Shifter | Shimano Alivio, 1×9-speed, trigger |
| Rear derailleur | Shimano Alivio Shadow |
| Cassette | Shimano 11–32T, 9-speed |
| Crankset | Vektron custom, forged 6061-AL crankarm |
| Bottom bracket | Motor integrated |
| Chain | 9-speed DHT for eBike, GST corrosion resistant coating |
| Gear range | 33"–97" (2.65–7.72 m) |
| Pedals | MKS EZY |
| Shifter cable | Jagwire LEX-SL, slick treatment, alloy ferrules |
Brakes
| Front brake | Shimano hydraulic disc |
| Rear brake | Shimano hydraulic disc |
| Levers | Shimano hydraulic disc |
Wheels & Tires
| Wheel size | 20" (406) |
| Front hub | Shimano disc |
| Rear hub | Shimano disc |
| Rims | Kinetix Comp, for disc |
| Tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Spokes | Stainless steel |
Frame & Cockpit
| Frame | Tern Vektron Gen 3, 7005-AL hydroformed, OCL+ joint, 3 patented technologies |
| Fork | Tern Tarsus, 6061-AL hydroformed |
| Handlepost | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320mm |
| Stem | Tern Andros, adjustable, forged, patented technology |
| Handlebar | Flat bar, 6061-AL, Tern Andros adapted |
| Headset | Tern Flux, cartridge bearings, Physis integrated |
| Saddle | Tern Porter, patented GripPad design |
| Seatpost | Tern Telescope, 34.9/30.9mm, 2014-AL |
| Grips | Velo ergonomic, lock-on |
Load & Capacity
| Max GVW | 125 kg (276 lb) |
| Max rider weight | 105 kg (232 lb) |
| Rack capacity | 27 kg (60 lb) |
| Rack | Atlas V Rack — integrated 8-point mounting, KLICKfix compatible, Thule Yepp Maxi & Dash RM child seat compatible (no adapters) |
| Clip system | Magnetix 3.0 |
| Rider height range | 147–195 cm (4'10"–6'5") |
| Frame sizes | One size |
Dimensions & Folding
| Folded size | 42×86×68.5 cm (16.5×33.9×27 in) |
| Fold time | ~10 seconds |
| Weight | 21.9 kg (48.3 lb) |
Extras
| Front light | Tern Valo Direct, 190 lumens |
| Rear light | Herrmans H-Trace, for eBike |
| Fenders | SplashGuard, stainless hardware |
| Chainguard | SKS Chainblade |
| Kickstand | Ursus, rear mount |
| Luggage socket | Yes |
| Bell | Aluminium |
Tern Vektron Q9 · Gen 3 · One Size · Satin Blue
