Tern - GSD P00 (Gen 3)

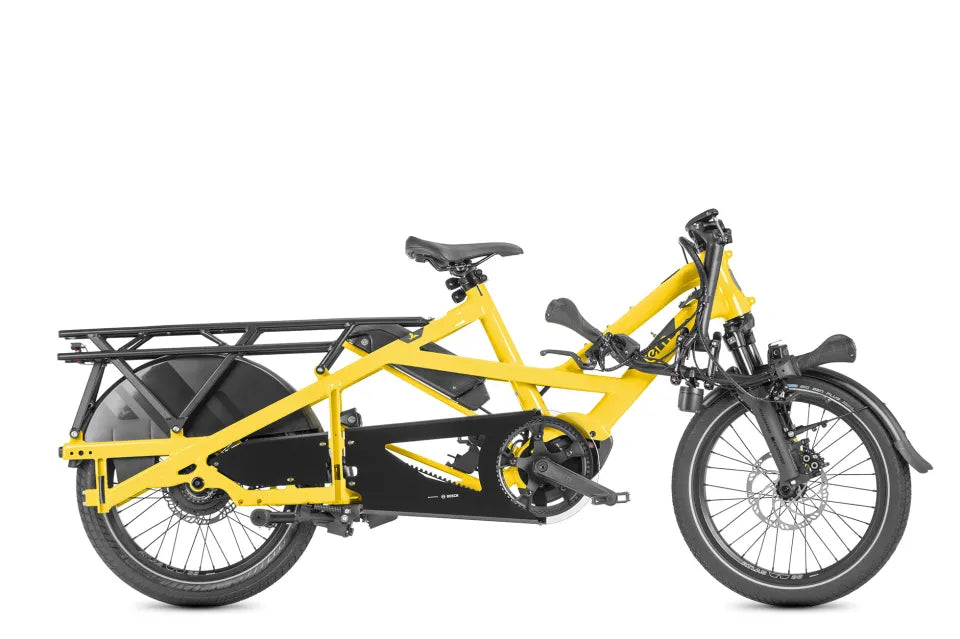

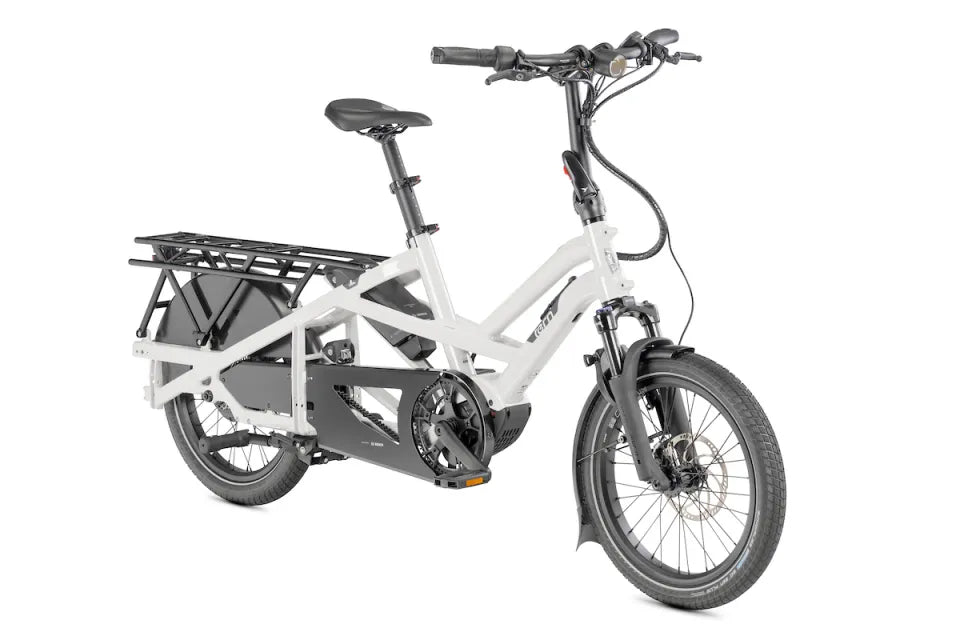

Tern GSD P00 Gen 3 – Smooth, Silent, and Built to Haul

The Ultimate Urban Cargo Solution

The Tern GSD P00 Gen 3 is a premium electric cargo bike designed to handle heavy loads with ease while providing a smooth and quiet ride. Equipped with a low-maintenance Gates belt drive and Enviolo continuously variable transmission, it's perfect for families, businesses, and anyone seeking a reliable alternative to a car for daily transportation.

Key Features

• Bosch Cargo Line Motor: Delivers up to 85 Nm of torque with 400% pedal assist, ensuring powerful performance even under heavy loads.

• Bosch PowerPack 500 Battery: Provides a range of 40–102 km (25–63 miles) on a single charge, suitable for daily commutes and errands.

• Dual-Battery Ready: Optional second battery slot allows for extended range up to 207 km (129 miles).

• Enviolo Heavy-Duty Hub: Offers a 380% continuously variable gear range, allowing for seamless shifting even under load or at a standstill.

• Gates Carbon Drive CDX Belt: Provides a clean, quiet, and virtually maintenance-free riding experience.

• Magura MT5 4-Piston Hydraulic Disc Brakes: Ensure strong and consistent stopping power, even under heavy loads.

• Adjustable Cockpit: Tool-free adjustable stem and seatpost accommodate riders from 150 to 200 cm (4'11" to 6'7"), making it ideal for shared family use.

• Robust Cargo Capacity: Rated for a maximum gross vehicle weight of 210 kg (463 lb), with the rear rack supporting up to 100 kg (220 lb), allowing for two child seats or substantial cargo.

• Compact Design: At 186 cm (73.2 inches) in length, it offers the convenience of a standard bicycle footprint, facilitating easy storage and navigation through tight urban spaces.

• Safety-Certified: Frame and fork are tested to meet the German DIN 79010 cargo bike safety standard, ensuring durability and rider confidence.

Specifications

• Frame: Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified

• Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 50 mm travel, EFBE approved

• Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

• Battery: Bosch 500 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 500 Wh max capacity

• Display: Bosch Purion

• Range: 500 Wh: 40–102 km (25–63 mi); 1000 Wh: 82–207 km (51–129 mi)

• Drivetrain: Enviolo Heavy-Duty continuously variable transmission

• Crankset: Tern GSD, Gates CDX CNC machined beltring

• Cassette: Gates CDX, precision CNC machined cog

• Chain: Gates Carbon Drive CDX belt

• Brakes: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads

• Brake Levers: Magura MT5 e-stop, hydraulic, with brake light sensor

• Wheels: Tern Atlas, heavy-duty cargo wheels with ultra-wide 36 mm, dual reinforced joint rims

• Tires: Front: Schwalbe Big Ben Plus, Green Guard puncture protection, Reflex; Rear: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex

• Lighting: Front: Ignis Headlight, Ultra-wide low beam; Rear: RearStop Brake Light, Always on

• Fenders: Front: Aluminum; Rear: GSD wheel guard

• Kickstand: Atlas Lockstand Gen 2, AutoLock with remote unlock, patented technology

• Weight: Approximately 35.75 kg (78.8 lb)

Ideal For

• Family Transport: Safely carry up to two children with compatible child seats and accessories.

• Urban Commuting: Navigate city streets efficiently while carrying groceries, work gear, or other essentials.

• Eco-Friendly Lifestyle: Reduce reliance on cars for short to medium trips, contributing to a greener environment.

The Tern GSD P00 Gen 3 stands out as a practical solution for those seeking a reliable, versatile, and compact electric cargo bike. Its thoughtful design and robust features make it a valuable addition to any urban lifestyle.
