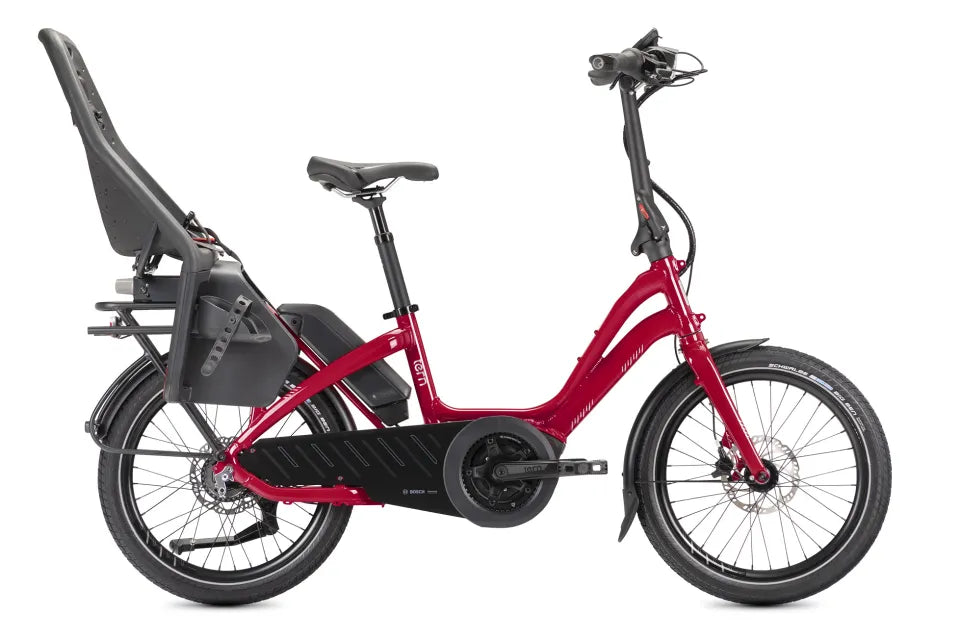

Tern - NBD P8i
Tern - NBD P8i
Prix habituel
$4,775.00 CAD
Prix habituel
$0.00 CAD
Prix promotionnel
$4,775.00 CAD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Stock bas : 1 restant(s)
Impossible de charger la disponibilité du service de retrait
What Makes it a P8i?
- Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
- Bosch PowerPack 400 powers long trips, commutes, and journeys
- Shimano® Nexus 8-speed internal hub
- Shimano hydraulic disc brakes for reliable stopping power—even when carrying cargo and riding fast
NBD Highlights
- Ultra-low 39 cm (15.4”) standover height means gentle, low steps are all that’s required to get on and go
- Ultra-low center of gravity improves balancing and maneuvering when riding with kids through parks and narrow streets
- Fits riders 147 - 190 cm (4'10" - 6'3")
- Gaia Rack is certified to carry up to 27 kg (60 lbs) and works with many child seats
- Proven safe and reliable: frame and fork have undergone the EFBE Tri-Test to the 140 kg (309 lbs) Maximum Gross Vehicle Weight
SPECIFICATIONS
GENERAL INFO
SPEEDS:
1 x 8
WEIGHT:
23.7 kg (52.2 lb)
GEAR INCHES:
35" - 85" (2.78 - 6.81 m)
FOLDING SIZE:
38 × 156 × 79 cm (15 × 61.4 × 31.1 in)
FOLDING TIME:
5 sec
FRAME SIZES:
One size
DISTANCE: SEATPOST TO HANDLEBAR:
45 - 52 cm (17.7 - 20.5 in)
DISTANCE: SADDLE TO PEDAL:
70 - 100 cm (27.6 - 39.4 in)
SUGGESTED RIDER HEIGHT:
147 - 190 cm (57.9 - 74.8 in)
MAX GROSS VEHICLE WEIGHT:
140 kg (308.6 lb)
MAX RIDER WEIGHT:
120 kg (264.6 lb)
FRAME
FRAME:
Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 140 kg
FORK:
Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 140 kg
COCKPIT
HANDLEPOST:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm
STEM:
Tern Andros, adjustable, forged construction, patented technology
HEADSET:
Tern Flux by FSA, cartridge bearings, Physis integrated
HANDLEBAR:
Tern Sweep, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE:
Ergon
SADDLE:
Tern Upright by Velo
SEATPOST:
Tern RideEasy Suspension, 34.9 mm
SEATPOST CLAMP:
Tern Collar
BRAKES
FRONT BRAKE:
Shimano, hydraulic disc
REAR BRAKE:
Shimano, hydraulic disc
BRAKE LEVERS:
Shimano, hydraulic disc
BRAKE CABLE & HOUSING:
Shimano, hydraulic disc
WHEELS
FRONT HUB:
Shimano disc
REAR HUB:
Shimano Nexus 8
SPOKES & NIPPLES:
Stainless steel
RIMS:
Kinetix Comp, for disc
TIRES:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
TRANSMISSION
SHIFTER(S):
Shimano 8 spd.
CRANKSET:
Tern NBD custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL:
16T
CHAIN:
KMC for eBike, EPT corrosion resistant coating
PEDALS:
MKS Platform, Tern custom design
SHIFTER CABLE & HOUSING:
Shimano
E-SYSTEM
MOTOR:
Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY:
Bosch PowerPack 400
DISPLAY:
Bosch Intuvia, 4 mode selectable, walk assist
RANGE:
54 -108 km (34-67 mi)
CHARGER:
Bosch Standard Charger
BELLS & WHISTLES
BELL:
Aluminum
CHAINGUARD:
Tern Custom, full chain cover
KICKSTAND:
Ursus, rear mount
LUGGAGE SOCKET:
Combo Mount
FRONT LIGHT:
Tern Valo Direct, 190 lumens
REAR LIGHT:
Herrmans
FENDERS:
SplashGuard, stainless hardware
RACK(S):
Gaia Rack, 27 kg capacity, Vertical Parking
FRAME LOCK:
ABUS, keyed-alike with Bosch battery
