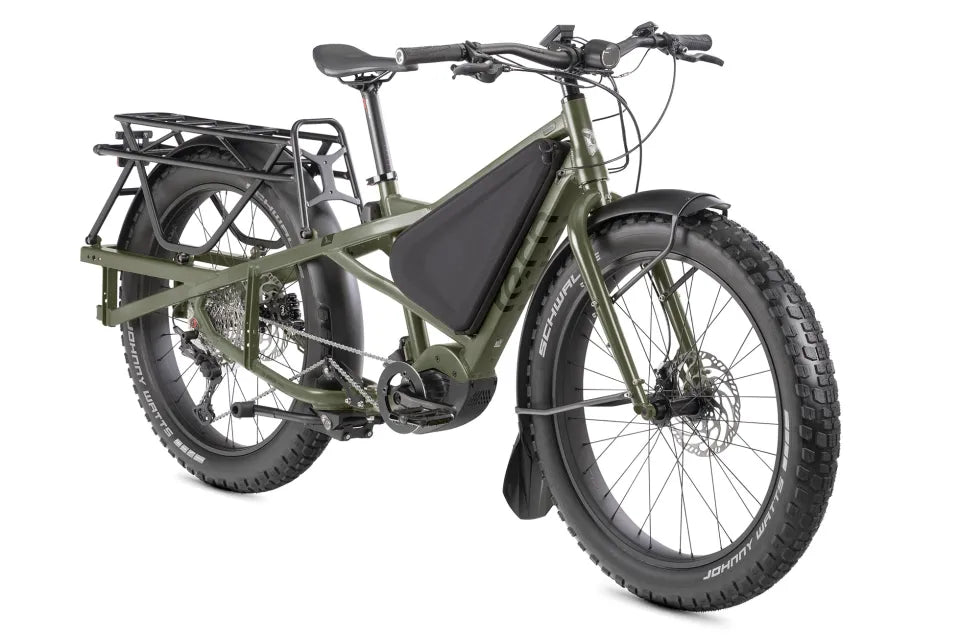

Tern Orox S12 27.5" Adventure Cargo E-Bike

Conquer Any Terrain with Confidence

The Tern Orox S12 27.5" is engineered for riders seeking a robust and versatile electric cargo bike capable of handling diverse terrains and heavy loads. Whether you're navigating city streets, rugged trails, or embarking on long-distance adventures, the Orox S12 delivers exceptional performance and reliability.

Key Features

• Bosch Performance Line CX Motor: Provides up to 85 Nm of torque, ensuring powerful assistance for steep climbs and heavy cargo.

• Dual-Battery Ready: Comes with a 725 Wh battery, expandable to 1,450 Wh for extended range (up to 292 km / 181 mi) .

• Shimano Deore XT 1x12-Speed Drivetrain: Offers precise and reliable shifting across a wide gear range .

• Magura MT5 4-Piston Hydraulic Disc Brakes: Delivers strong and consistent stopping power, even under heavy loads .

• 27.5" x 4" Schwalbe Johnny Watts Tires: Ensures excellent traction and comfort on various surfaces .

• Bosch Kiox 300 Display: Features a color screen with LED remote and connectivity to the Bosch eBike Flow app for ride customization and tracking .

• Integrated Lighting: Includes a 700-lumen Ignis headlight with high/low beam and an always-on rear brake light for increased visibility .

• Atlas X Rear Rack: Supports up to 100 kg (220 lb), suitable for carrying cargo or a passenger .

• Adjustable Fit: Available in Medium and Large sizes to accommodate riders from 155 to 195 cm (5'1" to 6'5") .

Specifications

• Frame: Tern Orox, 6061-AL, EFBE Tri-Test approved for 210 kg (462 lb) max gross vehicle weight .

• Fork: Atlas X, butted chromoly steel, EFBE tested and approved .

• Handlebar: Level Nine, AL-7050, 800 mm, riser, eMTB approved .

• Stem: Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified .

• Grips: Ergon ergonomic grips .

• Saddle: Ergon SM, E-Mountain Sport, CrMo Rail .

• Seatpost: Syntace P6 AL7050, 34.9 mm .

• Brakes: Magura MT5 hydraulic disc, 203 mm rotors .

• Rims: Tern Atlas X, custom doublewall construction .

• Tires: Schwalbe Johnny Watts, 27.5" x 4" .

• Shifter: Shimano Deore, 1 x 12-speed .

• Rear Derailleur: Shimano Deore XT Shadow+ .

• Crankset: Tern Orox custom .

• Cassette: Shimano 10-51T .

• Chain: KMC 12-speed eBike chain .

• Pedals: MTB, non-slip .

• Front Hub: Tern Atlas X, Boost Thru-Axle with integrated Tern tool .

• Rear Hub: Tern Atlas X, Boost Thru-Axle, Syntace X-12 standard .

• Lighting: Ignis Headlight (700 lumens), LED rear light with brake light .

• Fenders: Aluminum heavy-duty mudguards .

• Kickstand: Atlas Kickstand XL, cargo ready .

• Weight: Medium: 37.1 kg (81.8 lb) .

The Tern Orox S12 27.5" is an excellent choice for those seeking a high-performance, durable, and versatile electric cargo bike. Its robust design and smart features make it ideal for daily commuting, off-road adventures, or transporting heavy loads with ease.
