Tern - Verge D9

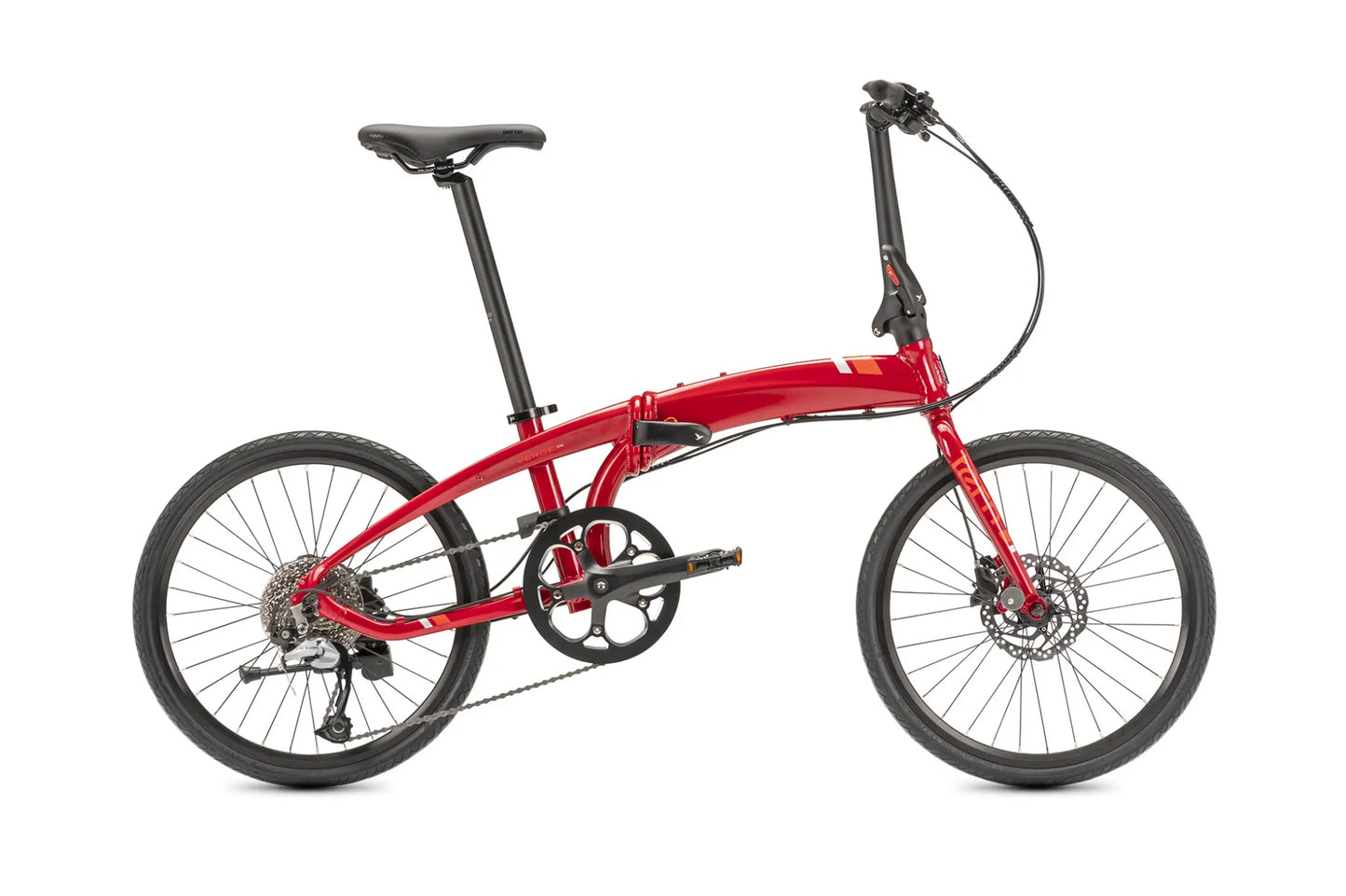

Tern Verge D9 Folding Bike

High-Performance Folding Bike for Urban Commuters

The Tern Verge D9 is engineered for riders seeking speed, comfort, and portability. With its 451 racing wheels, T-Tuned™ geometry, and a wide-range 1x9 drivetrain, it delivers a ride quality comparable to full-sized bikes while maintaining the convenience of a compact fold.

Key Features

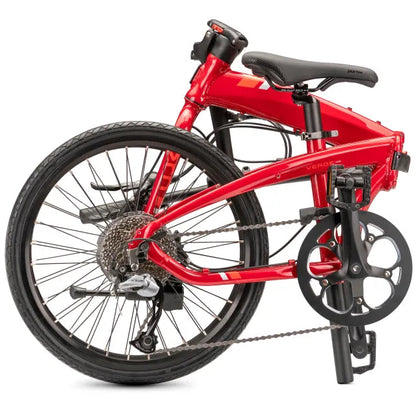

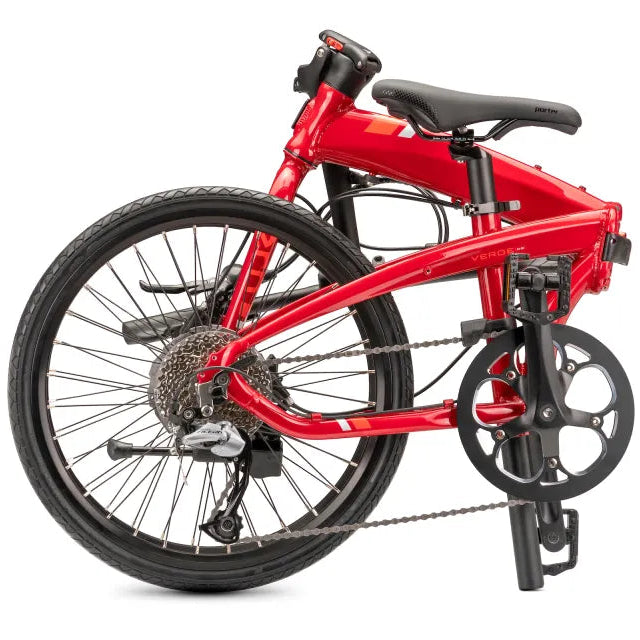

• Quick Folding: Folds down in just 10 seconds to a compact size of 44 × 80 × 74 cm (17.3 × 31.5 × 29.1 in), making it easy to store under desks or in small apartments.

• Lightweight Design: Weighs only 12.8 kg (28.2 lb), ensuring effortless carrying and transport.

• Versatile Gearing: Equipped with a 1x9-speed Shimano Acera Shadow RD drivetrain, providing a gear range of 30"–97" for tackling various terrains.

• Adjustable Fit: The Syntace VRO adjustable stem and Tern Physis 3D handlepost allow for tool-free riding position adjustments on the fly, accommodating riders from 142 to 190 cm (4'8" to 6'3").

• Durable Build: Features a Tern Verge hydroformed aluminum frame with OCL+ joint and a hi-tensile steel fork for stability and longevity.

• All-Weather Ready: Shimano hydraulic disc brakes ensure reliable stopping power in wet and dry conditions.

• Comfortable Ride: CST 37-451 tires with light skinwall and 60 tpi ensure a smooth ride over city streets.

• Urban Ready: Includes the Tern Porter™ saddle with a patented GripPad design for easy shoulder-mounted bike carrying.

Specifications

• Frame: Tern Verge, hydroformed aluminum, OCL+ joint, 3 patented technologies

• Fork: Integrated, hi-tensile steel, for disc

• Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm

• Stem: Syntace VRO, adjustable, Built for Tern

• Headset: Flux, cartridge bearings, Physis integrated

• Handlebar: Flat bar, 6061-AL

• Grips: Velo ergonomic, lock-on

• Saddle: Tern Porter, patented GripPad design

• Seatpost: SuperOversize, 6061-AL, micro-adjust clamp

• Brakes: Shimano hydraulic disc

• Brake Levers: Shimano hydraulic disc

• Rims: Doublewall aluminum

• Tires: CST, 37-451, light skinwall, 60 tpi

• Shifter: Shimano, trigger, 1 x 9 speed

• Rear Derailleur: Shimano Acera, Shadow RD

• Crankset: Forged 6061-AL, 53T

• Cassette: 11-36T, 9 spd

• Chain: KMC 9 spd

• Pedals: Folding, alloy body

• Suggested Rider Height: 142 - 190 cm (4'8" - 6'3")

• Max Gross Vehicle Weight: 120 kg (264.6 lb)

• Max Rider Weight: 105 kg (231.5 lb)

The Tern Verge D9 is an excellent choice for those seeking a reliable, easy-to-store, and high-performance folding bike for daily commutes or leisurely rides around the city.
